Product Introduction

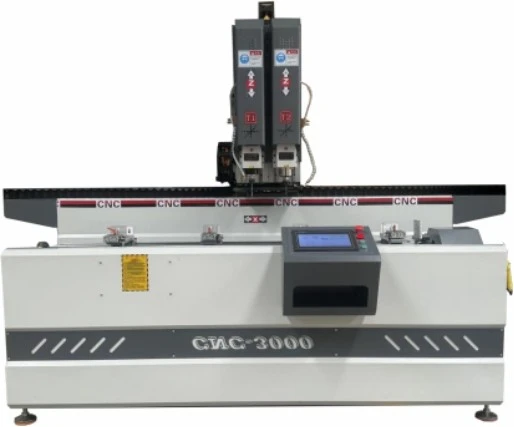

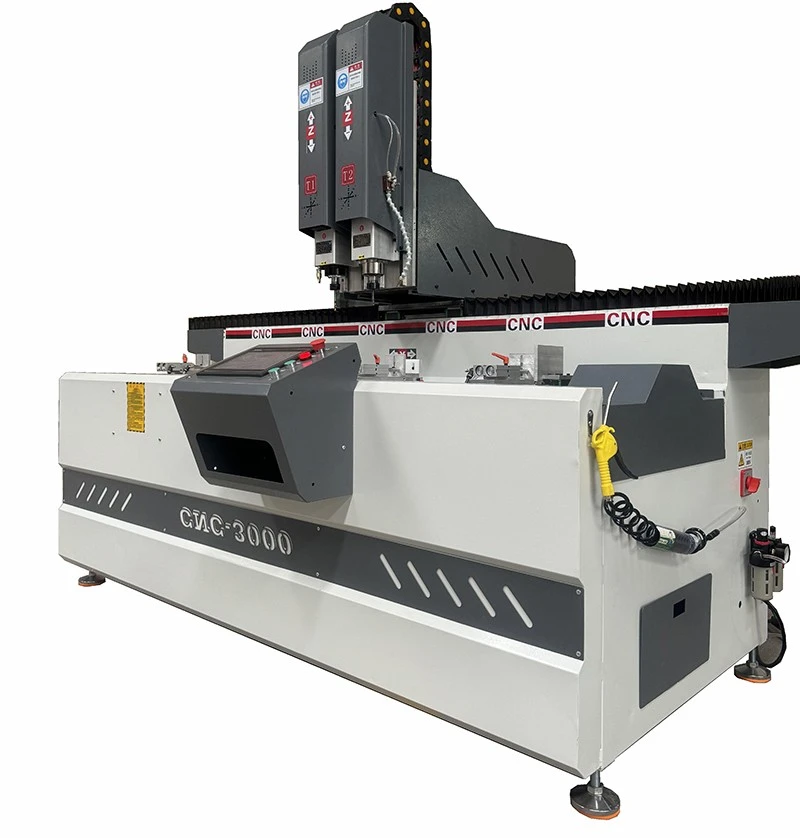

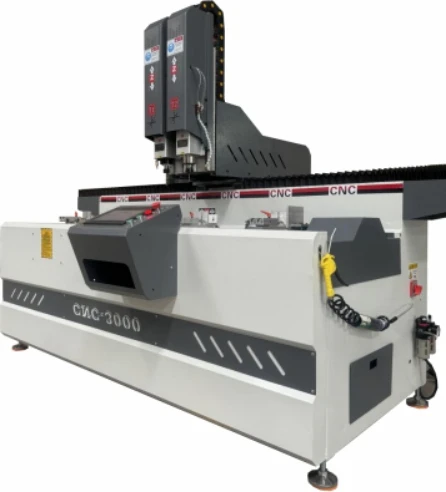

This equipment is a 3-meter dual-spindle flip-type CNC engraving machine. Through its dual-spindle and dual-station structure, it achieves parallel operation of processing and loading/unloading. It is suitable for furniture manufacturing, cabinet production, door and window processing, advertising signage, and wood composite material processing industries.
Core Technological Advantages
Dual-Head Independent Machining System: Dual-spindle independent servo control allows for simultaneous or separate task processing. Simultaneous operation of both spindles reduces waiting time and increases output per unit time (approximately 60%–120% increase, based on continuous production).
Flip Table Continuous System: Dual worktables operate alternately, with one side processing while the other is loading and unloading, enabling non-stop production. Significantly reduces clamping time and improves equipment efficiency.
High-Rigidity Machine Bed: Utilizes a thick-walled steel structure with annealing treatment to release internal stress. Ensures no deformation during long-term high-speed operation, improving processing stability and accuracy consistency.
Precision Motion System: Employs industrial-grade linear guides and a servo system, combined with optimized control algorithms, to achieve high-precision positioning and stable high-speed machining, reducing errors and vibration.
Industrial Control System: Supports DSP/Syntec/Mach3 systems and is compatible with standard G-code. Supports breakpoint resume machining, is easy to operate, and adapts to different factory environments.
Technical Specifications
|
Item |
Specification |
|
Working Area |
3000 × 2000 × 200 mm |
|
Spindle Power |
4.5 / 6 / 9 kW (Optional) |
|
Spindle Speed |
0 – 24,000 rpm |
|
Max Speed |
60,000 mm/min |
|
Working Speed |
30,000 mm/min |
|
Accuracy |
±0.02 mm (laser calibrated) |
|
Drive System |
Yaskawa / Delta Servo |
|
Guide Rail |
HIWIN / PMI |
|
Control System |
DSP / Syntec / Mach3 |
|
Table Type |
Flip Table + Vacuum / T-slot |
|
Vacuum Pump |
5.5–7.5 kW (Optional) |
|
Voltage |
220V / 380V / 415V |
|
Air Pressure |
0.6–0.8 MPa |
Key Components
Spindle System
Industrial-grade air-cooled/water-cooled spindle, supporting long-term continuous operation, suitable for wood and composite material processing.
Servo System
Employs an industrial servo system to improve operational stability and positioning accuracy.
Linear Guide System
High-precision linear guides ensure processing stability at high speeds.
Electrical System
Industrial-standard electrical components, adaptable to international industrial environments.
Quality Control
Each machine undergoes the following tests before leaving the factory:
Laser accuracy testing and calibration
Spindle dynamic balancing test
72-hour continuous operation test
Full system functional test
Compliant with ISO 9001 production management standards, CE compliance support available.
Application Industries
Furniture Manufacturing
Used for batch cutting and structural processing of panel furniture, improving production efficiency.
Cabinet Production
Used for cabinet door panel processing, improving batch consistency and accuracy.
Door & Window Industry
Used for door and window structural component processing, ensuring repeatability accuracy.
Woodworking Industry
Suitable for mixed customized and batch production.
Customization & OEM Support
This equipment supports multi-dimensional industrial customization solutions to adapt to the needs of different countries and production lines.
The worktable size and structural layout can be customized to match different factory production line configurations.
The spindle power and control system can be selected according to the processed materials and production requirements.
Supports multiple international industrial voltage standards (220V / 380V / 415V).
OEM branding, equipment exterior color, and control interface customization services are available.
After-Sales Service
Company Strengths
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q: What materials is this equipment primarily suitable for processing?
A: This equipment is suitable for batch processing of wood, MDF, PVC, acrylic, and composite boards, meeting the needs of furniture manufacturing and industrial-grade continuous production.
Q: What are the practical advantages of a dual-spindle structure compared to a single-spindle structure?
A: Dual spindles can simultaneously perform processing tasks or handle different toolpaths, reducing waiting time and increasing output per unit time, making it suitable for high-capacity production lines.
Q: What is the core function of the flip-plate system?
A: The flip-plate structure enables alternating operation of processing on one side and loading/unloading on the other, reducing downtime and improving continuous operation efficiency and production line cycle time.
Q: How stable is the equipment under continuous operation?
A: The equipment adopts a heavy-duty steel structure body and an industrial-grade transmission system, and has undergone 72 hours of continuous operation testing, meeting the needs of long-term stable production under multi-shift systems.
Q: What processing accuracy can be achieved?
A: The standard equipment achieves a repeatability accuracy of ±0.02mm, and undergoes factory testing via a laser calibration system to ensure consistency in batch processing.
Q: Does the equipment support different national voltages?
A: Supports industrial voltage standards such as 220V / 380V / 415V, and can be customized according to the customer's country.
Q: Is the control system easy to learn and operate?
A: The equipment supports DSP, Syntec, or Mach3 systems, with a simple interface and supports standard G-code import, allowing new operators to quickly get started.
Q: How to get support if the equipment malfunctions?
A: Provides remote engineer support services, enabling online fault diagnosis and parameter adjustment, and providing detailed maintenance guidance.
Q: What is the typical delivery time?
A: Standard models have a delivery time of approximately 15–30 days; customized models typically take 30–45 days depending on the complexity of the configuration.
Q: Does the equipment support customization and OEM brand cooperation?
A: It supports customized equipment structure, functional configuration adjustments, and OEM branding services, suitable for wholesalers and brand distributors.
