Product Introduction

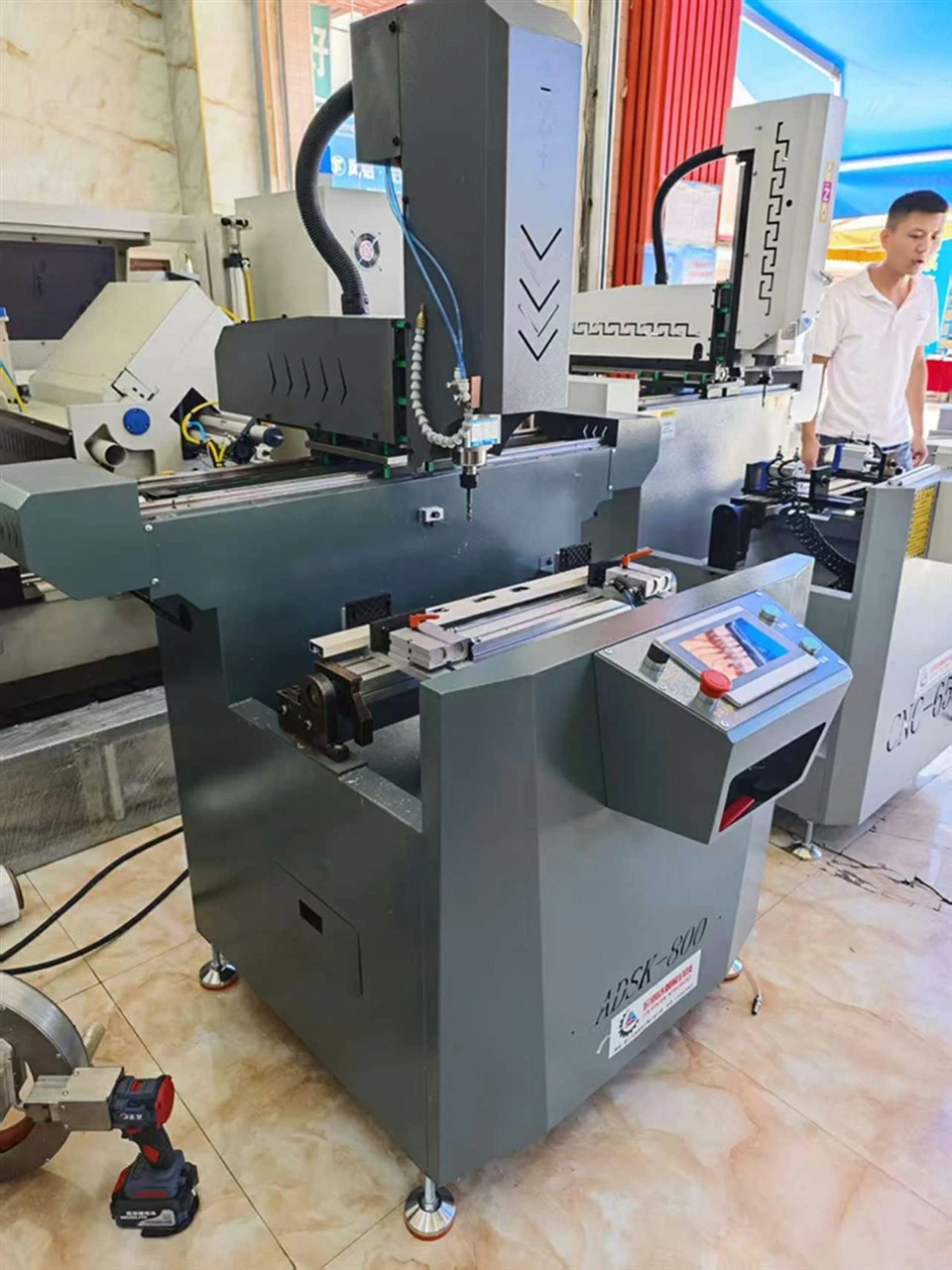

This equipment is an 800mm stroke, three-station tilting CNC machining center, designed specifically for multi-shift continuous production. Through its three-station parallel structure, machining, clamping, and unloading are synchronized, reducing spindle downtime.
Core Technology Advantages
3-Station System
Three independent workstations operate in separate zones, enabling simultaneous machining and loading/unloading, eliminating equipment downtime.
Precision Stroke
Employs HIWIN/PMI guideways + ball screws + fully closed-loop servo control to reduce backlash errors.
Rigid Frame
Thickened steel structure + heat aging treatment eliminates internal stress. Reduces long-term deformation and ensures batch machining stability.
Servo System
Employs Yaskawa/Delta servos + look-ahead control algorithms. Reduces vibration and impact, improving surface finish and tool life.
Technical Specifications
|
Item |
Specification |
|
Working Travel |
800 × 600 × 200 mm |
|
Spindle Power |
3.0 / 4.5 / 6.0 kW |
|
Spindle Speed |
18,000–24,000 rpm |
|
Rapid Speed |
24,000 mm/min |
|
Cutting Speed |
15,000 mm/min |
|
Positioning Accuracy |
±0.02 mm (ISO 230-2) |
|
Repeat Accuracy |
±0.01 mm (ISO 230-2) |
|
Control System |
Syntec / NC Studio / WEIHONG |
|
Servo System |
Yaskawa / Delta |
|
Linear Guide |
HIWIN / PMI 30mm |
|
Electrical Parts |
Schneider / Omron |
|
Power Supply |
380V 3Phase |
|
Machine Weight |
~1600 KG |

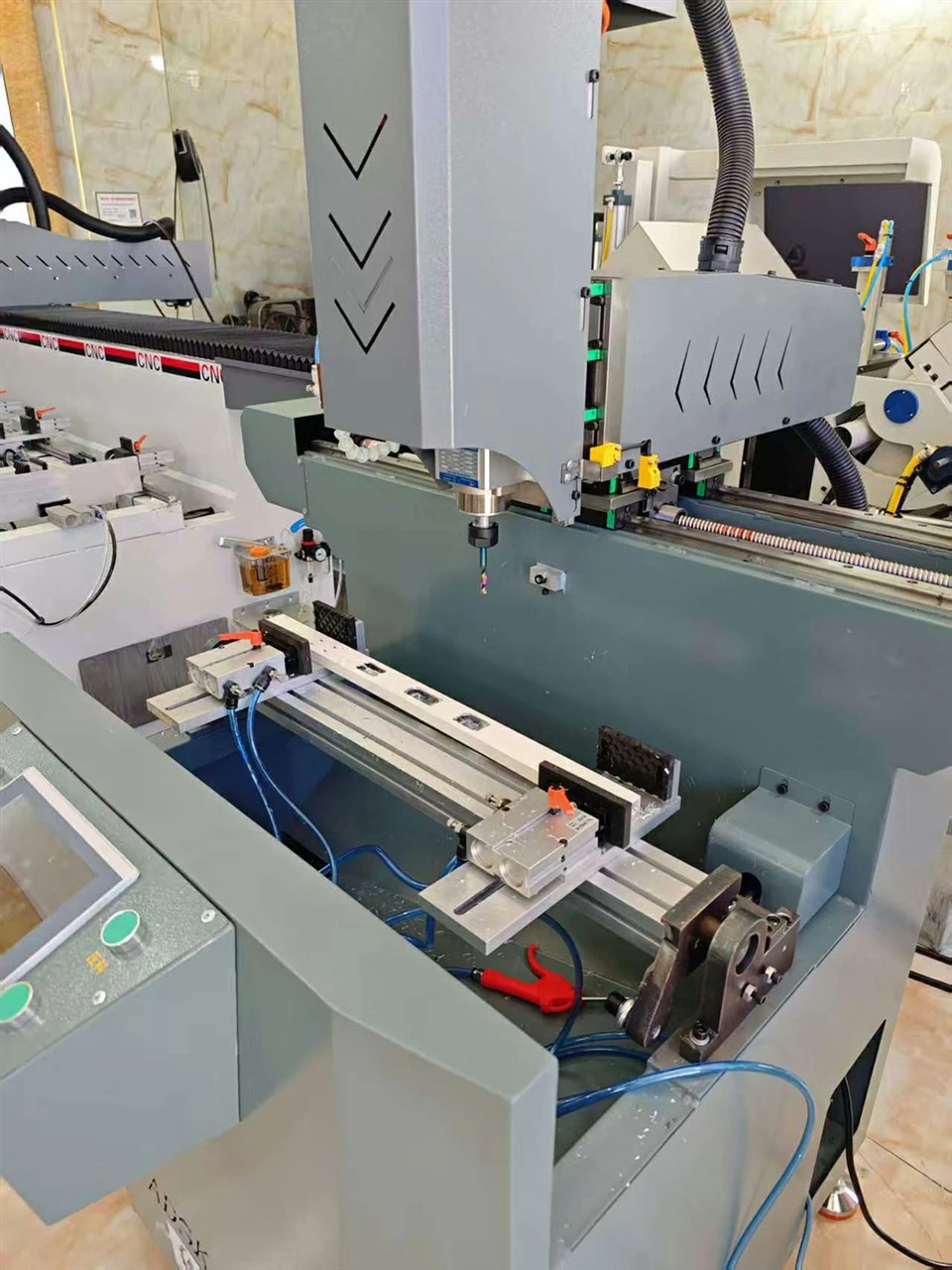

Machine Structure
Bed Frame
Thickened steel structure + heat aging treatment reduces the risk of deformation.
Gantry
High-rigidity structural design enhances stability during high-speed operation.
Spindle
Industrial high-speed spindle, low vibration, suitable for multi-material machining.
Control System
Supports multi-axis linkage + path look-ahead control.
Guide Rail
HIWIN/PMI guide rails ensure long-term accuracy stability.
Electrical System
Industry-standard wiring, separation of strong and weak current circuits, improves stability.
Quality Control & After-Sales Support
Laser Precision Inspection: Each machine uses a Renishaw laser interferometer for full-stroke X/Y/Z axis inspection and compensation, covering straightness and positioning errors.
48-Hour Run-in Test: The machine runs continuously for 48 hours, monitoring spindle and servo temperature rise and stability, and performing infrared thermal detection.
Traceability System: Adhering to ISO9001 standards, each machine has a unique serial number, and core components (spindle/servo/lead screw) are traceable through ERP.
Global After-Sales Support: Key components use international brands such as Schneider, Omron, and SMC; customers can procure replacement parts locally.
Standard Technical Documentation: Provides all-English manuals, videos, and electrical drawings, covering installation, commissioning, and maintenance.
Company Strengths
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q: Is this equipment suitable for long-term continuous production?
A: The equipment adopts an industrial-grade body structure and servo system design, supporting multi-shift continuous operation and suitable for 24/7 production environments.
Q: What are its core advantages compared to ordinary CNC machines?
A: The core advantage is its three-station parallel structure, which allows for simultaneous processing and loading/unloading, reducing downtime.
Q: How much can actual production capacity be increased?
A: Under standard sheet metal processing conditions, production capacity is typically increased by about 25%–40%, depending on the complexity of the process.
Q: Does the equipment require highly skilled operators?
A: No, after basic operation training, one operator can manage the equipment operation and loading/unloading process.
Q: How long does equipment installation take?
A: Standard installation and commissioning typically takes 2–3 days; complex configurations or automation solutions will take slightly longer.
Q: How is the equipment repaired if it malfunctions?
A: Key components use internationally recognized brand-name parts, and spare parts can be purchased locally; remote technical support is also provided for rapid troubleshooting.
Q: Does it support processing different materials?
A: Supports processing of wood, MDF, PVC, acrylic, and some soft metals. Parameters can be adjusted according to the process.
Q: Can the equipment be upgraded to an automated production line?
A: Supports integration with robotic arms or automatic loading/unloading systems to achieve semi-automatic or fully automatic production modes.
Q: How stable is the equipment's operation?
A: The machine body undergoes stress relief treatment and a 48-hour aging test before leaving the factory to ensure long-term operational stability.
Q: What about warranty and after-sales service?
A: A standard warranty period is provided, along with remote technical support, video guidance, and complete English technical documentation.
