Product Introduction

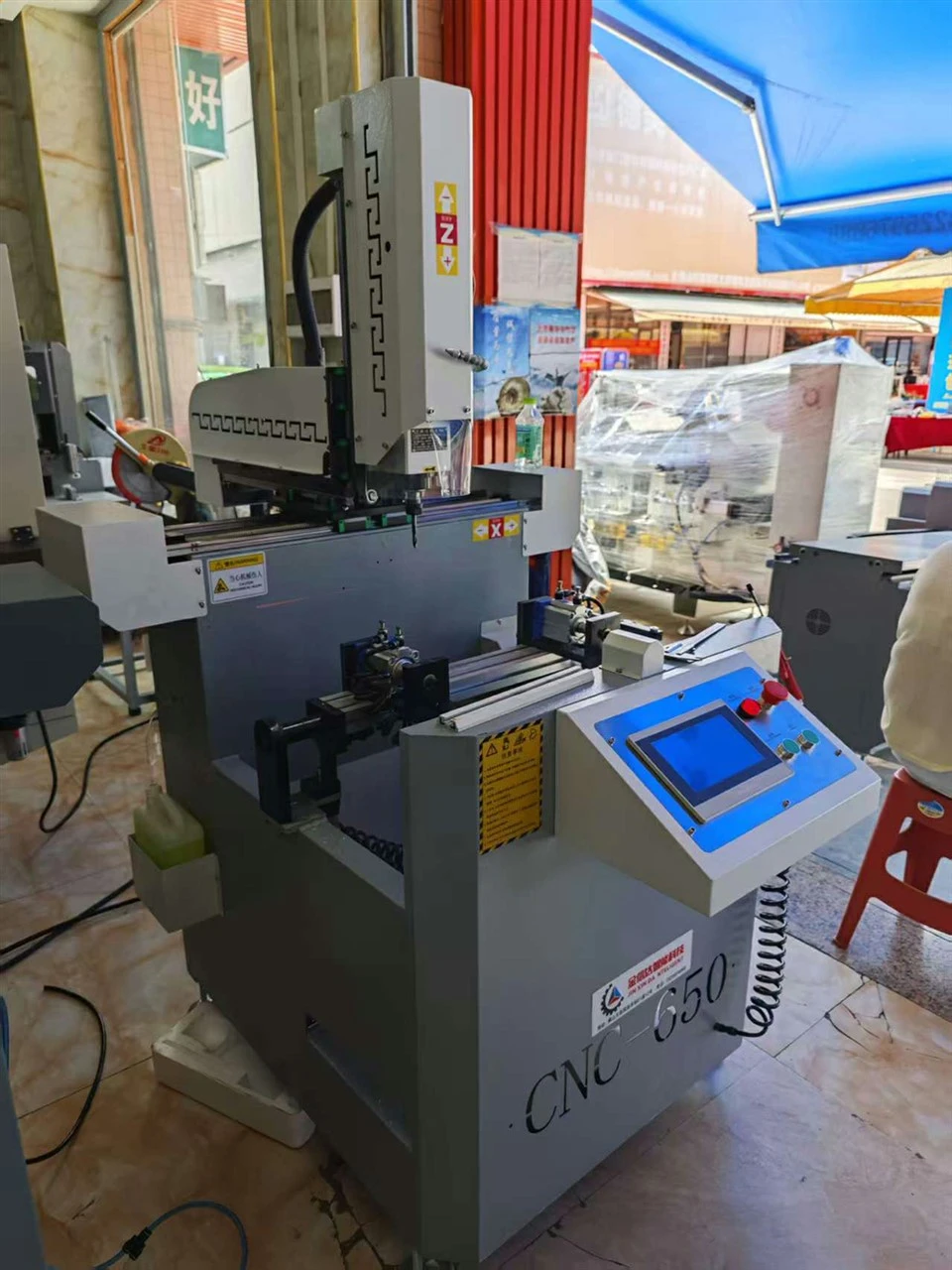

This equipment is a 650mm stroke, three-station tilting CNC machining center, suitable for OEM mass production scenarios. The three-station parallel structure enables simultaneous machining, loading/unloading, and tilting operations, reducing downtime and improving equipment utilization.
Core Technological Advantages
3-Station Pendulum System: A three-station independent circulation structure enables parallel operation of machining and loading/unloading. Reduces waiting time and increases productivity by approximately 30%–60%, suitable for continuous batch production.
650mm Heavy-Duty Stroke System: Utilizes a 650mm heightened stroke structure, combined with ball screws and linear guides, suitable for machining medium to large workpieces, maintaining stable accuracy and consistency over long strokes.
High-Rigidity Bed Structure: Thick-walled steel welded bed, treated with high-temperature tempering to relieve stress, improves long-term heavy cutting stability and ensures structural integrity.

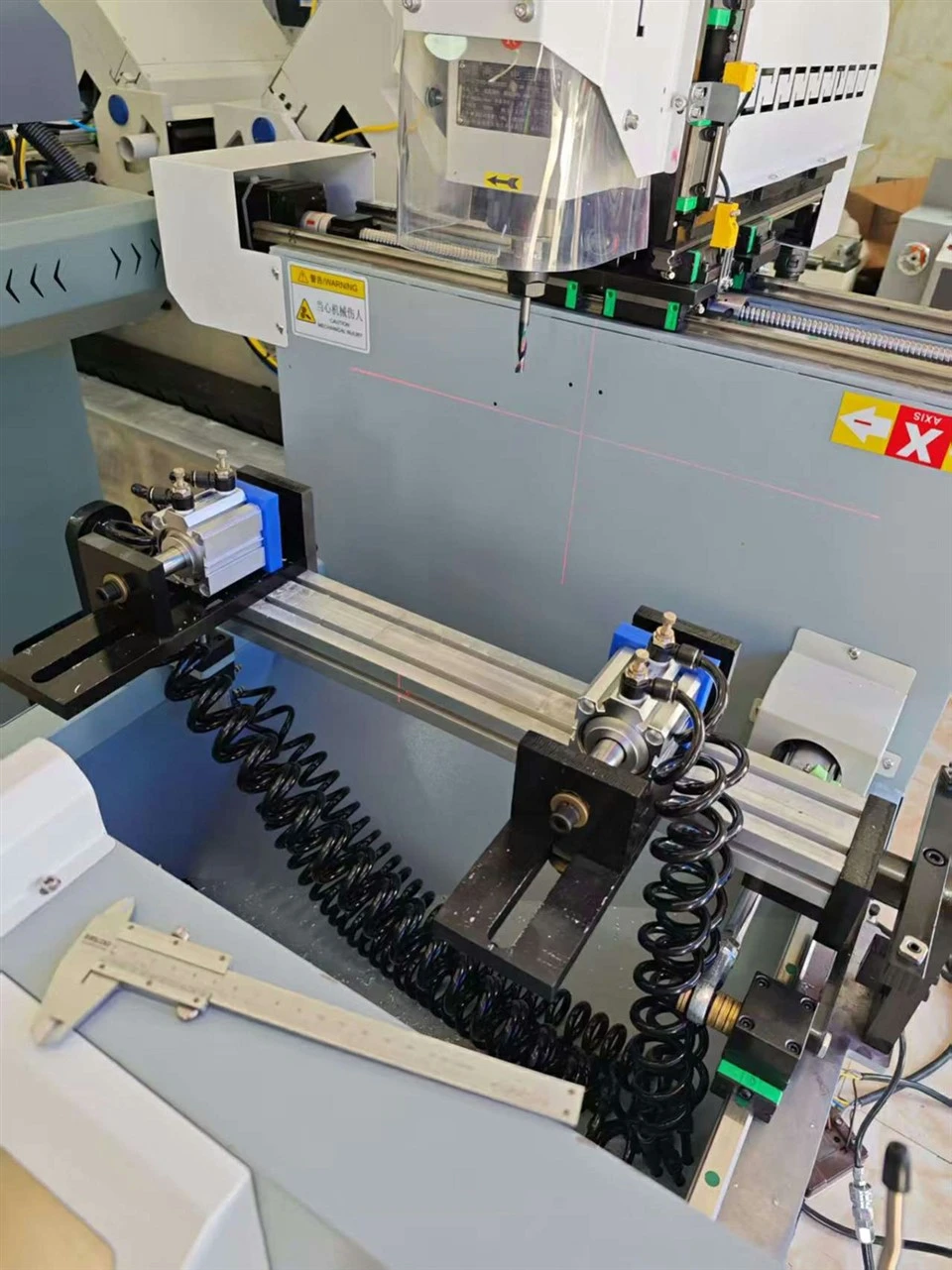

Tilting and Positioning System: Pneumatic/servo locking + mechanical limit structure achieves 180° precise tilting with a repeatability of ±0.02mm, supporting double-sided/three-sided machining.
Technical parameters
|
Item |
Specification |
|
Model |
3-Station 650mm CNC Router |
|
Stroke |
650 mm |
|
Stations |
3 Station Continuous System |
|
Spindle |
HSD / Air-cooled 3.5–9.0kW |
|
Control System |
Syntec / Osai / Mach3 |
|
Drive System |
Yaskawa / Delta Servo |
|
Pneumatic |
SMC / Airtac |
|
Speed |
30–40 m/min |
|
Accuracy |
±0.02 mm |
|
Repeatability |
±0.01 mm |
|
Frame |
Heavy-duty welded steel |
|
Table |
Vacuum / Fixture |
|
Power |
380V / 50Hz / Custom |
|
Certification |
CE / UL components available |
Quality Control
Laser Inspection: Calibrates all axes using a laser interferometer to ensure stable dynamic machining.
Spindle Testing: Performs full-speed dynamic balancing testing of the spindle to reduce vibration and extend its lifespan.
72-Hour Test: Runs the entire machine continuously for 72 hours to verify stability and reliability.
Customization Capabilities
Customized Worktable: Supports vacuum or fixture tables to adapt to different workpieces.
Control System: Supports Syntec, Osai, and Mach3, with multiple language options.
Customized Tooling: Customizable special fixtures and vacuum partitioning systems can improve efficiency for special workpieces.
Packaging and After-Sales Service
Packaging and Transportation: Reinforced steel structure wooden crate packaging, suitable for sea freight and multimodal transport.
Trade Terms: Supports FOB / CIF / DDP / EXW.
After-Sales Service: 12-month warranty, provides spare parts kits and remote technical support, 24-hour response.
Company Strengths
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q: What are the advantages of this 3-station CNC machine compared to a regular single-station machine?
A: The 3-station parallel structure allows for simultaneous processing and loading/unloading, reducing downtime and increasing overall productivity by approximately 30%–60%, making it more suitable for continuous mass production.
Q: What types of factories is this machine suitable for?
A: Suitable for furniture factories, cabinet door panel factories, OEM manufacturers, and mass-production non-metallic processing companies, especially suitable for export-oriented production lines with stable orders.
Q: Is the machine's accuracy stable under long-term operation?
A: It adopts a high-rigidity bed and ball screw drive structure, and through laser calibration and 72-hour operation testing, it ensures stable accuracy at the ±0.02mm level even under long-term continuous processing.
Q: How many operators are needed for one machine?
A: The machine supports a semi-automatic cyclic operation mode. One operator can manage 2–3 machines simultaneously, mainly responsible for loading/unloading and basic monitoring.
Q: Does it support 24-hour continuous production?
A: The equipment adopts an industrial-grade structural design and optimized heat dissipation system, supporting long-term continuous operation and suitable for high-load batch production environments.
Q: What is the typical delivery time?
A: The delivery time for standard configuration equipment is approximately 25–35 days. For non-standard customized or special configurations, the time is approximately 40–45 days.
Q: Is the equipment safe to transport? How is it packaged?
A: It is packaged in a reinforced wooden crate with a steel structure and treated for rust and moisture protection, suitable for sea, air, and multimodal transport, ensuring safe transportation.
Q: Does it support voltages and standards in different countries?
A: It supports multiple industrial voltages such as 380V, 220V, and 415V, and can be customized according to electrical standards of the target market.
Q: What are the after-sales service arrangements in case of equipment failure?
A: We provide remote video technical support, online diagnostic services, and a fast spare parts delivery system. Core components can be replaced via global logistics.
Q: Can equipment configurations be customized?
A: It supports customization of spindle power, table structure, control system and fixture system to adapt to the processing needs and production modes of different factories.
