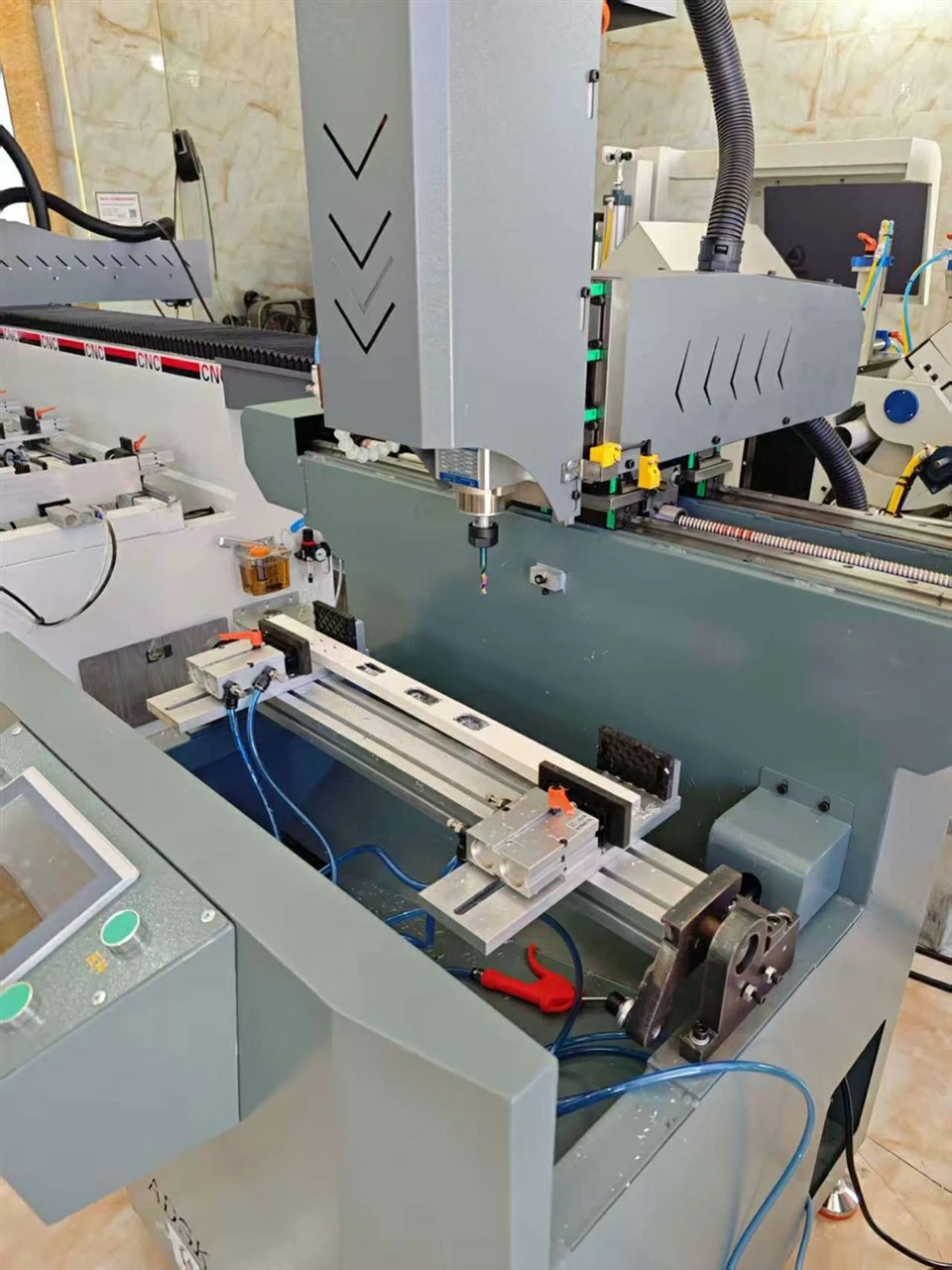

Product Introduction
The 800mm Flip CNC Machining Center is an industrial-grade double-sided flip CNC machine designed for OEM mass production, used for high-precision machining of sheet metal, aluminum, and composite materials.
Application Industries
Furniture Manufacturing
Used for batch processing of cabinet doors, side panels, and custom furniture structural components. Double-sided processing reduces flipping errors, improving batch consistency and assembly accuracy.
Door & Window Industry
Suitable for processing aluminum door and window frames and structural components. High-rigidity structure ensures dimensional stability during long-term operation, suitable for continuous production lines.
Industrial Components
Used for processing aluminum parts, engineering plastics, and medium-sized parts. Stable structure, suitable for long-term OEM mass production.
Core Technological Advantages
800mm High-Stroke System: 800mm extended stroke design reduces segmented processing, improving single-clamp integrity and processing efficiency.
Double-Sided Flip System: Dual-station flipping structure enables double-sided processing in a single clamping, reducing manual operation by 30%–50% and increasing production cycle time.
Heavy-Duty Frame Structure: Thickened steel structure body + stress-relief treatment improves rigidity and vibration resistance, ensuring long-term operational stability.
Linear Guide System: Employs the HIWIN/PMI guide rail system to enhance motion stability and maintain machining accuracy at the ±0.01mm level over long periods.
Servo Drive System: A high-response servo control system optimizes acceleration and deceleration performance, improving machining smoothness and surface quality.
Machine Structure
Flip System
Mechanical limit and pneumatic locking structure enables stable 180° flipping, ensuring consistent positioning during double-sided machining.
01
Working Table
High-strength steel structure enhances load-bearing capacity, suitable for machining large-size sheet metal and industrial parts.
02
Spindle System
Industrial-grade high-speed spindle supports stable cutting, improving machining efficiency and surface quality.
03
Clamping System
Vacuum and pneumatic clamping combination improves fixation stability and reduces machining displacement.
04
Control System
Supports Syntec/Siemens/DSP systems, adapting to different automated production needs.
05
Technical Specifications
|
Item |
Specification |
|
Working Stroke |
X/Y Customized, Z 800mm |
|
Machine Structure |
Double-Sided Flip CNC Center |
|
Spindle Power |
3.7KW / 5.5KW / 7.5KW / 9KW Optional |
|
Spindle Speed |
0–24000 rpm |
|
Guide Rail |
HIWIN / PMI Linear Guide |
|
Transmission |
Rack & Ball Screw |
|
Servo System |
Yaskawa / Delta |
|
Control System |
Syntec / Siemens / LNC |
|
Positioning Accuracy |
±0.01mm (ISO 230-2) |
|
Repositioning Accuracy |
±0.005mm (Mechanical Locking) |
|
Power Supply |
380V / 50Hz / Customizable |
Quality Control
Laser Calibration
Laser interferometer checks full-stroke accuracy and compensates for errors.
Ballbar Test
Ballbar test checks three-axis linkage accuracy and dynamic stability.
Spindle Test
Spindle dynamic balancing test reduces vibration and extends lifespan.
72H Load Test
72-hour load test verifies long-term stability.
OEM/ODM Customization Capabilities
Customizable stroke size
Selectable spindle power
Customizable control system
Adjustable table structure
Support for production line solution design
After-sales Service
Remote installation and commissioning support
Operation and programming training
12–24 month warranty
Global spare parts supply
24-hour technical support
Company Strengths
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q:Is this machine suitable for 24-hour continuous production?
A: This machine features a heavy-duty steel structure and an industrial-grade guide rail system, supporting long-term continuous operation. It is suitable for OEM mass production environments, but standard industrial maintenance is recommended to ensure long-term stability.
Q: Will the flip structure experience accuracy deviations during long-term use?
A: The flipping system uses a mechanical limit + pneumatic locking structure, and achieves physical locking through positioning cone pins, reducing backlash and maintaining stable, repeatable positioning accuracy over a long period.
Q: What is the biggest difference between this machine and a regular CNC router?
A: The core difference lies in the dual-station flipping structure and the industrial-grade rigid body. This design reduces manual flipping and repetitive clamping processes, making it more suitable for mass production rather than single-piece processing.
Q: Is it easy to operate? Is specialized technical personnel required?
A: The control system supports standard G-code and a graphical interface. Ordinary operators can be trained and are not heavily reliant on senior programming engineers.
Q: What materials can it process? Does it support metal processing?
A: The equipment is primarily used for processing wood, aluminum, engineering plastics, and composite materials. It can perform medium-to-high-speed cutting of aluminum parts, but is not recommended for processing heavy steel molds.
Q: How is the equipment's accuracy maintained after long-term operation?
A: Through an overall annealed stress-relief machine body, a precision guide rail system, and regular error compensation calibration, structural deformation and accuracy drift caused by long-term operation can be reduced.
Q: How can technical support be obtained if a malfunction occurs overseas?
A: Remote video diagnostic support is provided, along with a standardized English maintenance manual and electrical drawings. Key components are sourced from international brands for easy local replacement.
Q: Is the equipment tested before delivery?
A: All equipment undergoes a 72-hour load test before leaving the factory, including spindle dynamic balancing and three-axis linkage accuracy testing, ensuring stable delivery.
Q: s customization available to fit the factory's production line?
A: OEM/ODM customization is supported, including stroke dimensions, spindle power, control system, and fixture structure. Engineering configurations can be made according to actual production needs.
Q: How long does it typically take to recoup the cost of a single piece of equipment?
A: The payback period depends on the processing materials and capacity utilization. Generally, in a continuous OEM production environment, it takes about 6–12 months to recover the equipment investment.
