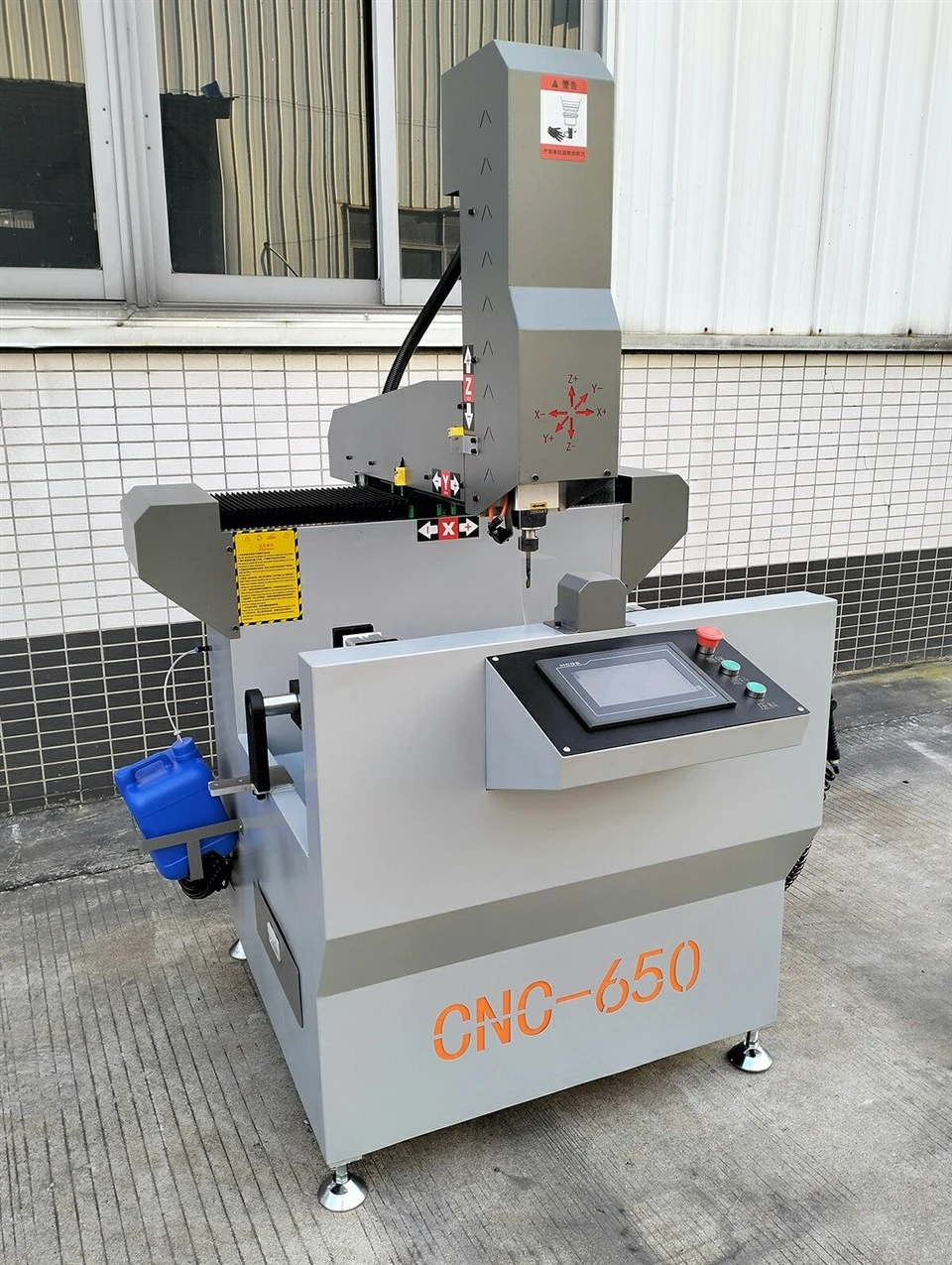

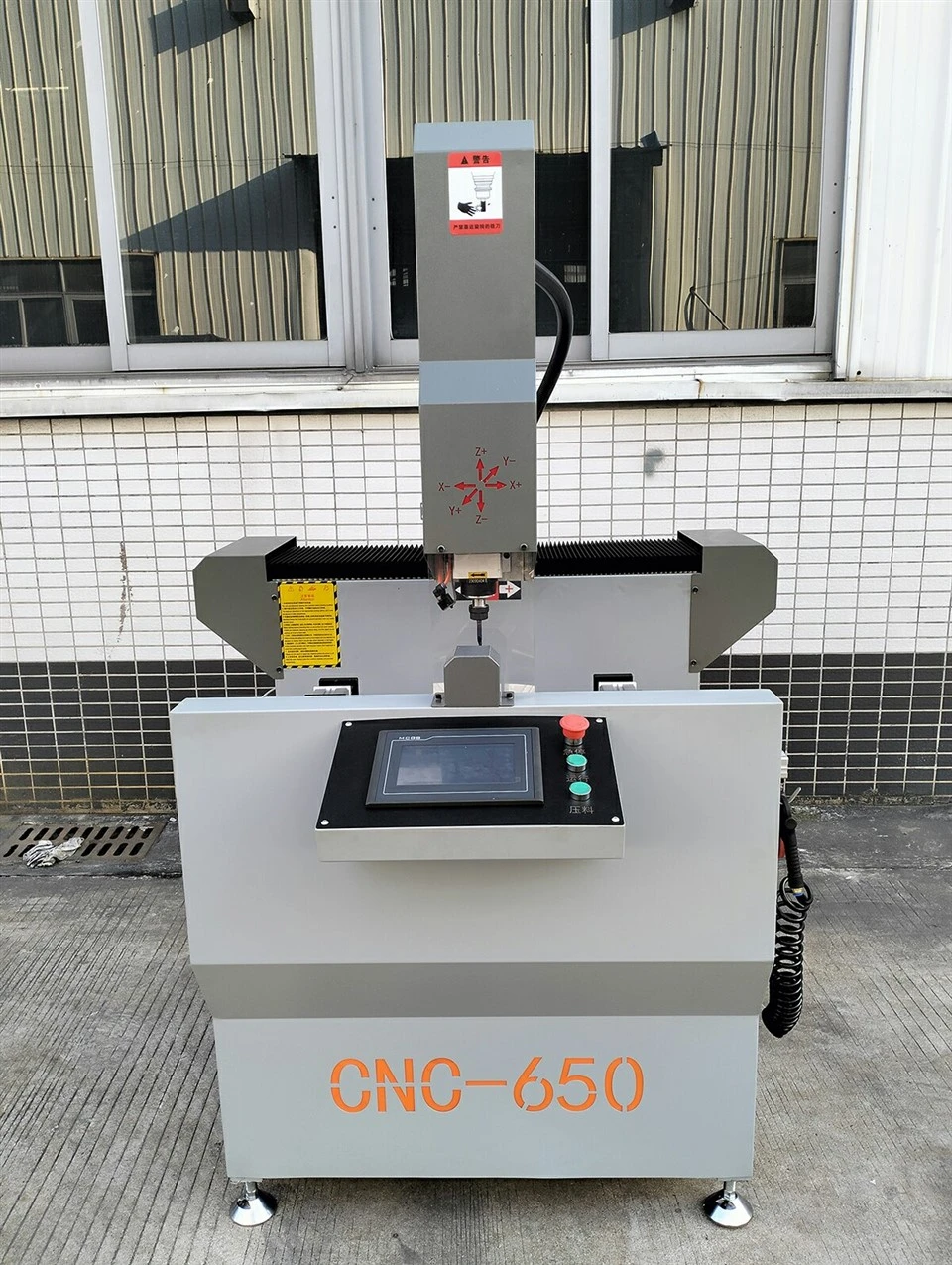

Product Introduction
This equipment is designed for aluminum profile processing plants, industrial component manufacturers, and OEM mass production companies worldwide. It is suitable for medium-to-high cycle standardized processing scenarios, enabling continuous automated cutting and processing of profiles of various specifications.
Core Advantages
Dual-Head Synchronous Machining System: Independent servo control for both cutting heads enables synchronous/mirror-like machining, transforming serial machining into a parallel structure and significantly shortening the single-piece machining cycle time.
650mm High-Precision Stroke Control: Utilizing HIWIN/PMI linear guides and a closed-loop servo system, it maintains a stable trajectory throughout the entire stroke, ensuring consistent machining dimensions.
Heavy-Duty Stress-Relieved Machine Body Structure: An integral welded steel structure with vibration aging treatment effectively reduces long-term deformation and improves structural rigidity and stability.
Servo Drive System: Yaskawa/Panasonic servo drive with S-shaped acceleration and deceleration control reduces impact vibration, improving cutting smoothness and tool life.
Repeatable Positioning Control: An encoder closed-loop feedback system reduces long-term cumulative errors and ensures consistency in batch processing.
Technical Specifications
|
Item |
Specification |
|
Model |
650mm Stroke Dual-Head CNC |
|
Stroke (X Axis) |
650 mm |
|
Y / Z Axis |
200 mm / 200 mm (optional) |
|
Spindle Power |
3.5 / 4.5 / 5.5 kW |
|
Spindle Speed |
18,000–24,000 RPM |
|
Position Accuracy |
±0.05 mm (aluminum test condition) |
|
Repeat Accuracy |
±0.03 mm |
|
Drive System |
Full closed-loop servo |
|
Linear Guide |
HIWIN / PMI |
|
Controller |
SYNTEC / LNC |
|
Power Supply |
220V / 380V / 415V / 480V |
|
Materials |
Aluminum / light metal / PVC |
Application Industries
Aluminum Doors, Windows and Curtain Wall Processing
Industrial Aluminum Profile Manufacturing
Photovoltaic Frame Production
OEM Metal Structural Component Processing
Mass Standardized Production Factory
Manufacturing Process
Body Structure
Overall steel structure welding + reinforced design, improving rigidity and deformation resistance.
01
Stress Relief Treatment
Vibration aging + heat treatment, reducing long-term structural deformation.
02
Precision Machining Surfaces
Key mounting surfaces are CNC machined in one go, ensuring assembly accuracy.
03
Assembly Calibration
Stage assembly + item-by-item alignment calibration, ensuring system consistency.
04
Factory Testing
Complete machine operation testing + cutting verification, ensuring stable delivery.
05
Quality Inspection
Laser precision inspection
Full-stroke trajectory calibration
Actual cutting test
Electrical safety inspection
72-hour continuous operation test
Customization Capabilities
Voltage customization (different national standards)
Stroke/size customization
Control system selection (Siemens / Mitsubishi / SYNTEC)
Tooling and fixture customization
OEM brand customization
Packaging and Delivery
Export-grade wooden crate packaging
Rust-proof + moisture-proof treatment
Shockproof fixing structure
Optimized container loading
FOB / CIF support
After-sales Service
Remote installation and commissioning support
Multilingual operation manuals
Global spare parts supply
Standard warranty service
Video technical support
Company Strengths
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q: Is this equipment suitable for high-volume continuous production?
A: Yes, the equipment adopts a dual-head parallel processing structure and an industrial-grade servo system, suitable for batch production scenarios with two shifts or 24-hour continuous operation, and can stably support high order volume demands.
Q: How much increase in capacity does the dual-head design specifically increase compared to a single-head machine?
A: Under the same processing conditions, the dual-head parallel structure can reduce the waiting time per piece, and the overall capacity is typically increased by about 40%–70%, depending on the materials and processing technology.
Q: Will the accuracy decrease after long-term operation?
A: The equipment adopts closed-loop servo control and a stress-relief machine body structure, which can effectively reduce the impact of thermal deformation and vibration, and can maintain stable repeatable processing accuracy for a long time under proper maintenance conditions.
Q: Does the equipment support our country's voltage standards?
A: Yes. It can be customized to various industrial voltage standards such as 220V / 380V / 415V / 480V, and the electrical system can be matched and adjusted at the factory according to the local power grid.
Q:Is the operation complicated, and is a professional engineer required?
A: No complex training is required. The equipment uses a standard industrial CNC system (SYNTEC/LNC, etc.), supports an English interface and standard G-code, and most operators can learn to use it quickly.
Q: What is the after-sales support if the equipment malfunctions?
A: Remote video technical support is provided, along with a global spare parts supply system. Routine problems can be resolved remotely, and critical parts can be shipped quickly via international express.
Q: What are the main vulnerable parts of the equipment? Are replacement costs high?
A: Main vulnerable parts include cutting tools, spindle bearings, and guide rail lubrication components, all of which use international standard specifications and can be quickly replaced in the local market or through our direct supply channels.
Q: Can it be used for processing different sizes or non-standard profiles?
A: Yes. The equipment supports customized stroke and fixtures to adapt to processing needs for different lengths and non-standard aluminum profiles or metal structural parts.
Q: What is the typical delivery time? Is transportation safe?
A: Standard models have a delivery time of approximately 30–60 days, using export-grade rust-proof, moisture-proof, and shock-proof wooden crates, and optimized container loading to ensure safe long-distance sea transport.
Q: What is the approximate return on investment period for the equipment?
A: Based on usage experience with customers in Europe, America, and the Middle East, under a two-shift production system, the payback period is typically approximately 6–9 months, depending on production volume and labor cost structure.
