Product Introduction

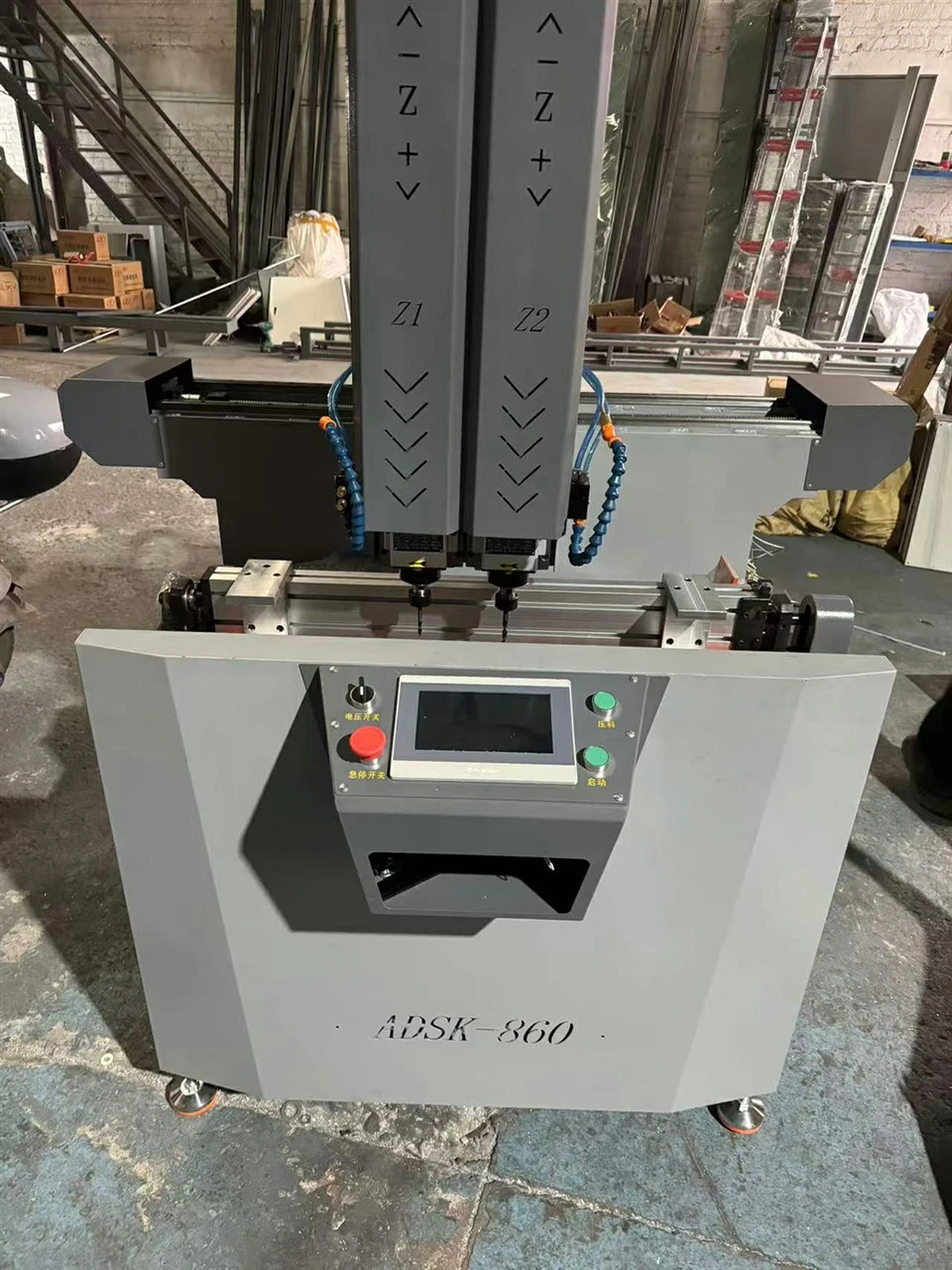

The 800mm Double-Sided Flip CNC Engraving Machine is an industrial-grade CNC machine designed for mass production scenarios. It adopts a dual-station flip structure, enabling continuous double-sided processing of the sheet material in a single clamping operation.
Core Technology Structure
Double-Sided Flip-Panel System
Mechanical limit and pneumatic locking structure for stable 180° flipping and repeatable positioning.
01
High-Rigidity Body
Thickened steel gantry frame with stress-relief treatment to ensure no deformation during long-term operation.
02
Drive System
Servo motor + ball screw/rack structure for high-precision motion control.
03
Spindle System
6kW/9kW high-speed electric spindle supporting continuous cutting.
04
Control System
DSP/Mach3/Syntec, supporting USB and network transmission.
05
Performance parameters
|
Item |
Specification |
|
Working Area |
800mm × 1200mm × 200mm |
|
Machine Structure |
Heavy-duty welded steel frame |
|
Machine Weight |
1500–1800 kg |
|
Spindle Power |
3.5kW / 6kW / 9kW Optional |
|
Spindle Speed |
0–24000 RPM |
|
Max Speed |
30000 mm/min |
|
Working Speed |
15000–20000 mm/min |
|
Positioning Accuracy |
±0.02 mm |
|
Repeat Accuracy |
±0.03 mm |
|
Drive System |
Servo Motor |
|
Transmission |
Ball Screw / Rack & Pinion |
|
Table Type |
2-Side Flip Table |
|
Control System |
DSP / Mach3 / Syntec |
|
Voltage |
380V / 3 Phase / 50–60Hz |
|
Cooling System |
Water / Air Optional |
Application Industries
Furniture Manufacturing
Mass production of cabinets, doors, and custom furniture.
Woodworking & Decoration
Carving, grooving, and cutting.
Advertising & Signage
Processing of acrylic and PVC sheets.
OEM Production Line
Supports standardized mass production and automated integration.
Optional Configurations
Spindle: 3.5kW / 6kW / 9kW
Controller: DSP / Mach3 / Syntec
Auto loading system optional
Table size customization
Dust collector support
Safety cover optional
After-sales Service
Warranty: 12–24 months full unit warranty.
Technical Support: Remote commissioning + parameter optimization support.
Spare Parts: Long-term standard spare parts supply.
Packaging and Shipping
Export Packaging: Heavy-duty wooden crate + shockproof securing.
Shipping: Optimized container loading to reduce transportation risks.
Delivery Time: Delivery time as confirmed by configuration.
Company Strengths
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q: Is this equipment suitable for 24-hour continuous production?
A: The equipment adopts an industrial-grade steel structure and servo drive system, supporting long-term continuous operation and suitable for factory mass production and multi-shift production environments.
Q: Will the double-sided flip-plate structure affect processing accuracy?
A: No. The flip-plate uses a mechanical limit + pneumatic locking positioning structure, ensuring stable repeatability and positioning accuracy after flipping, suitable for high-consistency batch processing.
Q: Is the equipment easy to operate, and is a professional engineer required?
A: No professional engineering background is required. The system uses a standard CNC control interface; operators can start production after basic training.
Q: What if the equipment malfunctions?
A: Remote diagnostic support is provided. Problems can be quickly located via video or network connection, and operating instructions or replacement solutions are provided.
Q: Are key components easily sourced locally?
A: Core components adopt internationally recognized industrial standards (such as servo drives and electrical components), and most can be sourced and replaced locally or in the regional market.
Q: Can it be customized according to our products?
A: Yes. Customization of worktable size, spindle power, fixture structure, and control system is supported to adapt to different production processes.
Q: Is equipment installation complex?
A: Basic debugging is completed before the equipment leaves the factory. After arrival, only simple installation, positioning, and wiring are required. Production can usually be completed within 1-2 days.
Q: Does it support integration with automated production lines?
A: It supports standard CNC interfaces and can be integrated with automatic loading and unloading equipment or assembly line systems to achieve semi-automatic or fully automatic production.
Q: Are operating costs high?
A: The equipment is primarily electrically driven, and consumables are mainly cutting tools. Overall operating costs are lower than manual processing, making it suitable for long-term mass production.
Q: What does the warranty and after-sales service include?
A: A 12-24 month warranty is provided for the entire machine, including remote technical support, spare parts supply, and operation training services to ensure long-term stable production.
