Product Introduction

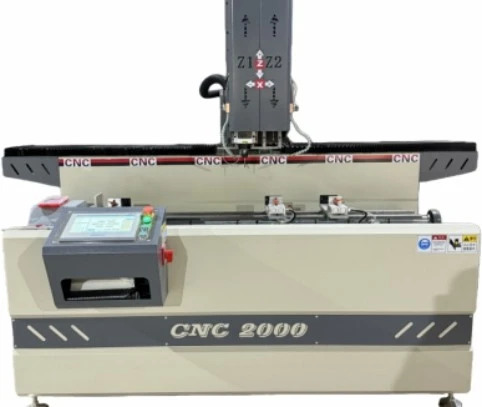

This equipment is a 2-meter stroke heavy-duty CNC milling machine, designed for overseas OEM factories and mass production enterprises, used for high-precision and high-stability machining of medium and large parts.
Application Industries
Automotive Parts Manufacturing
Suitable for batch machining of engine mounts and structural components, maintaining stable accuracy under heavy cutting conditions, and controlling scrap rate to within 1%.
01
Mold & Die Industry
High-rigidity structure supports machining complex cavities, reducing mold repair time by approximately 30–40% and improving mold delivery efficiency.
02
Aerospace Components
Thermal stability control system ensures long-term machining accuracy, with dimensional deviations controlled within ±0.01mm.
03
Heavy Machinery Parts
Supports heavy cutting of workpieces up to 3 tons, improving material removal efficiency and extending tool life.
04
OEM Manufacturing
Suitable for multi-shift continuous production, reducing maintenance difficulty and increasing batch delivery capabilities.
05
Core Technical Advantages
High-Rigidity Machine Bed
HT300 cast iron structure with double annealing treatment reduces vibration by approximately 30%, improving stability and long-term accuracy during heavy cutting.
2m Heavy-Duty Table
Dual guide rail support structure allows for single-clamp machining of large workpieces, reducing positioning errors.
Precision Linear Guide System
Utilizes HIWIN/THK guide rails and C3-grade lead screws to ensure stable positioning accuracy at high speeds.
Thermal Stability System
Spindle oil cooling and symmetrical structural design effectively control thermal deformation, with long-term machining errors ≤ ±0.005mm.
Servo Control System
Multi-axis linkage control improves the accuracy and response speed for machining complex curved surfaces.
Automatic Lubrication
Timed and metered oil supply system reduces wear and extends maintenance intervals by approximately 50%.
Technical Specifications
|
Project |
Parameters |
|
Working Table |
2000 × 1000 mm (Optional) |
|
Travel (X/Y/Z) |
2000 / 1000 / 600 mm |
|
Positioning Accuracy |
±0.01 mm |
|
Repeatability |
±0.005 mm |
|
Spindle Power |
11 / 15 kW |
|
Spindle Speed |
8000–12000 RPM |
|
Control System |
Fanuc / Siemens / Syntec |
|
Max Load |
2500–3000 kg |
|
Machine Weight |
7500–9500 kg |
|
Certification |
CE / ISO9001 |
Quality Control
- Renishaw laser inspection for full stroke accuracy
- Ballbar roundness testing
- Spindle dynamic balancing correction (G0.4 grade)
- 72-hour continuous operation test
- 100% inspection of all key components
- Inspection reports and video recordings are available for all equipment; third-party factory audits are supported.
Business Terms
Trade Terms: FOB / CIF / CFR
Payment Terms: T/T or L/C
Delivery Time: 30–60 days
OEM/ODM Supported
Optional Overseas Installation Service
Packaging and Shipping
Rust-proof treatment + vacuum moisture-proof packaging
IPPC fumigated wooden crates / steel structure packaging
Heavy-duty fixing to prevent deformation during transportation
Global port delivery supported
After-sales Service
24-hour technical response
Remote diagnostic support (optional IoT)
72-hour global spare parts shipping
Remote/on-site installation and training support
Long-term spare parts supply guarantee
Company Strengths
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q: Which industries is this 2m CNC Milling Machine suitable for?
A: The equipment is mainly used for mold manufacturing, automotive parts processing, heavy machinery parts, and OEM mass production, suitable for the continuous production needs of medium to large-scale industrial processing enterprises.
Q: What materials can the equipment process?
A: It can process aluminum alloys, carbon steel, stainless steel, and some engineering composite materials, suitable for medium to heavy-duty cutting and high-precision machining scenarios.
Q: What is the processing accuracy of the equipment?
A: Standard processing accuracy can reach ±0.01mm, and repeatability accuracy ±0.005mm, suitable for high-precision parts and mold processing needs.
Q: Does the equipment support 24-hour continuous operation?
A: It supports multi-shift 24-hour continuous operation, suitable for mass production factories. Key components have optimized designs for thermal stability and wear resistance.
Q: What is the typical delivery time?
A: The standard configuration delivery time is approximately 30–60 days, depending on configuration requirements and production schedule.
Q: Does it support OEM or customized configurations?
A: OEM/ODM customization is supported, including customization of worktable size, spindle power, control system, and voltage standards.
Q: Is there quality inspection before shipment?
A: Each machine undergoes Renishaw laser inspection, Ballbar testing, and a 72-hour operational test, and inspection reports are provided.
Q: Is the equipment safe to transport?
A: Rust-proof treatment + vacuum moisture-proof packaging + export wooden crate securing, suitable for long-distance sea transport and high-humidity environments.
Q: Are installation and training services provided?
A: Remote installation guidance and operation training are provided; on-site installation and commissioning services by overseas engineers are also available as an option.
Q: What about the equipment warranty and after-sales service?
A: The entire machine comes with a standard warranty period, core components are supplied long-term, and 24-hour technical support and remote diagnostic services are provided.
