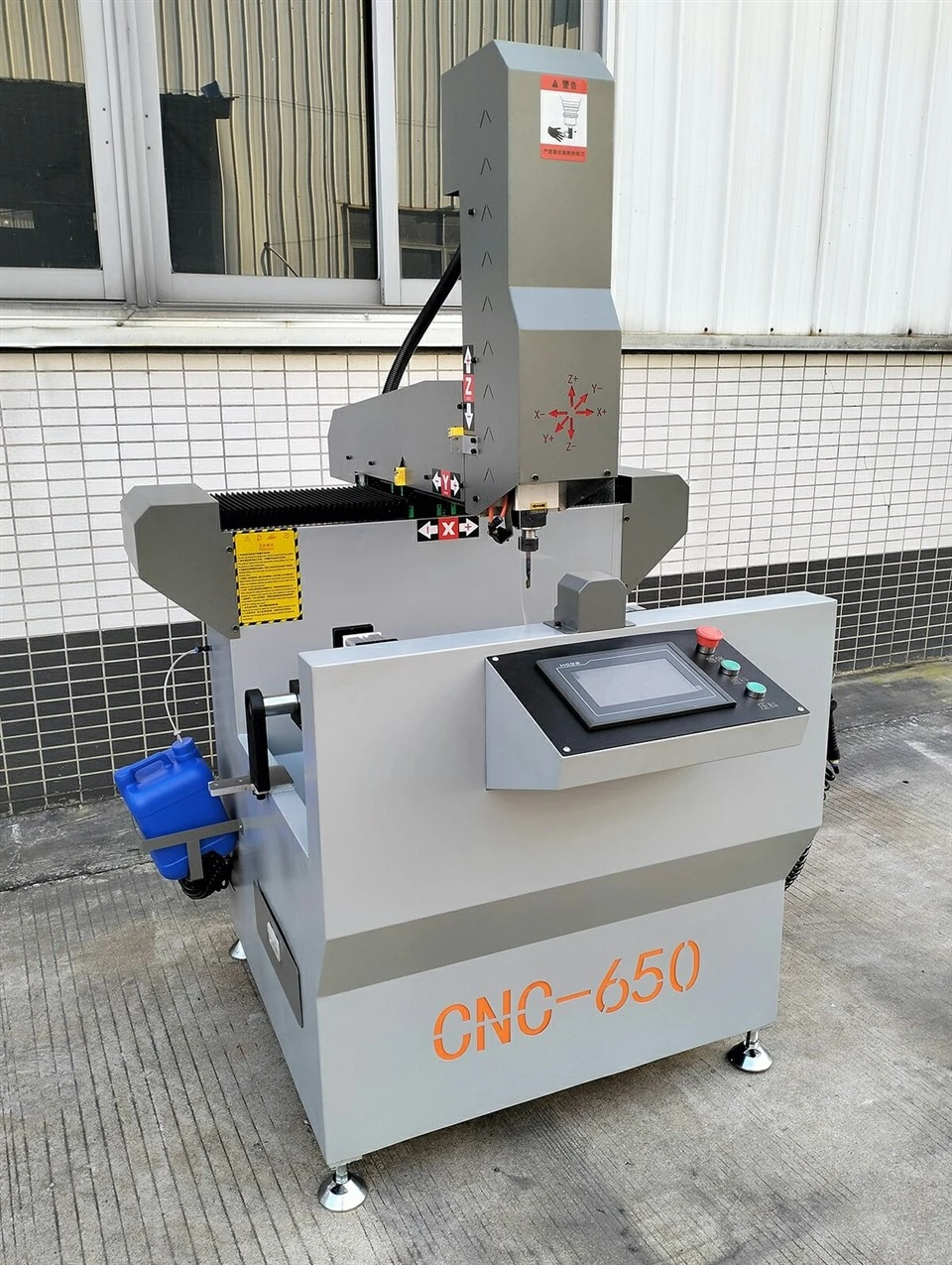

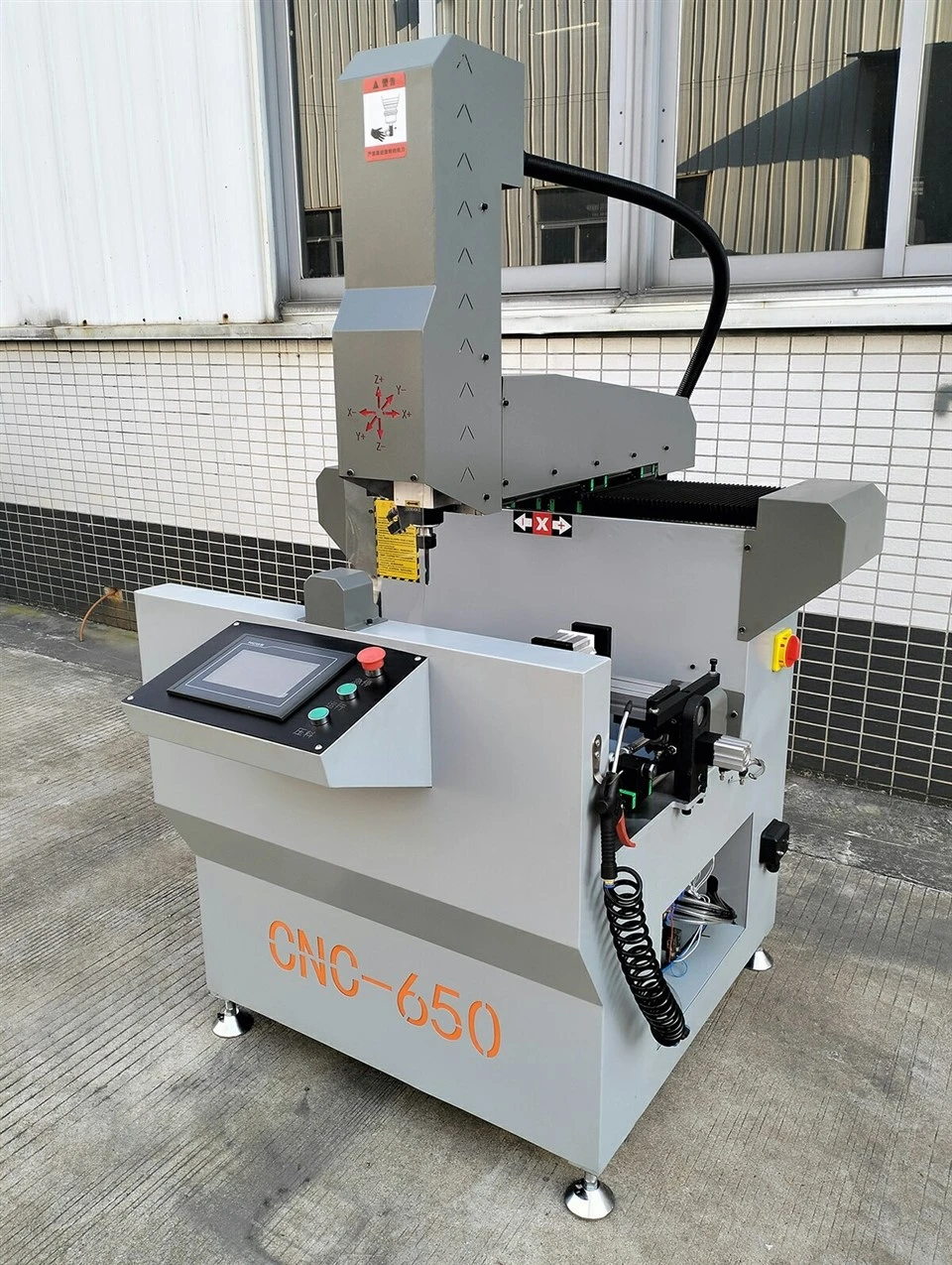

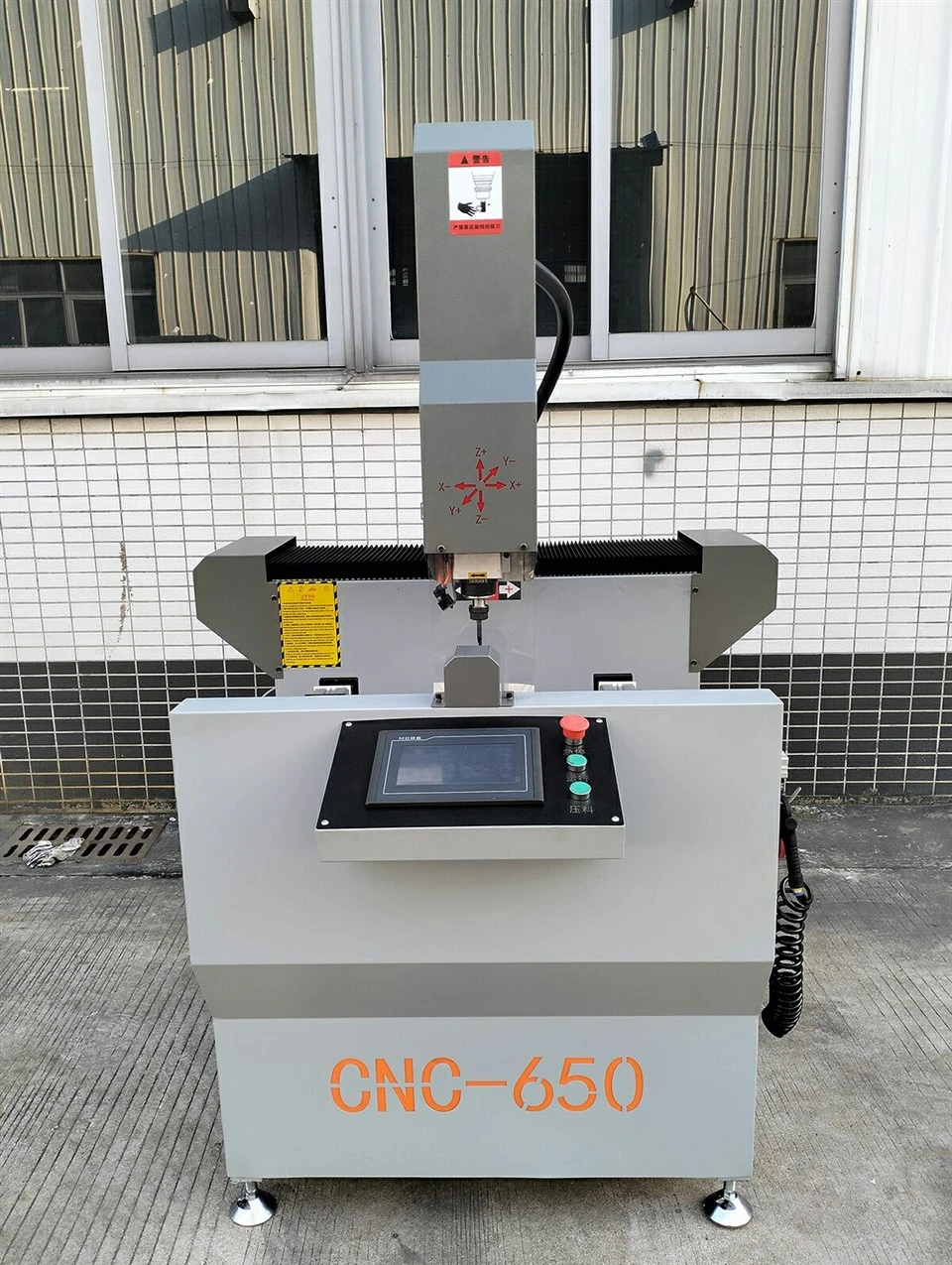

Product Overview
The 650mm Flip CNC Milling Machine is an automated CNC vertical machining center designed for high-efficiency, double-side milling, drilling, and slotting of aluminum extrusions, uPVC, and light alloys. Equipped with a 180° automatic flip mechanism and closed-loop servo control, it eliminates secondary manual clamping, reducing cycle times by 45% with a repeatable accuracy of ±0.02 mm.
Main Equipment Configuration
|
Name |
Model / Brand |
Origin |
|
7" Screen |
XINJE |
China |
|
Inverter |
Keken |
Guangdong |
|
Relay |
Delixi |
Zhejiang |
|
Spindle Motor |
Jinsheng |
Guangdong |
|
86 Stepper Motor |
Leili |
Guangdong |
|
Driver |
Leili |
Guangdong |
Main Technical Parameters
|
Power Supply |
380V / 50Hz |
|
Spindle Power |
2.2KW |
|
Spindle Speed |
0–18000rpm |
|
Working Air Pressure |
0.5–0.6MPa |
|
X / Y / Z Axis Travel |
650 / 300 / 250 mm |
|
Y‑Axis Travel (0° to -90° Surface) |
90 mm width |
|
Z‑Axis Effective Machining Height |
130 mm |
|
Max. Profile Size (H×W) |
130 × 120 mm |
|
X‑Axis Machining Range |
650 mm |
|
Y‑Axis Machining Range |
45 mm |
|
Z‑Axis Machining Range |
170 mm |
|
Overall Dimensions |
1350 × 1400 × 1750 mm |
|
Weight |
183 kg |
Process & Performance Advantages
180° Automated Flip
Servo-driven rotary axis flips profiles automatically in one fixture setup, eliminating manual repositioning errors and ensuring absolute concentricity.
Pneumatic Clamping
Multi-point adjustable pneumatic clamps protect thin-walled profiles (down to 1.2 mm) from deformation while dampening cutting vibrations.
Micro-Drip Cooling
Automated oil-mist system extends tool life by 35% and prevents aluminum burrs or welding-on-tool during deep slotting.
Customization Services
Electrical Standards
Configurable to 220V/380V/415V/440V (50/60Hz) with CE, UL, or CSA compliance.
Software Interface
Multi-language system (English, Spanish, Russian, etc.) with direct MES/ERP system integration.
Hardware Upgrades
Optional Italian HSD spindles, automatic tool changers (ATC, 4-8 slots), and custom clamping matrices for irregular profiles.
Factory Strength & Services
4 Lines & 1,000+ Units Output: Equipped with 4 automated production lines delivering over 1,000 machines annually to reliably fulfill large-volume B2B orders.
10+ Years R&D Expertise: Over a decade of specialization in high-grade aluminum alloy and curtain wall processing machinery, backed by an advanced Computer Integrated Manufacturing System (CIMS) for cost-efficient production.
Precision Factory Layouts: Complimentary, custom workshop floor-plan designs and equipment configurations tailored exactly to your profile specifications to maximize floor space and prevent machinery waste.
1-Year Warranty & Logistics: Full 12-month factory guarantee (excluding wear parts) with rapid parts dispatch, complete technical documentation, and flexible global shipping terms (FOB, CIF, DDP).
Upstream Supply Chain Support: Free industry matching with verified raw-material and accessory suppliers to help seamlessly set up or scale your window and door manufacturing plant.
Packaging & Global Logistics
Trade Terms
Support FOB, CIF, DDP, CFR.
Protection
Anti-rust oil treatment, vacuum-sealed plastic film with industrial desiccant.
Enclosure
Export-grade, fumigation-free wooden case reinforced with an internal steel frame.
Documentation
Shipped with English operation manuals, electrical schematics, and a wear-parts starter kit.
FAQ
Q: What is the standard lead time for this machine?
A: Standard configurations take 20 to 30 working days. Custom voltages, specialized fixtures, or specific CNC system integrations require 35 to 45 days.
Q: How do you verify machine accuracy before shipping?
A: Every machine undergoes a 48-hour continuous dry run and actual material trial cutting. We use laser interferometers to calibrate linear motion, and provide a full QC report and testing video before dispatch.
Q: How is remote technical support and software troubleshooting handled?
A: CNC controllers can be equipped with network modules, allowing our engineers to securely log in remotely to troubleshoot programming issues, optimize G-code, or update firmware in real-time.
Q: What is your warranty policy and how are spare parts delivered?
A: We provide a 12-month warranty on all mechanical and structural components. Replacement parts are dispatched via express courier (DHL/FedEx/UPS) within 24 hours of diagnosis, and lifetime parts supply is guaranteed at cost.
Q: Can this machine process steel or heavy iron profiles?
A: This model is optimized for high-speed routing of aluminum, uPVC, copper, and lightweight composites. For heavy carbon steel or cast iron, we recommend our heavy-duty horizontal machining centers with gear-driven spindles.
Q: What support do you offer for factory installation and operator training?
A: We provide comprehensive video tutorials and step-by-step digital manuals. We also offer live video commissioning sessions with our field engineers, as well as on-site engineering setup and training by agreement.
