Product Introduction

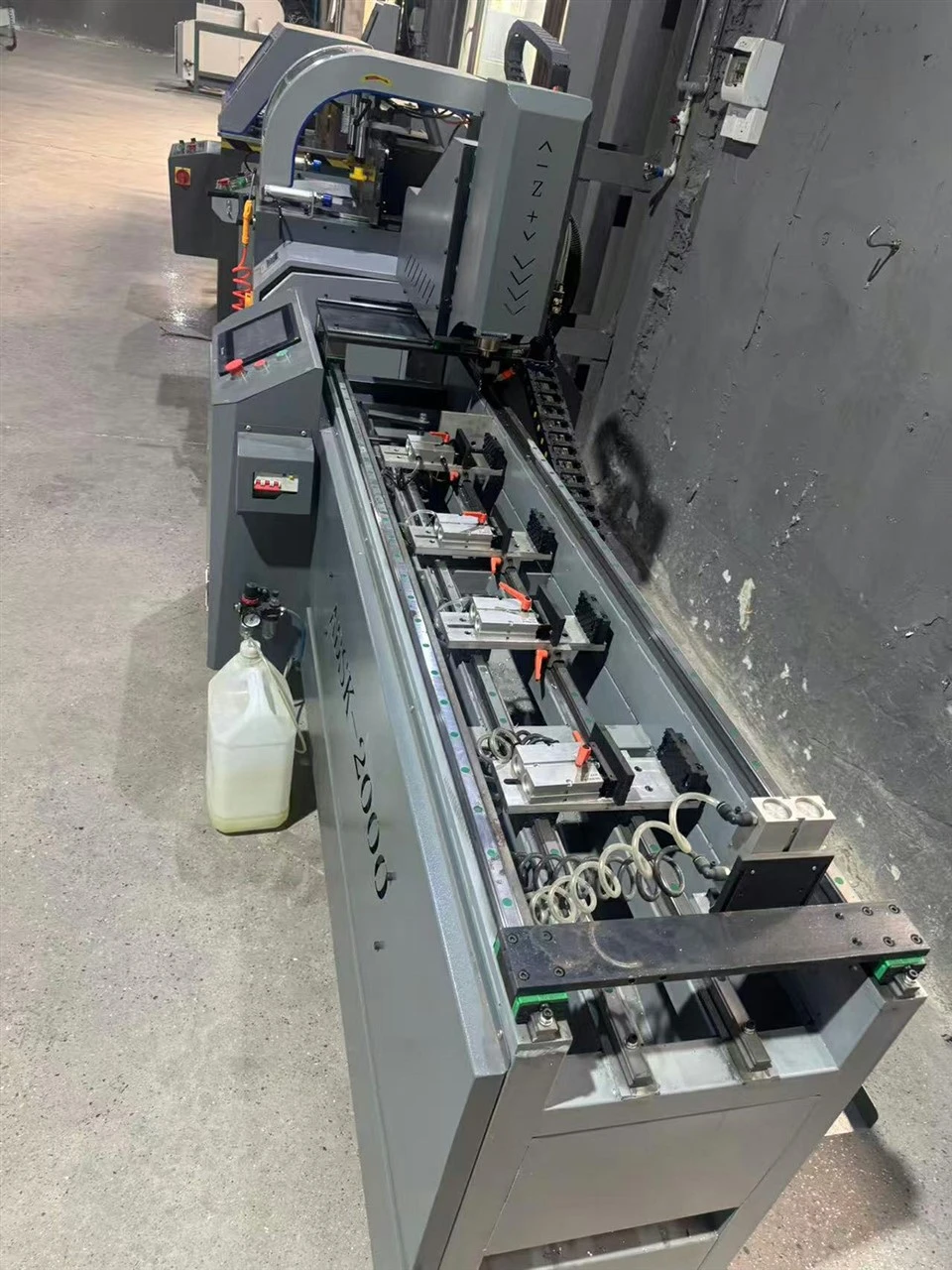

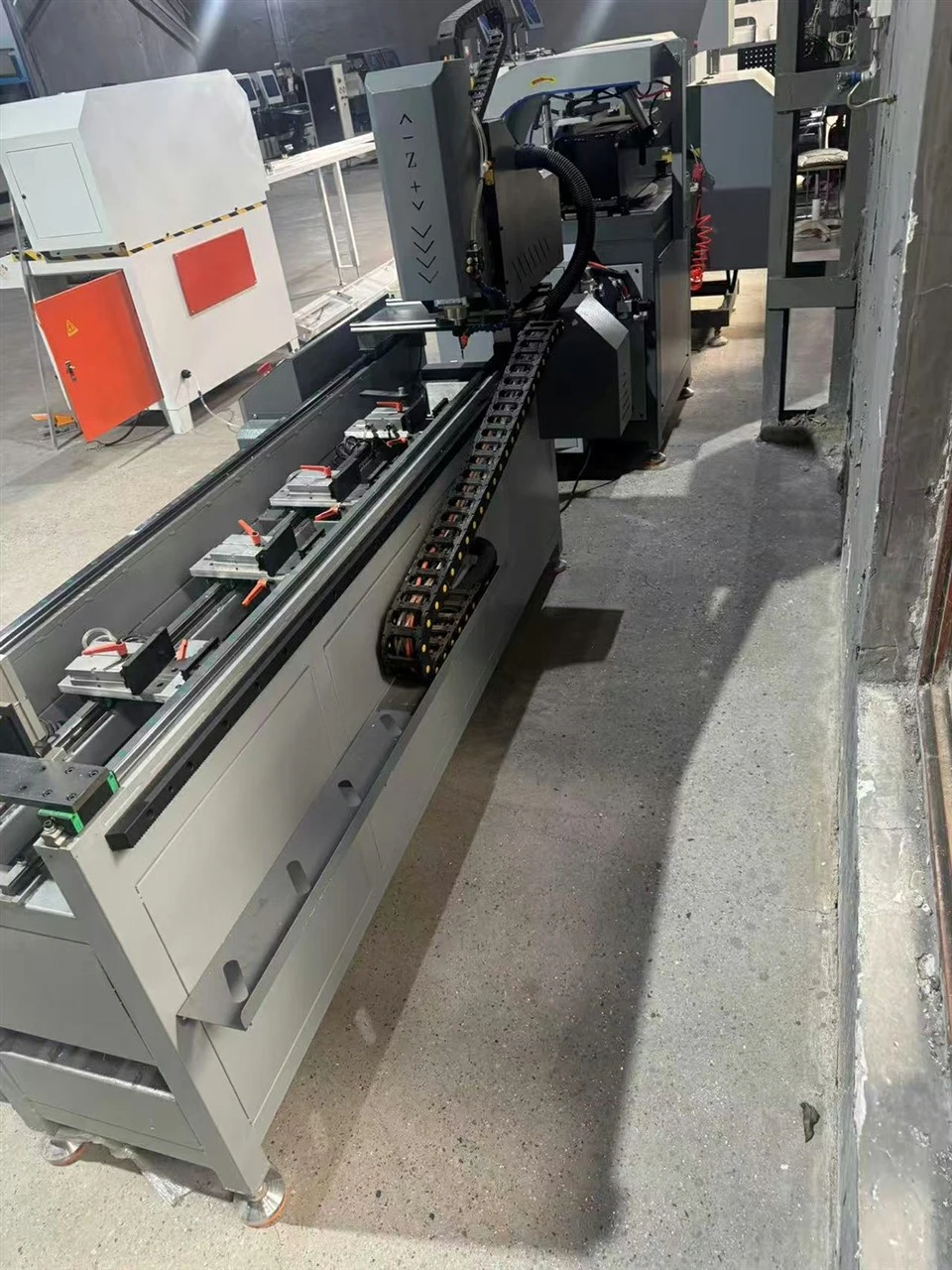

The CNC Anti-theft Grid Mill is a CNC machine used for processing metal profiles such as security windows, security doors, and protective netting. It can complete processes such as milling, drilling, cutting, and irregular shape processing.
Core Advantages
High-Precision Machining: Utilizing a high-precision servo system and CNC control technology, the repeatability accuracy reaches ±0.03 mm, meeting the consistency requirements of batch processing.
Automated Production: Automatic positioning and pneumatic clamping reduce manual operation, improve processing efficiency, and are suitable for continuous production.
Heavy-Duty Machine Body: The integral steel structure machine body undergoes aging treatment, ensuring stable operation, effectively reducing vibration, and extending the equipment's service life.
Flexible Changeover: Supports processing of various profiles; products can be quickly changed through program switching without complex adjustments.
Brand Selection: Key components can be selected from brands such as Schneider, Delta, and HIWIN, ensuring stable operation and convenient maintenance.
Technical Specifications
|
Item |
Standard Specification |
Customizable Option |
|
Machine Type |
CNC Anti-theft Grid Mill |
Custom Available |
|
Applicable Material |
Aluminum / Stainless Steel / Galvanized Steel |
Custom Profiles |
|
CNC Control System |
Industrial PLC + CNC |
Mitsubishi / Siemens / Delta |
|
Spindle Speed |
6,000 rpm |
4,000–12,000 rpm |
|
Max Processing Length |
3,000 mm |
Up to 6,500 mm |
|
Processing Width |
10–150 mm |
Customized |
|
Max Milling Depth |
8 mm |
Customized |
|
Max Slot Width |
20 mm |
Customized |
|
Positioning Accuracy |
±0.05 mm |
±0.02 mm |
|
Repeat Positioning Accuracy |
±0.03 mm |
±0.015 mm |
|
Feed Speed |
0–20 m/min |
Adjustable |
|
Spindle Motor Power |
5.5 kW |
Optional |
|
Servo Motor |
Delta / Mitsubishi |
Optional Brands |
|
Air Pressure |
0.6–0.8 MPa |
Standard |
|
Voltage |
380V / 50Hz |
220V / 415V / 440V |
|
Machine Weight |
Approx. 1,800 kg |
Depending on Configuration |
|
Overall Dimension |
4200 × 1200 × 1600 mm |
Customized |
Application Industries
Security Door and Window Manufacturing
Suitable for batch processing of security windows, security doors, and security grilles, improving production efficiency.
Aluminum Profile Processing
Supports milling, drilling, and cutting of aluminum alloy doors, windows, and industrial profiles.
Metal Product Processing
Processes stainless steel, galvanized steel, and other metal profiles to meet diverse product needs.
Engineering Support Manufacturing
Suitable for construction engineering, public facilities, and metal component manufacturing companies.
Manufacturing Strength
Complete Production Process
From welding and machining to final assembly, everything is completed in the factory, ensuring consistent product quality.
Precision Machining Equipment
Equipped with gantry machining centers, laser cutting equipment, and CNC machining equipment to improve component processing accuracy.
Stable Delivery Capability
Standardized production processes can meet the needs of bulk orders, ensuring on-time delivery.
Technical Support
Provides equipment selection, process advice, and remote after-sales service to help customers quickly get into production.
OEM/ODM
Customization of Parameters
Supports customization of machining stroke, fixtures, spindle, and control system configurations.
Global Compatibility
Supports different voltages and multilingual operating interfaces to meet the needs of various countries.
Brand Customization
Supports OEM services for logos, equipment colors, nameplates, and packaging.
Safety Upgrades
Can be equipped with protective covers, safety light curtains, etc., according to market requirements.
Quality Control
Raw Material Inspection
Key materials and components undergo quality inspection before entering the factory.
Precision Testing
Dimensional and positioning accuracy are tested after processing.
Complete Machine Testing
Continuous operation and functional testing are completed before the equipment leaves the factory.
Export Packaging
Rust-proof, moisture-proof, and fumigation-free wooden crates are used to ensure safe transportation.
Why choose us
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q: What is the minimum order quantity (MOQ)?
A: We support orders starting from 1 unit. Whether it's for sample purchases, factory use, or bulk purchases by distributors, we can provide corresponding product solutions and technical support.
Q: Can the machine be customized for our profiles?
A: Yes. We support OEM/ODM customization, and can provide personalized designs based on profile dimensions, processing technology, processing length, control system, spindle configuration, voltage, and language, ensuring the equipment meets your production needs.
Q: Which materials can this machine process?
A: The equipment is suitable for aluminum alloy, stainless steel, galvanized steel, and other metal profiles. It can complete milling, drilling, cutting, and irregular shape processing, meeting the processing needs of various products such as security doors and windows, and metal grilles.
Q: How long is the production lead time?
A: Standard models generally take 15–20 working days to complete production, while customized models typically require 25–35 working days. The specific delivery time will be confirmed based on equipment configuration and order quantity.
Q: Can I send samples or drawings for testing?
A: Yes. You can provide profile samples or 2D/3D drawings. We can conduct free processing and testing, and provide processing videos, sample photos, and test results to help you confirm whether the equipment meets production requirements.
Q: How do you ensure machine quality before shipment?
A: Each machine undergoes component inspection, complete machine assembly, precision calibration, continuous operation testing, and final quality inspection before leaving the factory. Packaging and shipment are only arranged after confirming that all performance meets requirements.
Q: What after-sales service do you provide?
A: We provide a 1-year warranty on the entire machine and lifetime technical support. We also provide English operation manuals, video training, and remote technical guidance. If replacement parts are needed, we can quickly arrange international express delivery.
Q: Which countries have you exported to?
A: Our equipment has been exported to many countries and regions in Europe, the Middle East, Southeast Asia, and South America. We have extensive experience in international projects and bulk order delivery, and can provide corresponding configurations according to different markets.
Q: What packaging methods do you use for export?
A: All equipment is packaged with rust-proof and moisture-proof materials, secured in export-grade fumigation-free plywood crates, with internal shock-absorbing support structures to effectively reduce transportation risks during long-distance sea freight.
Q: Can I visit your factory or arrange a video inspection?
A: You are welcome to visit our factory. For overseas customers, we also offer online factory inspection services via Zoom, Microsoft Teams, or WhatsApp, which can provide real-time demonstrations of the production workshop, assembly process, equipment debugging, and sample testing, helping you gain a more comprehensive understanding of our manufacturing capabilities.
