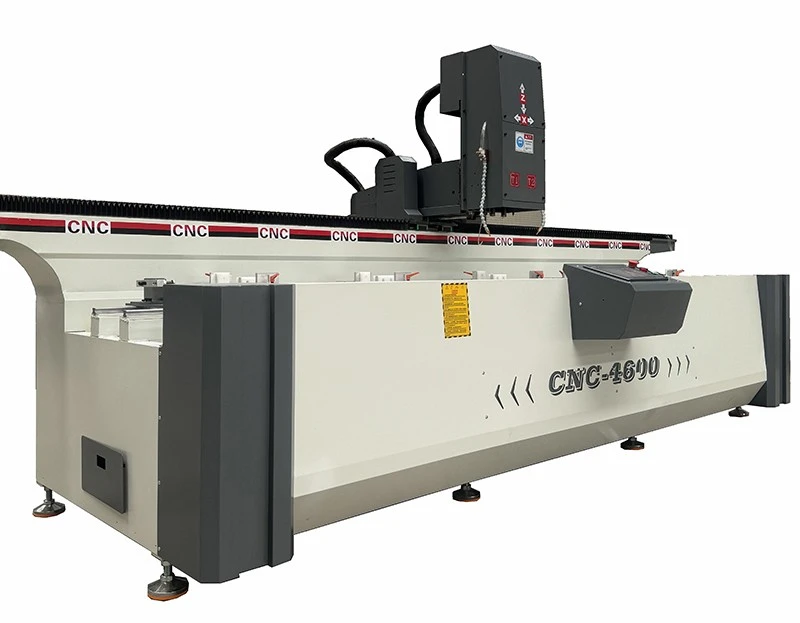

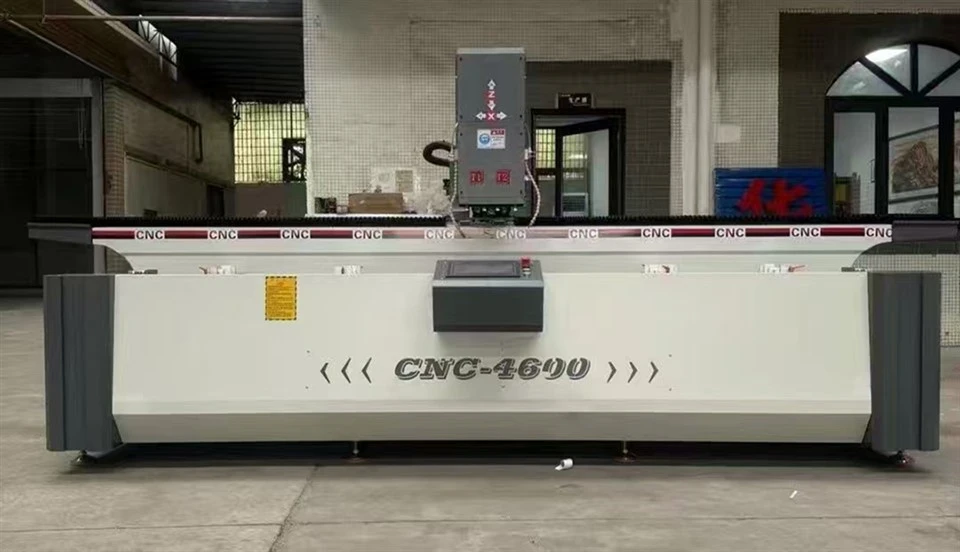

Product Introduction
The Double-Head Hinge Drill is an industrial-grade, dual-head drilling machine designed for hinges. It simultaneously drills hinge holes at both ends of a door panel and is suitable for the production of cabinets, wardrobes, and panel furniture.
Application Areas
Cabinet Door Production
Ideal for the batch processing of kitchen cabinet doors; minimizes time spent on repeated clamping and boosts overall production efficiency.
Custom Furniture Manufacturing
Supports rapid adjustment of hole spacing and positioning dimensions, accommodating the need for diverse specifications and small-batch production.
OEM Furniture Manufacturing
Features an industrial-grade structural design capable of meeting continuous production demands; suitable for export-oriented furniture factories.
Furniture Component Processing
High precision in hole positioning enhances downstream assembly efficiency and reduces the need for rework.
Applications of Processed Materials
MDF/HDF (Medium and High Density Fiberboard): Suitable for processing various cabinet, wardrobe, and office furniture panels.
Particle Board/Chipboard: Optimized for the drilling performance of particleboard, reducing edge chipping and improving hinge installation quality. Widely used in the production of budget furniture.
Melamine Faced Board: Suitable for processing double-sided and veneered panels. A stable positioning and clamping system helps protect the board surface and improves the quality of the finish.
Plywood: Suitable for processing multi-layer plywood and composite panels. The industrial-grade spindle can meet continuous drilling requirements, suitable for office furniture, hotel furniture, and engineered furniture manufacturing.
Solid Wood Panel: Can be used for drilling some solid wood and solid wood composite panels. Selecting the appropriate drill bit and processing speed according to the wood hardness ensures stable processing results.
Other Engineered Wood Panels: The equipment is also suitable for OSB, LVL, and other engineered wood panels.
Core Technical Advantages
Synchronous Dual-Head Drilling
Dual drilling units process holes at both ends simultaneously, eliminating the need to flip the workpiece or reposition it repeatedly, thereby increasing productivity.
High-Rigidity Frame
Constructed from a welded, stress-relieved steel structure to minimize vibration and ensure long-term processing stability.
Precision Positioning System
Combines mechanical stops with pneumatic clamping to prevent panel shifting and enhance repeatability in positioning.
Industrial-Grade Power System
Equipped with a pure-copper motor for stable output suitable for prolonged, continuous operation; options for international brand motors are available upon request.
Technical Specifications
|
Parameter |
Specification |
|
Model |
HD-21X2 (Example) |
|
Drilling Heads |
2 Sets |
|
Total Spindles |
6 (3 × 2) |
|
Max. Cup Hole Diameter |
Ø35 mm |
|
Side Hole Diameter |
Ø2–Ø5 mm |
|
Max. Drilling Depth |
0–50 mm |
|
Processing Thickness |
10–50 mm |
|
Max. Door Width |
Customized |
|
Min. Door Width |
Customized |
|
Motor Power |
1.5 kW × 2 |
|
Spindle Speed |
2840 rpm / 4000 rpm |
|
Working Air Pressure |
0.6–0.8 MPa |
|
Air Consumption |
Approx. 80–120 L/min |
|
Positioning Method |
Mechanical Positioning |
|
Clamping Method |
Pneumatic Clamping |
|
Control Method |
Push Button / Foot Pedal |
|
Machine Frame |
Heavy-duty Welded Steel Structure |
|
Electrical Components |
Schneider / Omron (Optional) |
|
Motor Brand |
Standard / Siemens / ABB (Optional) |
|
Voltage |
220V / 380V / 415V / 440V |
|
Frequency |
50Hz / 60Hz |
|
Machine Dimensions |
Customized |
|
Machine Weight |
Customized |
|
Packing Size |
According to Model |
|
Certification |
CE (Optional), ISO9001 Manufacturing System |
Quality Control
Incoming Material Inspection:All steel materials and key components undergo incoming material inspection to ensure compliance with production standards.
Frame Inspection: The frame dimensions, flatness, and mounting surfaces are inspected to ensure assembly accuracy.
Spindle Inspection: The spindle's operating condition is inspected to ensure smooth operation and no abnormal vibration.
Machine Function Test:Functional tests are performed on the drilling, positioning, clamping, electrical, and pneumatic systems to ensure normal equipment operation.
Trial Drilling Test:Trial drilling is conducted using standard sheet metal to check the consistency of hole diameter, depth, and position.
Final Inspection:Before packaging, the equipment's appearance, accessories, and accompanying documents are inspected to ensure safe delivery.
OEM/ODM & Distributor Support
Voltage & Configuration Customization: Supports various electrical standards including 220V, 380V, 415V, 440V, and 50Hz/60Hz, and can customize configurations to meet specific needs.
OEM Branding: Offers OEM customization services for equipment colors, logos, nameplates, etc., to support brand building.
Marketing Materials Support: Provides product images, videos, English manuals, and product catalogs to facilitate marketing.
Pre-sales Technical Support: Recommends suitable equipment solutions based on sheet metal specifications, hinge types, and production capacity requirements.
Long-term Partnership: Continuously provides technical support, spare parts supply, and product update services to support customers' long-term development.
Company Strengths
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q: What hinge specifications is this machine suitable for?
A: The machine supports the processing of standard 35mm concealed hinges. Hole spacing and drill bit layouts can be adjusted to accommodate specifications from brands such as Blum, Hettich, and Häfele. We can also provide customization based on your drawings if there are special requirements.
Q: What types of panels can the machine process?
A: It can process MDF, HDF, particleboard, plywood, melamine-faced boards, and certain solid wood panels. We provide recommendations for drill bit configurations and processing parameters tailored to specific materials.
Q: Can the voltage and frequency be customized for local standards?
A: Yes. The equipment supports various electrical standards (e.g., 220V, 380V, 415V, 440V; 50Hz or 60Hz) and can be customized according to the requirements of your country or region.
Q: Is OEM branding customization supported?
A: Yes. We offer OEM services-including machine color, logos, nameplates, and packaging-to help distributors build their local brand image.
Q: What is the lead time for delivery?
A: Production of standard models typically takes about 15–25 working days; the exact delivery date is confirmed based on order quantity and customization requirements.
Q: Is the installation process complex?
A: No, it is straightforward. The machine is tested and adjusted before leaving the factory and comes with an English manual, operation videos, and installation instructions. We also provide remote video technical support if needed.
Q: How can I get after-sales support if the machine malfunctions?
A: We provide remote technical support via WhatsApp, email, or video conferencing to assist with troubleshooting. If replacement parts are required, we will arrange for rapid shipment.
Q: Are wear parts easy to purchase?
A: Yes. Common wear parts and standard components are kept in stock, and components from international brands can also be sourced locally, making future maintenance convenient.
Q: What documents are provided for export?
A: We can provide commercial invoices, packing lists, bills of lading, certificates of origin, and other export documents as required by the destination country; specific documentation can be prepared according to order requirements.
Q: How do I choose the right model for my needs?
A: Please provide details such as panel thickness, door panel dimensions, hinge specifications, daily production capacity, and local voltage; our engineers will then recommend the appropriate equipment configuration and solution for you.
