Product Introduction

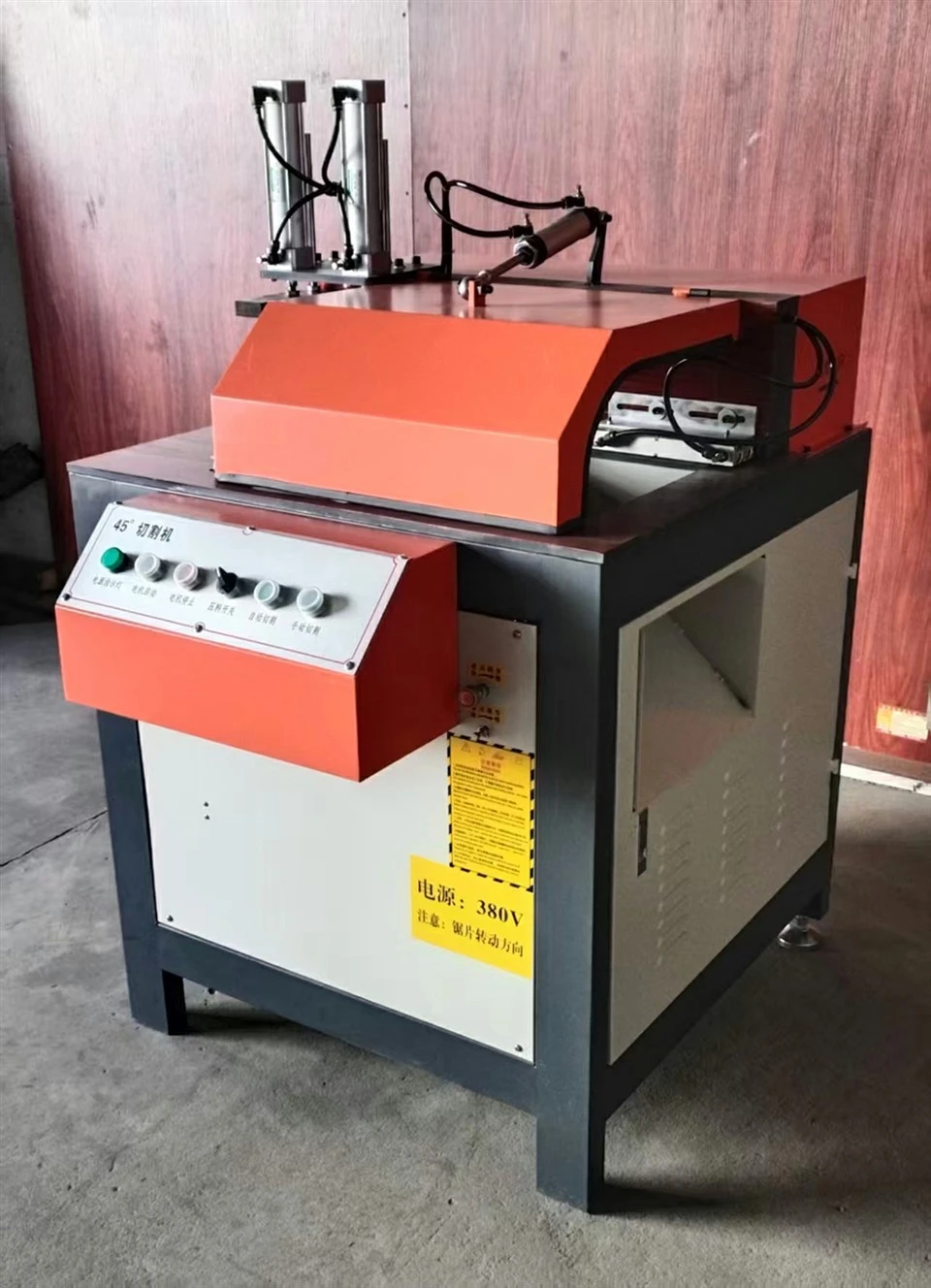

The 20 Inch 45° Single Head Saw is a precision cutting device designed specifically for aluminum alloy doors and windows, curtain wall profiles, PVC profiles, and industrial aluminum extrusion materials.
Core Advantages
High-Precision 45° Cutting System: Employs a precision positioning structure to reduce angular errors and ensure consistent batch processing of profiles.
20-inch Industrial-Grade Saw Blade: Equipped with a 500mm large saw blade, increasing cutting depth and meeting the needs of processing thick-walled and large-sized profiles.
Multi-Point Pneumatic Clamping: Stabilizes and secures the processed material, reducing vibration and offset, and improving cut smoothness.
Pneumatic-Hydraulic Damped Feed: Controls feed speed, reduces impact, and improves cutting results and saw blade life.
Heavy-Duty Steel Structure Body: Enhances equipment rigidity and stability, suitable for long-term continuous production.
Safety Protection Design: Equipped with protective covers and safety switches to reduce operational risks and meet export requirements.
Global Voltage Customization: Supports voltage configurations for multiple regions and offers OEM branding and appearance customization.
Technical Specifications
|
Item |
Specification |
|
Machine Model |
20 Inch 45° Single Head Saw |
|
Saw Blade Diameter |
500 mm / 20 inch |
|
Cutting Angle |
45° |
|
Blade Speed |
2800 rpm |
|
Motor Power |
3.0 kW / 4.0 HP |
|
Max. Cutting Width |
160 mm / 6.3 inch |
|
Max. Cutting Height |
200 mm / 7.8 inch |
|
Air Pressure |
0.6–0.8 MPa / 87–116 psi |
|
Air Consumption |
60 L/min |
|
Power Supply |
380V 50Hz (Optional) |
|
Machine Dimensions |
1500 × 900 × 1450 mm |
|
Machine Weight |
Approx. 380 kg |
|
Safety System |
Safety Cover & Emergency Stop |
|
Certification |
CE Available |
Applications
Aluminum Alloy Door and Window Manufacturing: Suitable for processing ordinary aluminum doors and windows, thermally broken aluminum doors and windows, and engineering door and window profiles. Enables stable 45° angle cutting, improving the efficiency of door and window frame splicing.
Building Curtain Wall Processing: Suitable for cutting aluminum profiles for curtain walls, architectural decorative profiles, and materials for large-scale engineering projects, meeting the construction industry's requirements for dimensional consistency.
Industrial Aluminum Profile Production: Can process automated equipment frames, mechanical supports, assembly line structural components, and industrial aluminum extrusion materials, suitable for mass production in industrial manufacturing enterprises.
Furniture and Decorative Profile Processing: Suitable for processing aluminum furniture, display racks, decorative frames, and other products, improving production efficiency and processing quality.
Processable Materials
Aluminum Profiles
Suitable for processing architectural aluminum profiles, door and window profiles, and industrial aluminum profiles, meeting daily batch cutting needs.
01
Thermal Break Aluminum Profiles
Suitable for the production of thermally broken aluminum doors and windows, improving profile splicing accuracy.
02
Industrial Aluminum Extrusions
Suitable for processing profiles for automated equipment, mechanical structures, and industrial frames.
03
UPVC/PVC Profiles
Can be used for processing plastic doors, windows, and related profiles.
04
Light Alloy Profiles
Suitable for processing lightweight metal structural components.
05
Manufacturing Strength
Standardized Production Process: From raw material procurement, component processing, equipment assembly to final inspection, a complete production process is established to ensure consistent quality for every piece of equipment.
Precision Machining Equipment: The factory is equipped with CNC machining centers, laser cutting equipment, welding equipment, and professional assembly lines to ensure the machining accuracy and structural stability of key components.
Full-Process Quality Inspection: During equipment production, the following are conducted:
- Raw Material Inspection
- Component Dimension Inspection
- Assembly Accuracy Inspection
- Running Test
- Cutting Performance Test
- Final Inspection
OEM and Customization Services
Global Market Configuration Support: Customization is provided according to different country requirements:
Voltage and Frequency Customization
Equipment Color Customization
Brand Logo Customization
Control Panel Language Customization
Electrical Component Brand Selection
Packaging and Instruction Manual Customization
FAQ
Q: What materials can the 20-inch 45° Single Head Saw process handle?
A: This equipment is mainly used for processing aluminum alloy profiles, thermally broken aluminum profiles, industrial aluminum extrusion profiles, and some PVC profiles. It is suitable for batch cutting needs in industries such as doors and windows, curtain walls, and industrial frames.
Q: What is the maximum cutting capacity of this machine?
A: The equipment is equipped with a 20-inch (500mm) saw blade, which can achieve a large cutting range according to the profile specifications. It is suitable for processing thick-walled aluminum profiles and large-section industrial profiles. The specific cutting capacity can be confirmed according to the material size.
Q: Can the machine be customized according to our local power supply?
A: Yes. The equipment supports different national voltage and frequency configurations, such as 220V, 380V, 415V, 440V, etc., to meet the usage needs of different markets in Europe, America, the Middle East, and Southeast Asia.
Q: Do you provide OEM or private label service?
A: We support OEM/ODM customization services, including equipment color, brand logo, nameplate, control panel language, electrical component configuration, and packaging methods, helping overseas agents establish their own brand products.
Q: What is the production lead time for bulk orders?
A: Standard configuration equipment can usually be produced according to orders; for bulk orders and customized configurations, the lead time will be confirmed based on quantity and requirements, and the factory can provide a detailed production plan.
Q: How do you ensure machine quality before shipment?
A: Each piece of equipment undergoes mechanical precision testing, operational testing, cutting effect testing, and electrical safety checks before leaving the factory to ensure stable equipment performance before packaging and shipping.
Q: Does the machine meet international safety requirements?
A: The equipment adopts safety guards, safety switches, and other protective designs, and can provide corresponding safety configurations and certification documents according to the requirements of the target market.
Q: Do you provide installation and technical support for overseas customers?
A: We provide remote installation guidance, operation training, video support, and technical consultation services to help customers quickly complete equipment installation and production commissioning.
Q: Can spare parts be supplied for long-term maintenance?
A: Yes. Our factory provides a long-term supply of commonly used spare parts such as saw blades, cylinders, and electrical components to help overseas customers reduce equipment maintenance costs and ensure long-term stable operation.
Q: What shipping and packaging options are available?
A: The equipment uses export standard packaging, including moisture protection, shockproof and secure packaging, and fumigation-free wooden crates. We support various international shipping methods, including sea and land transport, and provide relevant documents to meet customers' trade needs.
