Product Overview

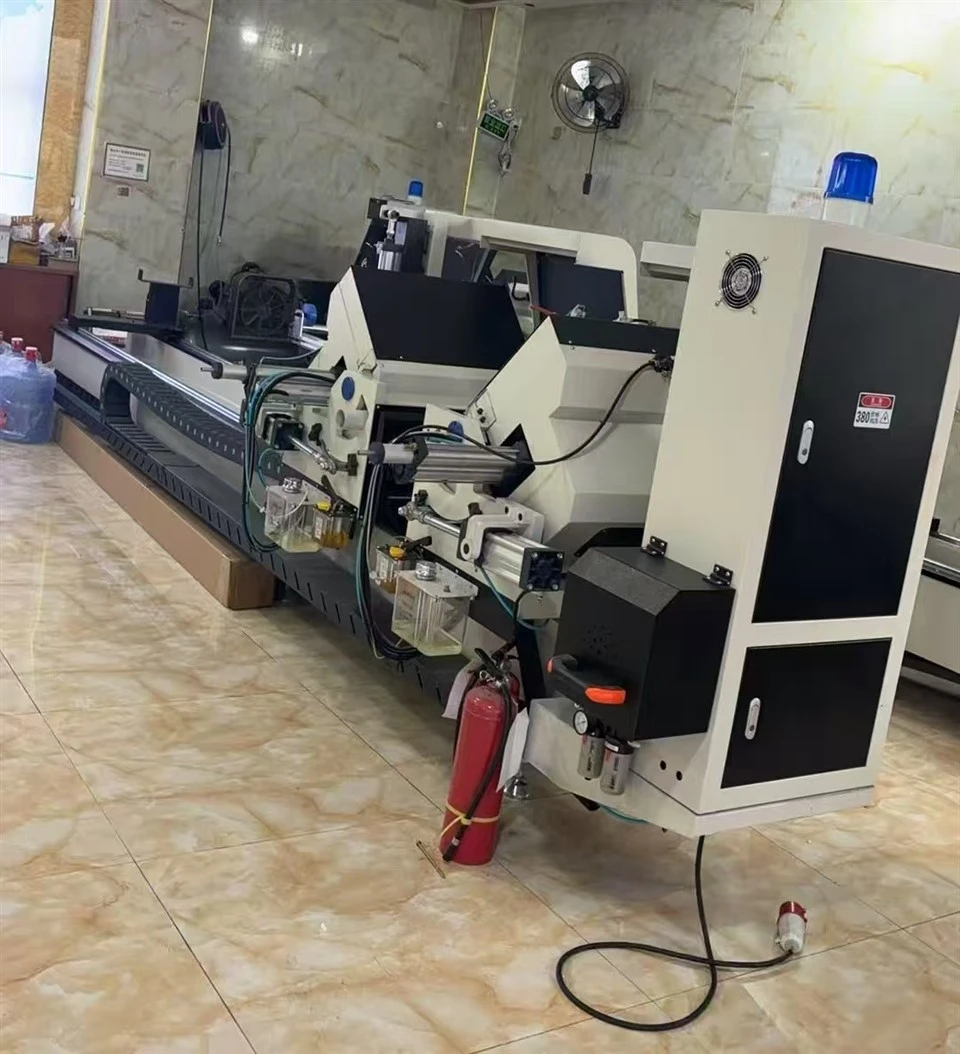

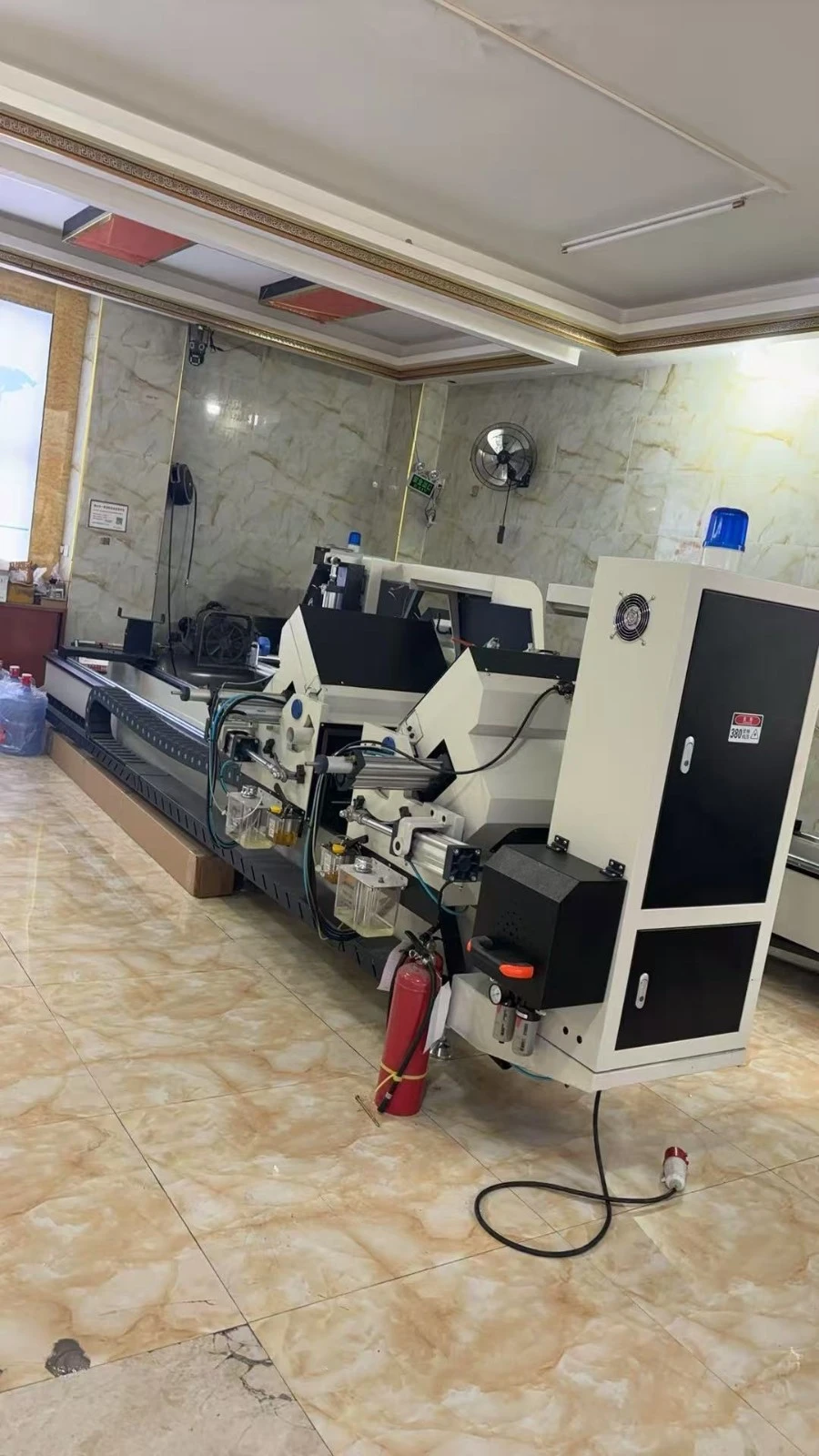

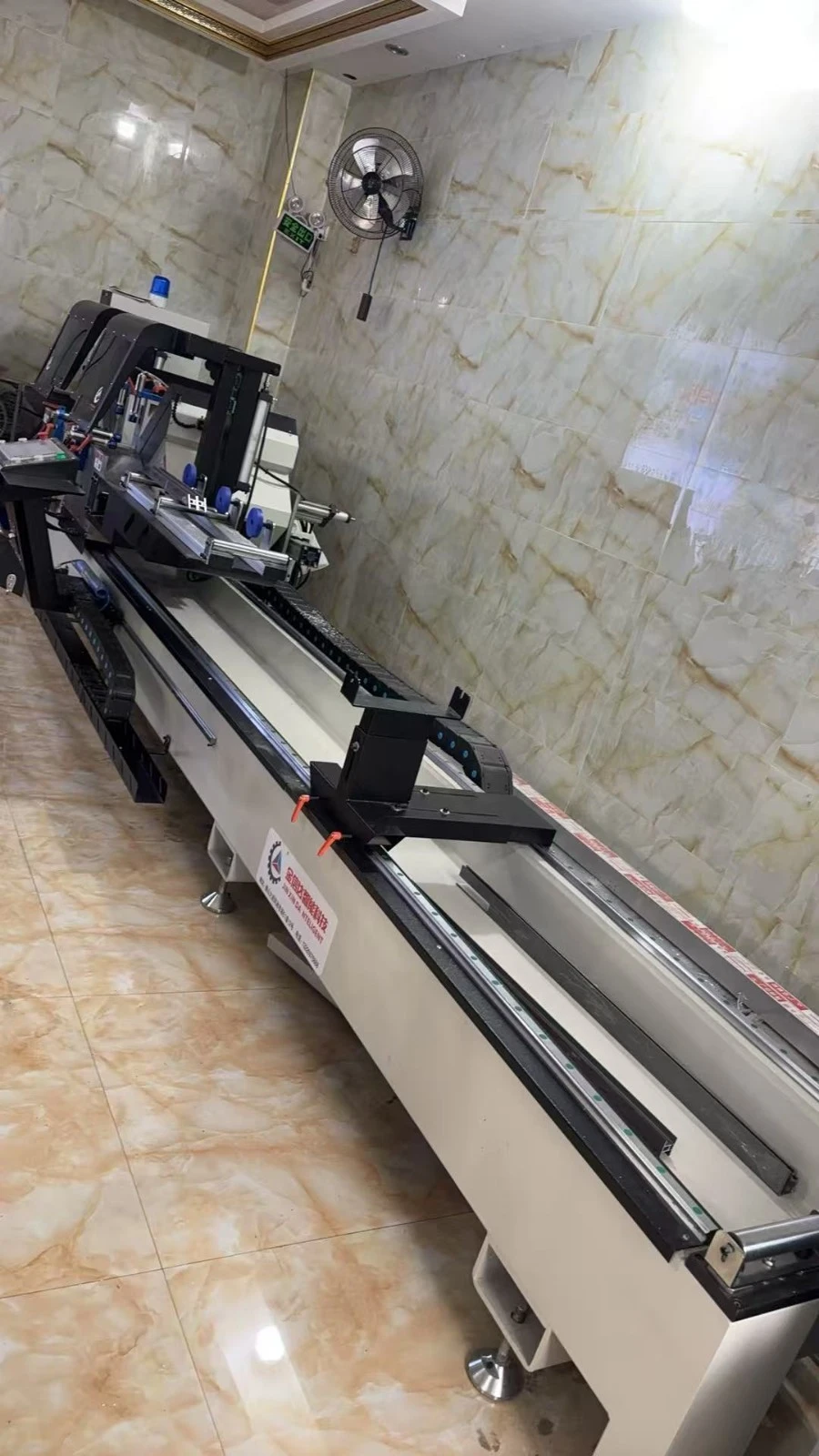

The 550 Digital Display Double Head Saw is a heavy-duty, manual-positioning cutting solution upgraded with a high-precision digital measurement system. Engineered for aluminum profiles, uPVC extrusions, and non-ferrous metals. This machine bridges the gap between fully manual saws and costly CNC centers, providing small-to-medium fabricators with high-accuracy length verification, zero parallax error, and low maintenance costs under continuous industrial workloads.
| Input Power Supply | 380V 50Hz, Three-phase Four-wire |
| Input Power | 6.0KW |
| Working Air Pressure | 0.5-0.8MPa |
| Saw Blade Speed | 3100R/min |
| Saw Blade Specification | D=500mm, d=30mm |
| Cutting Length | 380-4200mm (CNC ultra-long & ultra-short cutting function) |
| Cutting Angle | 45° / 90° |
| Maximum Cutting Width | 190mm |
| Body Frame Sheet Metal | Qingxian, Hebei |
| Guide Rail, Rack and Pinion | (Italian PEK brand) |
| Bearing | SKF (Sweden) |
| Reducer | Shanghai Alfa |
| Circuit Breaker | Zhejiang Tengen Group |
| Relay | Zhejiang Tengen Group |
| Phase Sequence Protector | Zhejiang Tengen Group |
| Pneumatic Component | Air Filter Regulator, Solenoid Valve, Cylinder, Pneumatic Fitting, Pressure Reducing Valve (Taiwan AIRTAC) |
| Spindle Motor | 3kW × 2 (Guangdong Zhongchuang) |
| Body Surface Treatment | Electrostatic Spraying |
| CNC System | (Red Sea) |
Core Process & Performance Advantages
±0.15 mm Magnetic Scale Readout
IP67-protected magnetic sensor displays real-time dimensions instantly, eliminating human parallax and tape-measure errors.
Air-Hydraulic Feed Stabilization
Pneumatic-hydraulic dampening cushions the blade stroke to prevent edge chipping, delivering a burr-free mirror finish.
1,800 kg Vibration-Damped Frame
Annealed and gantry-milled steel chassis ensures parallel guide rails never warp, preserving long-term geometric cutting accuracy.
Dual-Angle Automatic Pivoting
Heavy pneumatic cylinders toggle between 90° and 45° via a single switch; precision-ground hard-stops eliminate manual recalibration.
Global Customization & OEM Services
We tailor our digital display equipment to match your workshop's infrastructure and market standards:
Electrical Compliance Packaging
Standard electrical hardware features Schneider or Siemens low-voltage switchgear. Custom 3-phase transformers are available for global grid compatibility: 220V, 380V, 415V, or 440V at either 50Hz or 60Hz.
Optimized Measuring Beds
Standard 4,200 mm manual-travel cutting beds can be extended to 5,000 mm or 6,000 mm to accommodate oversized industrial extrusions or solar panel frame production.
Bespoke Clamping & Support
Customized V-groove nylon clamping jaws are available to safely cradle complex architectural profiles without marring painted or anodized surfaces.
Factory Strength & Services
4 Lines & 1,000+ Units Output: Equipped with 4 automated production lines delivering over 1,000 machines annually to reliably fulfill large-volume B2B orders.
10+ Years R&D Expertise: Over a decade of specialization in high-grade aluminum alloy and curtain wall processing machinery, backed by an advanced Computer Integrated Manufacturing System (CIMS) for cost-efficient production.
Precision Factory Layouts: Complimentary, custom workshop floor-plan designs and equipment configurations tailored exactly to your profile specifications to maximize floor space and prevent machinery waste.
1-Year Warranty & Logistics: Full 12-month factory guarantee (excluding wear parts) with rapid parts dispatch, complete technical documentation, and flexible global shipping terms (FOB, CIF, DDP).
Upstream Supply Chain Support: Free industry matching with verified raw-material and accessory suppliers to help seamlessly set up or scale your window and door manufacturing plant.
Shipping, Packing & Logistics Support
Moisture & Rust Defense
All bare machined metal components are treated with long-lasting tactical anti-rust oil, wrapped in multi-layered PE stretch wrap, and packed with commercial silica gel desiccant packs.
Export-Grade Crating
The machinery is bolted securely down to a heavy-duty timber base, surrounded by an ISPM 15 certified fumigated wooden crate built to withstand top-loading and sea container movement.
Import Document Bundles
Every machine dispatch includes a clear technical kit containing clean electrical schematics, foundation blueprints, user operating manuals, a Certificate of Origin (for duty reduction), and compliance declarations (CE/CSA).
FAQ
Q: How does the digital display system hold up in dusty workshop environments compared to standard tape measures?
A: The system utilizes an enclosed magnetic scale sensor rated at IP67 protection against dust, fine aluminum chips, and oil mist. Unlike optical scales, magnetic sensors operate through induction, meaning ambient shop debris will not affect the measurement reading or cause calibration drift over time.
Q: How is the precision counter powered, and what happens if our plant loses power?
A: The digital display counter operates on an independent, long-life lithium battery backup circuit embedded within the unit, or via a stabilized step-down DC circuit from the main electrical cabinet. The system features non-volatile memory, ensuring that your current calibration and absolute zero position points are saved even during an abrupt factory power outage.
Q: What is the maximum wall thickness this 550 mm saw blade model can cleanly cut through?
A: With dual 2.2 kW high-torque motors and a solid Ø550 mm blade diameter, this machine can easily slice through architectural aluminum profiles with wall thicknesses up to 4.5 mm or 5.0 mm. For solid bar stock or thick structural profiles, the feeding rate can be dialed down smoothly using the step-less hydraulic dampening valve.
Q: Since the head movement is manual, is it difficult for an operator to slide the head into position all day?
A: No. The movable cutting head is mounted on high-precision linear square guide rails using low-friction recirculating ball-bearing blocks. This setup allows a single operator to move the heavy cutting head smoothly with minimal physical effort. Once positioned, a pneumatic toggle valve locks the head instantly onto the bed frame.
Q: Does this digital display model require complex calibration when it arrives at our facility?
A: Not at all. Every machine is calibrated against master gauges right on our factory floor before crating. Once unboxed at your site, you only need to connect the main power supply and the compressed air line. A simple test cut is recommended to verify the absolute zero offset point on the counter, a quick 5-minute procedure detailed in our video manual.
Q: What happens if the digital display unit breaks down? Can we still use the machine?
A: Yes. As an engineered fail-safe, the machine bed includes a laser-etched metric backup scale embedded alongside the guide rails. If the electronics are damaged, your operators can temporarily switch to manual sight-scaling to keep your production line running while we express-ship a modular replacement display panel.
