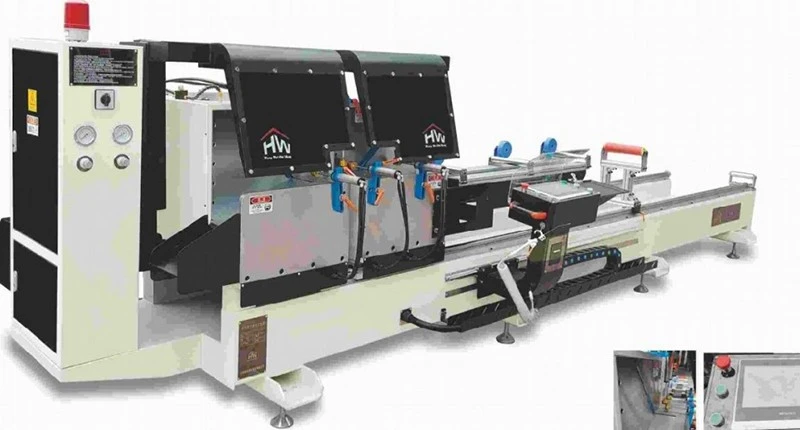

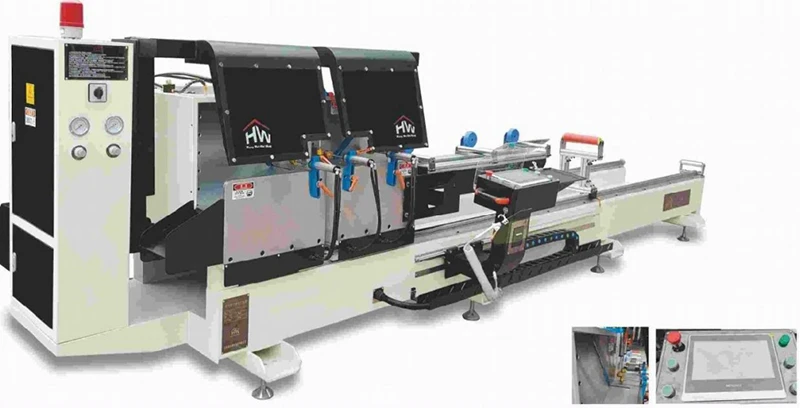

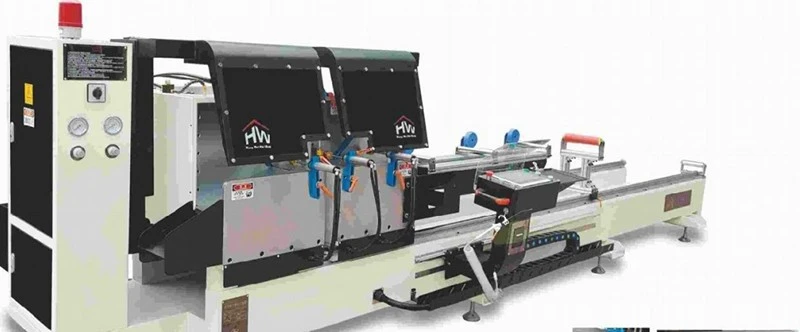

Product Introduction
The 550 CNC 45° Double Head Saw is utilized fixed 45° cast-iron head structures instead of variable pivots, eliminating angle drifting entirely, maintaining strict alignment over years of high-volume use. Driven by a high-torque CNC servo positioning system and dual 550mm carbide blades, it delivers identical, burr-free cuts at high speed. Built for continuous 3-shift industrial operation, this machine bridges the gap between high throughput and uncompromising dimensional repeatability.
Technical Parameters
| Input Power Supply | 380V 50Hz |
| Input Power | 6.0Kw |
| Working Air Pressure | 0.5~0.8Mpa |
| Saw Blade Speed | 3100r/min |
| Saw Blade Specification | D=620mm, d=30mm |
| Cutting Angle | 45° |
| Cutting Length | 380-4200mm |
| Overall Dimensions | 5800×1750×1600mm |
Product Features
Zero Angle Deviation: Eliminates variable pivots to ensure permanent 45 degree alignment, preventing the structural wear and joint gaps caused by long-term machine operation.
Burr-Free Mirror Finish: Combines Japanese carbide blades with atomized air-oil cooling to achieve an ultra-smooth cut, eliminating the need for secondary manual deburring.
High-Precision Auto Positioning: Utilizes Yaskawa or Delta servo systems and helical rack transmission to achieve reliable, automated positioning accuracy within 0.1 mm.
Zero Manual Calculation Risk: Processes cutting lists directly via USB or network and automatically calculates profile width compensation, removing human math errors from the shop floor.
Doubled Production Output: Fires both cutting heads simultaneously in a single cycle, completing cuts on both profile ends at once to maximize factory throughput.
Customization & OEM/ODM Capabilities
To match unique factory layouts and diverse profile specifications, our engineering team provides modular modifications:
Extended Cutting Lengths
Extension of the effective CNC positioning bed up to 6,000mm or 7,000mm for specialized industrial extrusions.
ERP & MES Software Integration
Custom API bridging to sync your cutting machine directly with Orgadata LogiKal, Klaes, or your in-house window design software.
Non-Marring Clamping Systems
Specialized vertical and horizontal pneumatic clamping jaws lined with high-strength vulcanized rubber to protect sensitive, powder-coated, or polished architectural surfaces.
Localized Electrical Components
Full configuration with Schneider/Siemens electrical components and local safety certifications (CE, UL, CSA) tailored to your country's industrial regulations.
Factory Strength & Services
4 Lines & 1,000+ Units Output: Equipped with 4 automated production lines delivering over 1,000 machines annually to reliably fulfill large-volume B2B orders.
10+ Years R&D Expertise: Over a decade of specialization in high-grade aluminum alloy and curtain wall processing machinery, backed by an advanced Computer Integrated Manufacturing System (CIMS) for cost-efficient production.
Precision Factory Layouts: Complimentary, custom workshop floor-plan designs and equipment configurations tailored exactly to your profile specifications to maximize floor space and prevent machinery waste.
1-Year Warranty & Logistics: Full 12-month factory guarantee (excluding wear parts) with rapid parts dispatch, complete technical documentation, and flexible global shipping terms (FOB, CIF, DDP).
Upstream Supply Chain Support: Free industry matching with verified raw-material and accessory suppliers to help seamlessly set up or scale your window and door manufacturing plant.
Logistics, Packaging & Global Delivery Standards
To guarantee the machine arrives in factory-calibrated condition without structural warping or rust during long ocean transits, we enforce a strict packaging protocol:
Anti-Rust Treatment
All bare-metal surfaces and linear guides are coated with premium industrial rust-preventative oil.
Moisture-Proof Barrier
The entire machine body is vacuum-sealed in heavy-duty VCI (Volatile Corrosion Inhibitor) plastic film to block salt spray and humidity.
Structural Tie-Down
Mounted securely onto a heavy-duty, heat-treated ISPM-15 compliant fumigated wooden pallet or steel skid, with anti-vibration rubber pads under the base.
Container Optimization
Packaged dimensionally to fit seamlessly inside standard 20GP or 40HQ containers, leaving clear access points for forklift unloading at your facility.
FAQ
Q: What is the maximum cross-section profile height and width this 550mm blade can cut at 45°?
A: At a fixed 45° angle, the 550mm blade handles profiles with a maximum height of 150mm and a maximum width of 230mm. If your production involves ultra-wide industrial extrusions or structural curtain wall profiles exceeding these dimensions, please send us your CAD drawings. We can customize the blade stroke or recommend our 600mm/650mm series.
Q: What brands are used for the critical CNC, electrical, and pneumatic components?
A: To ensure minimal downtime and easy local sourcing of spare parts, our standard configuration uses global tier-1 industrial brands: CNC Servo Systems (Yaskawa/Delta), Electrical Components (Schneider), Pneumatics (SMC/Airtac), and Linear Guide Rails (HIWIN/TBI). Full component datasheets are provided during the quoting stage.
Q: How does the machine ensure safety compliance in automated mass production environments?
A: Safety is built into the workflow. The machine features fully enclosed pneumatic safety shields that automatically drop before cutting begins. It is also equipped with dual-hand concurrent start buttons (preventing the operator's hands from entering the work zone), rear emergency stop switches, and can be optioned with safety light curtains that immediately halt all motion if the perimeter is breached.
Q: How is the machine calibrated after overseas transit, and what does the commissioning process look like?
A: Every machine undergoes a 48-hour continuous dry-run test and a 3-point laser calibration at our factory before shipping. A detailed QA report is included in the toolbox. For setup, we provide comprehensive HD video walk-throughs, complete wiring schematics, and offer real-time remote video commissioning support via our technical engineering team. On-site engineering dispatch is also available for large-scale facility setups.
Q: What is the typical lead time from deposit to FOB/CIF delivery, and how are spare parts handled?
A: Our standard manufacturing lead time is 20 to 25 business days. Customized configurations (such as custom voltage or extended beds) require 30 to 35 days. For spare parts, we include a "First-Year Wear Kit" (including proximity switches, seals, and a replacement blade) free of charge with the machine. Critical replacements can be dispatched via DHL/FedEx Express within 24 hours.
