Product Overview

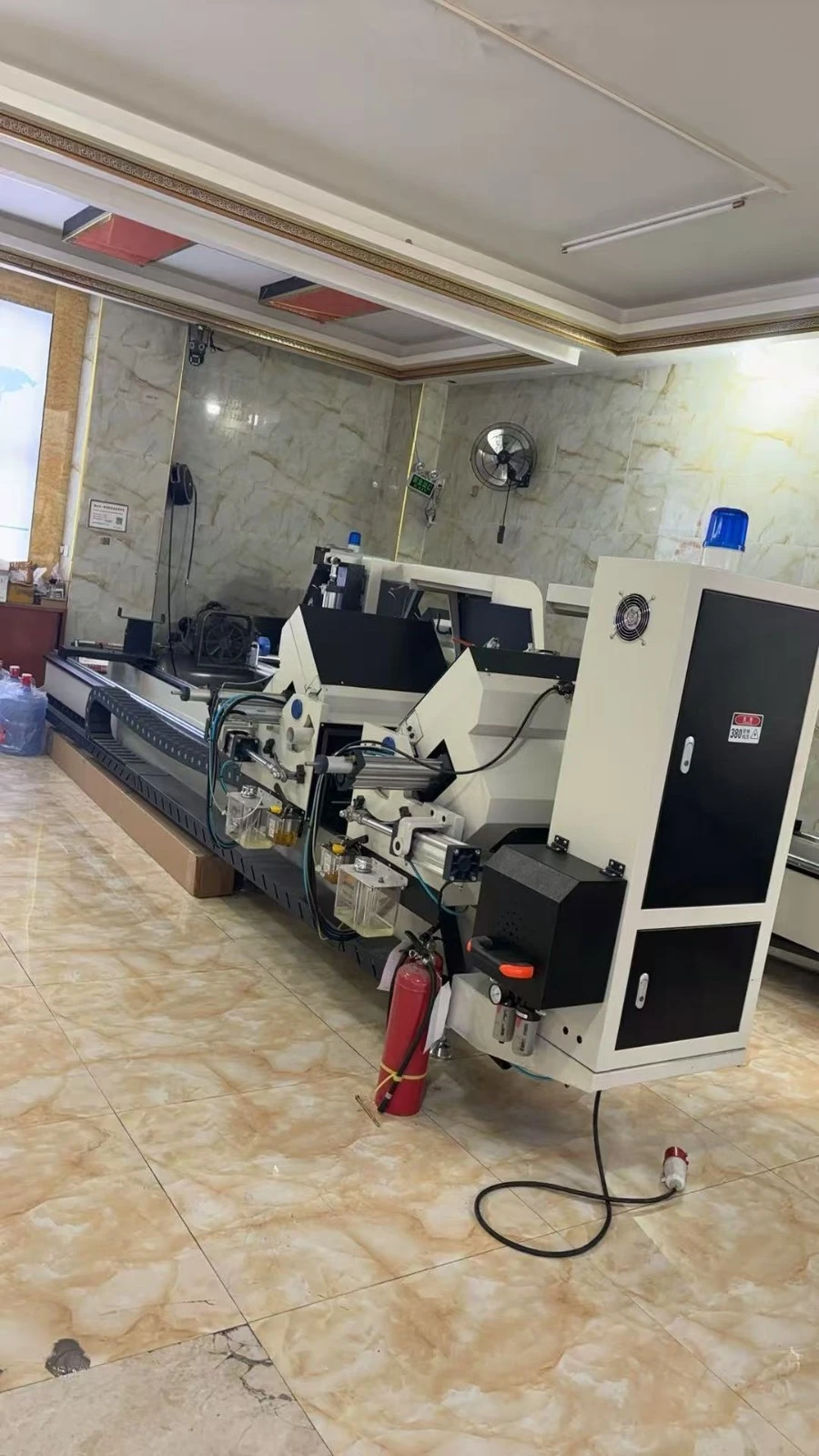

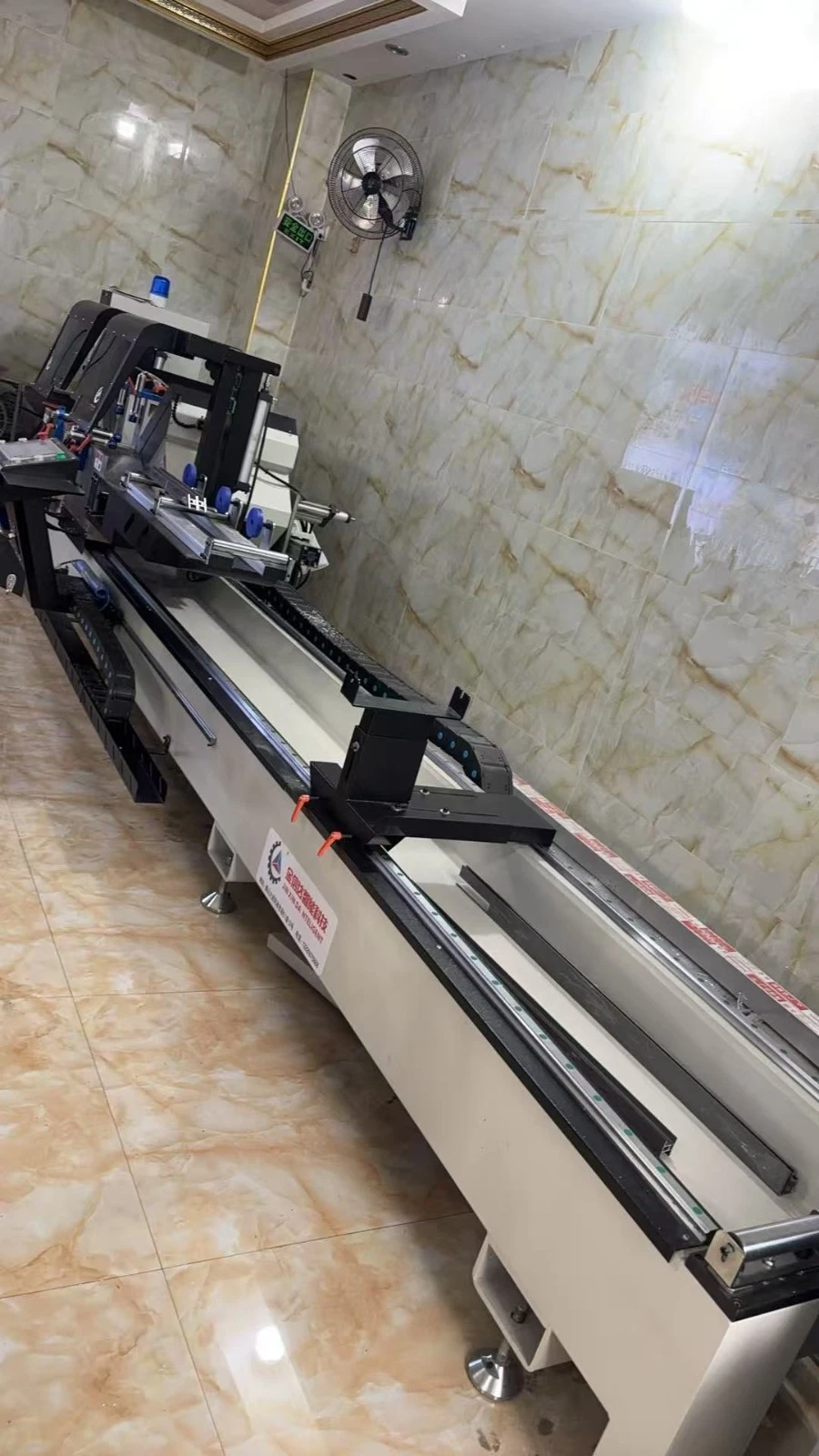

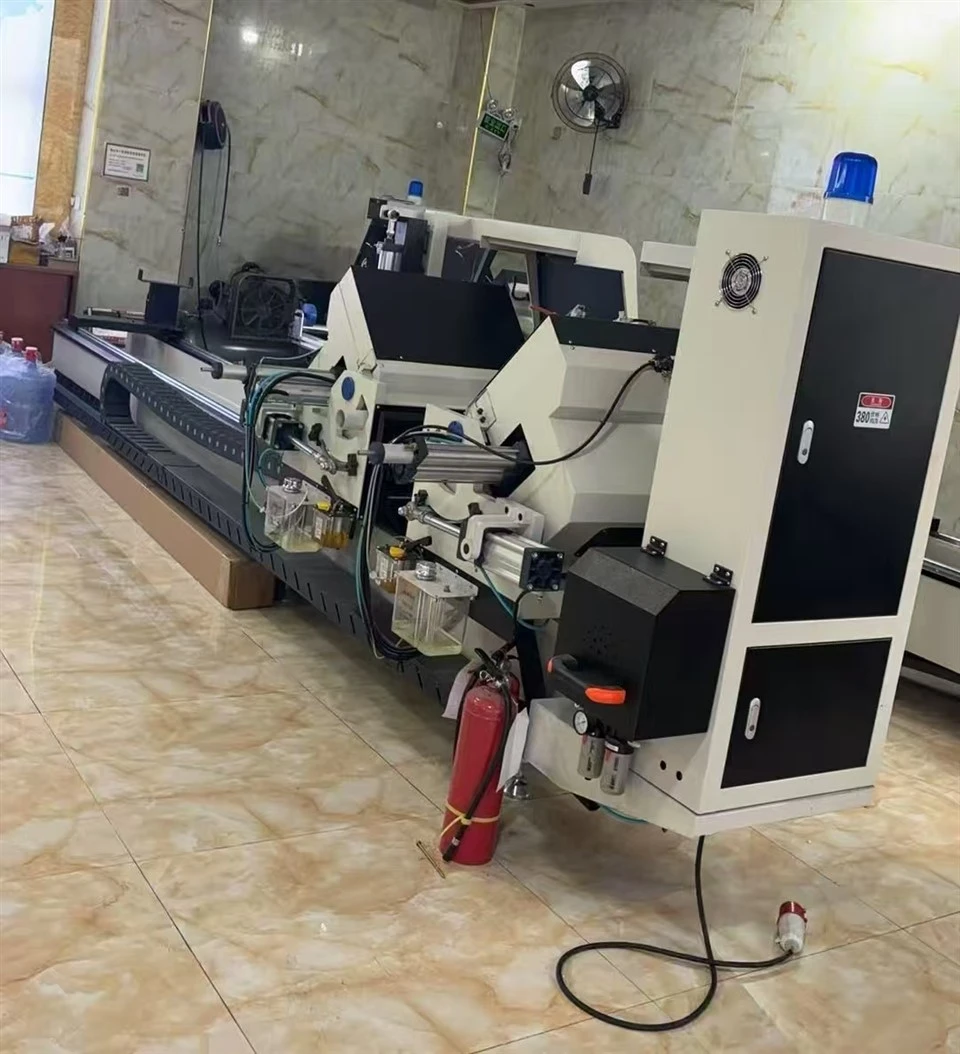

The 550 CNC Dual Head Aluminium Cutting Saw is a heavy-duty, high-precision cutting system engineered for architectural aluminum curtain walls, window/door profiles, and industrial extrusions. Designed for 24/7 continuous industrial operation, this machine ensures strict dimensional repeatability and burr-free finishes across high-volume production batches.
| Input Power Supply | 380V 50Hz, Three‑phase Four‑wire |
| Input Power | 6.0KW |
| Working Air Pressure | 0.5‑0.8MPa |
| Saw Blade Speed | 3100R/min |
| Saw Blade Specification | D=500mm, d=30mm |
| Cutting Length | 380‑4200mm (CNC ultra‑long & ultra‑short cutting function) |
| Cutting Angle | 45° / 90° |
| Maximum Cutting Width | 190mm |
Core Process & Performance Advantages
±0.1 mm Repeatability
Driven by closed-loop servo motors and precision helical racks; movable head locks pneumatically on dual HIWIN linear rails to eliminate high-impact displacement.
Burr-Free Mirror Finish
Built-in micro-droplet oil mist cooling pairs with Ø550 mm ultra-thin carbide blades to prevent thermal warp and eliminate secondary deburring.
2,500 kg Heavy-Duty Frame
Annealed and gantry-milled welded steel bed guarantees zero structural distortion over a 10-year lifespan under continuous shifts.
Smart 6-Point Clamping
4 horizontal and 2 vertical pneumatic clamps with auto-pressure adjustment; prevents wall collapse on thin profiles (under 1.5 mm) and secures heavy profiles (over 5.0 mm).
Global Customization & OEM Services
We provide comprehensive tailormade configurations to integrate seamlessly into your existing production ecosystem:
Voltage & Electrical Adherence
Custom transformer configurations for all international power grids, including 220V/380V/415V/440V (50Hz or 60Hz, 3-Phase). Electrical cabinets feature Schneider, Siemens, or Omron low-voltage components for localized replacement part sourcing.
Software & Data Integration
The CNC system can be pre-configured with automatic optimization software to reduce profile scrap down to less than 2%. Supports MES/ERP integration, barcode scanning input, and real-time label printing for smart factory tracing.
Extended Working Beds
Standard 4,200 mm cutting bed can be extended to 5,000 mm or 6,000 mm based on your structural project specifications.
Factory Strength & Services
4 Lines & 1,000+ Units Output: Equipped with 4 automated production lines delivering over 1,000 machines annually to reliably fulfill large-volume B2B orders.
10+ Years R&D Expertise: Over a decade of specialization in high-grade aluminum alloy and curtain wall processing machinery, backed by an advanced Computer Integrated Manufacturing System (CIMS) for cost-efficient production.
Precision Factory Layouts: Complimentary, custom workshop floor-plan designs and equipment configurations tailored exactly to your profile specifications to maximize floor space and prevent machinery waste.
Year Warranty & Logistics: Full 12-month factory guarantee (excluding wear parts) with rapid parts dispatch, complete technical documentation, and flexible global shipping terms (FOB, CIF, DDP).
Upstream Supply Chain Support: Free industry matching with verified raw-material and accessory suppliers to help seamlessly set up or scale your window and door manufacturing plant.
Shipping, Packing & Logistics Support
We treat international logistics with the same precision as our cutting technology to guarantee your equipment arrives factory-fresh and ready to deploy.
Sea Freight Packaging
The machine is thoroughly coated with anti-rust industrial oil, wrapped in thick vacuum-sealed moisture barrier film, and secured inside a heavy-duty ISPM 15 compliant fumigated wooden crate.
Container Loading Securing
Machine bases are bolted down directly to the wooden crate runners, which are then braced inside the sea container using high-tensile steel wire ropes to prevent any shifting during transit.
Full Documentation
Every shipment includes detailed commercial invoices, packing lists, Certificate of Origin (Form E/F/FTA to reduce local import duties), CE/CSA compliance certificates, and a step-by-step unboxing/installation blueprint.
FAQ
Q: How do you ensure the cutting accuracy of the machine before it leaves the factory?
A: Every machine undergoes a rigorous 48-hour continuous dry-run test followed by actual profile cutting trials. We utilize laser interferometers to calibrate the linear positioning accuracy and digital angle meters to verify the 45° and 90° cuts. A signed factory inspection report and a video of your specific machine cutting profiles are provided before final balance payment.
Q: What international safety and industrial standards does this cutting saw comply with?
A: The machine is fully CE compliant. The standard layout features a complete pneumatic safety shield that drops automatically before cutting begins, dual-hand synchronization start buttons to eliminate operator limb hazards, an integrated emergency stop circuit, and a safety interlock system that shuts down the spindles instantly if the cabinet doors are opened.
Q: Can the CNC control system read raw cutting data directly from window and door design software?
A: Yes. The controller features an open data interface. It can import cutting list files (such as .csv, .txt, or Excel formats) via USB or an RJ45 network cable. We have successfully integrated our machines with major industry software suites like Orgadata LogiKal, PrefSuite, ReynaPro, and SchüCal.
Q: What is your technical support protocol if a mechanical component fails in our factory?
A: We offer a 12-month comprehensive warranty on all structural and mechanical components. In case of an operational issue, our engineering team provides a diagnostic assessment via video link within 24 hours. Since we utilize global standard brands like Schneider for electrics and HIWIN for rails, replacement parts can be sourced locally or shipped via international express (DHL/FedEx/UPS) within 3 to 5 business days.
Q: What are the wear parts on this machine, and how long do they typically last?
A: The primary wear items are the carbide saw blades and the nylon clamping pads. Under standard 8-hour daily production of architectural aluminum profiles, a high-quality carbide blade can operate for 3 to 4 weeks before requiring sharpening. Each blade can be re-sharpened 5 to 8 times before needing a full core replacement.
Q: Do you provide on-site installation and factory commissioning services for international buyers?
A: We offer two support paths. For most regions, we provide highly detailed, English-narrated video manuals and comprehensive circuit diagrams that allow your local plant technicians to complete the setup easily. Alternatively, for large-scale production line projects, we can dispatch field application engineers to your facility for physical assembly, fine-tuning calibration, and operator team training (buyer covers round-trip airfare, accommodation, and a daily engineering fee).
