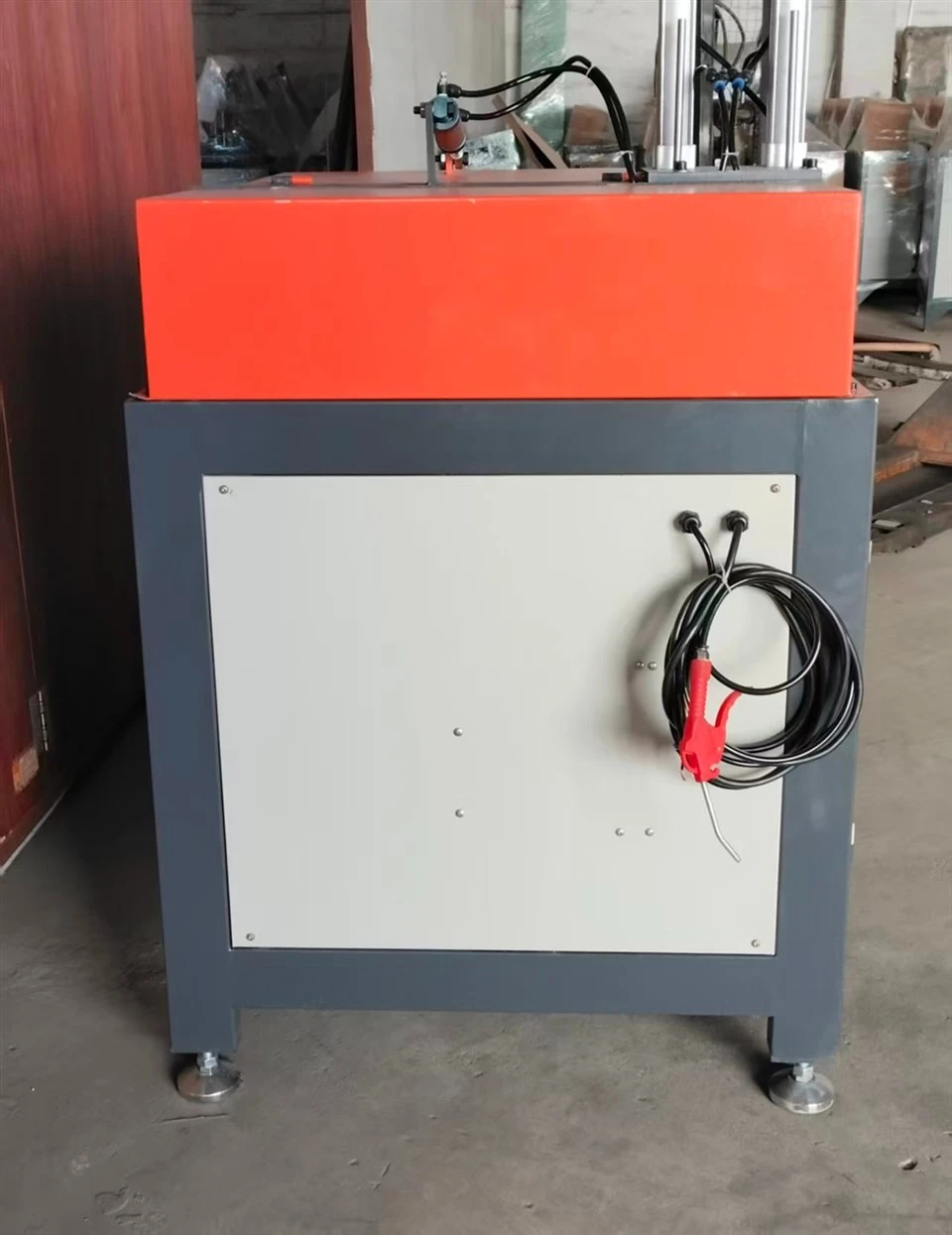

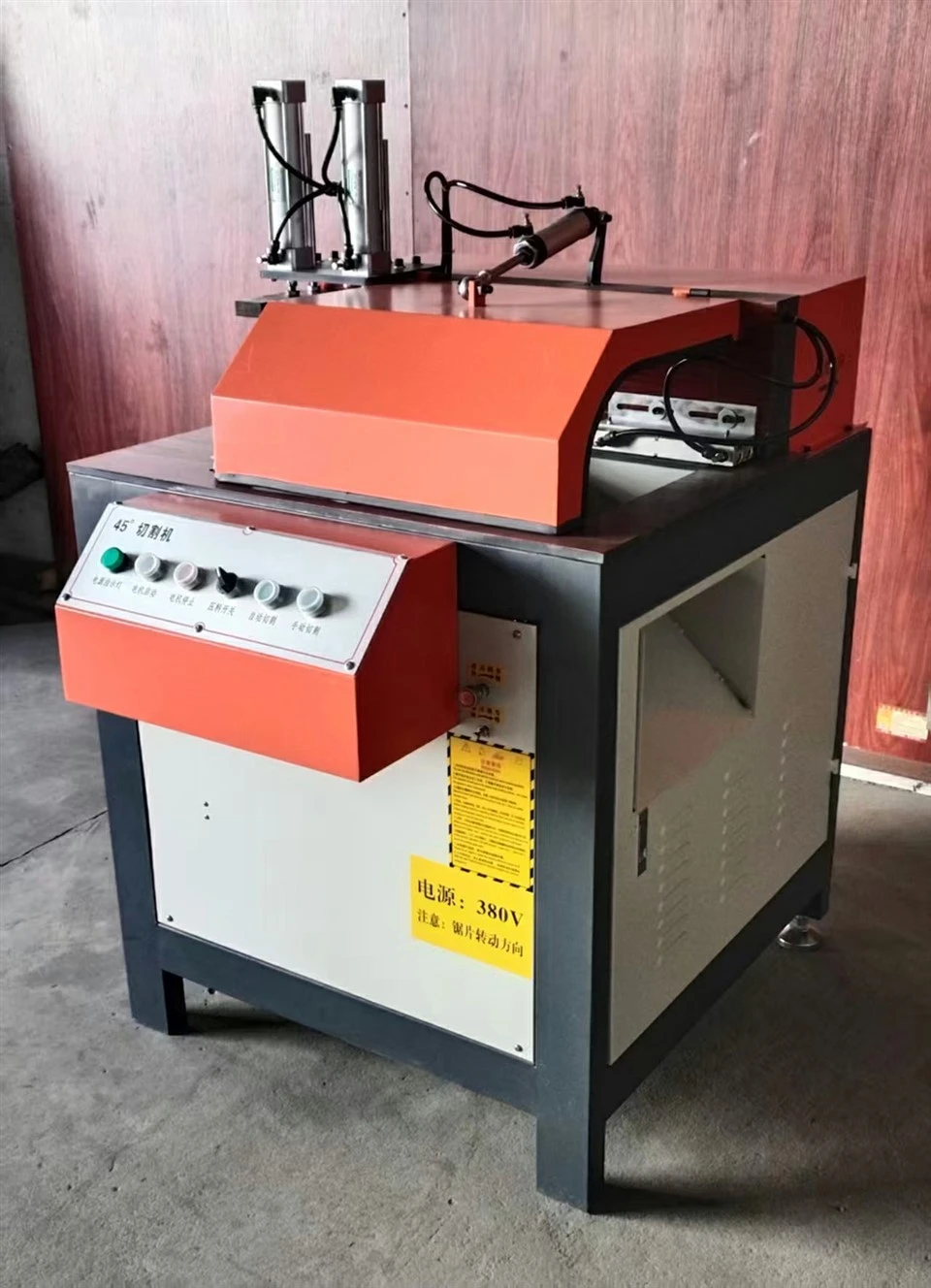

18inch 45° Cutting Saw



The 18-inch 45°Cutting Saw is an industrial device specifically designed for high-precision 45° cutting of aluminum alloy profiles. It is suitable for processing aluminum profiles for doors and windows, curtain walls, photovoltaic frames, and other industrial applications.





High-Precision Cutting: Utilizes precision guideways, a rigid spindle, and a mechanical positioning structure to ensure a stable 45° cutting angle, improving profile splicing accuracy and meeting the consistency requirements of mass production.



High-Rigidity Machine Body: The integral welded steel structure undergoes stress-relief treatment, enhancing equipment stability and making it suitable for long-term continuous operation, reducing processing errors caused by machine body deformation.



Stable Power System: Equipped with an industrial-grade high-efficiency motor, combined with a pneumatic-hydraulic damping feed system, it ensures smoother saw blade operation, improving cutting quality and extending saw blade life.



Multi-Point Pneumatic Clamping: The horizontal and vertical combined clamping mechanism allows for adjustable clamping pressure according to different profiles, reducing cutting vibration and preventing deformation of thin-walled profiles.



International Standard Components: Supports configurations from international brands such as Schneider, Siemens, AirTAC, and SMC, facilitating spare parts procurement for overseas customers and reducing maintenance costs.



Safety Protection Design: Equipped with a fully enclosed protective cover, safety interlocks, and emergency stop devices, meeting industrial equipment safety requirements and improving operational safety.





Item	Standard Specification	Optional Configuration
Product Name	18 Inch 45° Precision Cutting Saw	OEM / Private Label
Saw Blade Diameter	Ø450 mm (18")	Ø500 / Ø600 mm
Cutting Angle	Fixed 45°	45°–90°
Max. Cutting Width	150 mm	Customized
Max. Cutting Height	120 mm	Customized
Saw Blade Speed	2800 rpm	Variable Frequency Control
Motor Power	2.2 / 3.0 kW	Customized
Power Supply	380V / 50Hz / 3 Phase	220V / 415V / 440V / 460V
Air Pressure	0.6–0.8 MPa	Standard Quick Connector
Feeding System	Manual	Servo Automatic Feeding
Positioning	Mechanical Stop	Digital / Servo Positioning
Control System	Semi-Automatic	PLC + Touch Screen
Cooling System	Optional	MQL Spray Cooling
Certification	CE / RoHS	Customized





Suitable For Processing Various Profiles
Applicable to architectural aluminum profiles, curtain wall profiles, photovoltaic frames, and industrial aluminum profiles. Customized cutting solutions can be provided according to customer product dimensions.



High-quality 45° Corner Splicing
Ensures cutting angle and end face quality, reducing subsequent trimming and improving the efficiency of door, window, and curtain wall splicing.



Supports Continuous Production
Can be used with automatic feeding, roller worktables, and other equipment to meet batch production needs.









Precision Component Machining: The machine body, spindle seat, and key structural components are manufactured using CNC machining equipment to ensure dimensional accuracy and assembly consistency of each component.



High-Strength Machine Body Welding: The overall steel structure machine body undergoes professional welding and stress-relief treatment to improve the rigidity of the entire machine and its long-term operational stability.



Precision Assembly and Debugging: Technical personnel complete the assembly of the spindle, guide rails, electrical and pneumatic systems, and perform overall machine calibration to ensure stable operation.



Factory Trial Run: Each machine undergoes no-load and simulated working condition trial runs before leaving the factory to confirm that the cutting, control, and safety systems are operating normally before delivery.







Brand Customization: Supports brand customization of equipment logo, body color, nameplate, packaging, and product information, helping customers build their own brands.



Function Customization: Saw blade specifications, feeding methods, control systems, fixtures, and automation configurations can be customized according to product process requirements.



Electrical Customization: Supports voltage, frequency, plug standards, and electrical specifications for different countries and regions, facilitating rapid market entry for equipment.



Technical Support: Provides equipment design solutions, drawing confirmation, production tracking, and technical documentation to assist customers in completing OEM project development.





Export Standard Packaging: Uses fumigation-free plywood crates for packaging, with rust, shock, and moisture protection for key components, suitable for international sea and land transportation.



Container Loading Solutions: Develops reasonable container loading solutions based on equipment size and order quantity to improve container utilization and reduce transportation costs.



Pre-shipment Confirmation: Provides photos, videos, and factory inspection documents of the entire machine before packaging. Shipment is arranged after confirmation.



Global Logistics Support: Supports FOB, CIF, EXW and other trade methods, and can coordinate with customer-designated freight forwarders or logistics companies for shipment.





Technical Support: Provides guidance on equipment installation, commissioning, operation and maintenance, and can provide remote support via video conferencing, images, or technical documents.



Quality Assurance: The entire machine comes with a quality guarantee service; the scope and period of the warranty can be executed according to the contract.



Rapid Response: The after-sales team responds promptly to customer technical inquiries, assists in analyzing equipment operation problems, and provides solutions.



Technical Documentation: Provides English operation manuals, electrical diagrams, a list of vulnerable parts, and maintenance instructions to facilitate daily use and maintenance for customers.
