Product Introduction

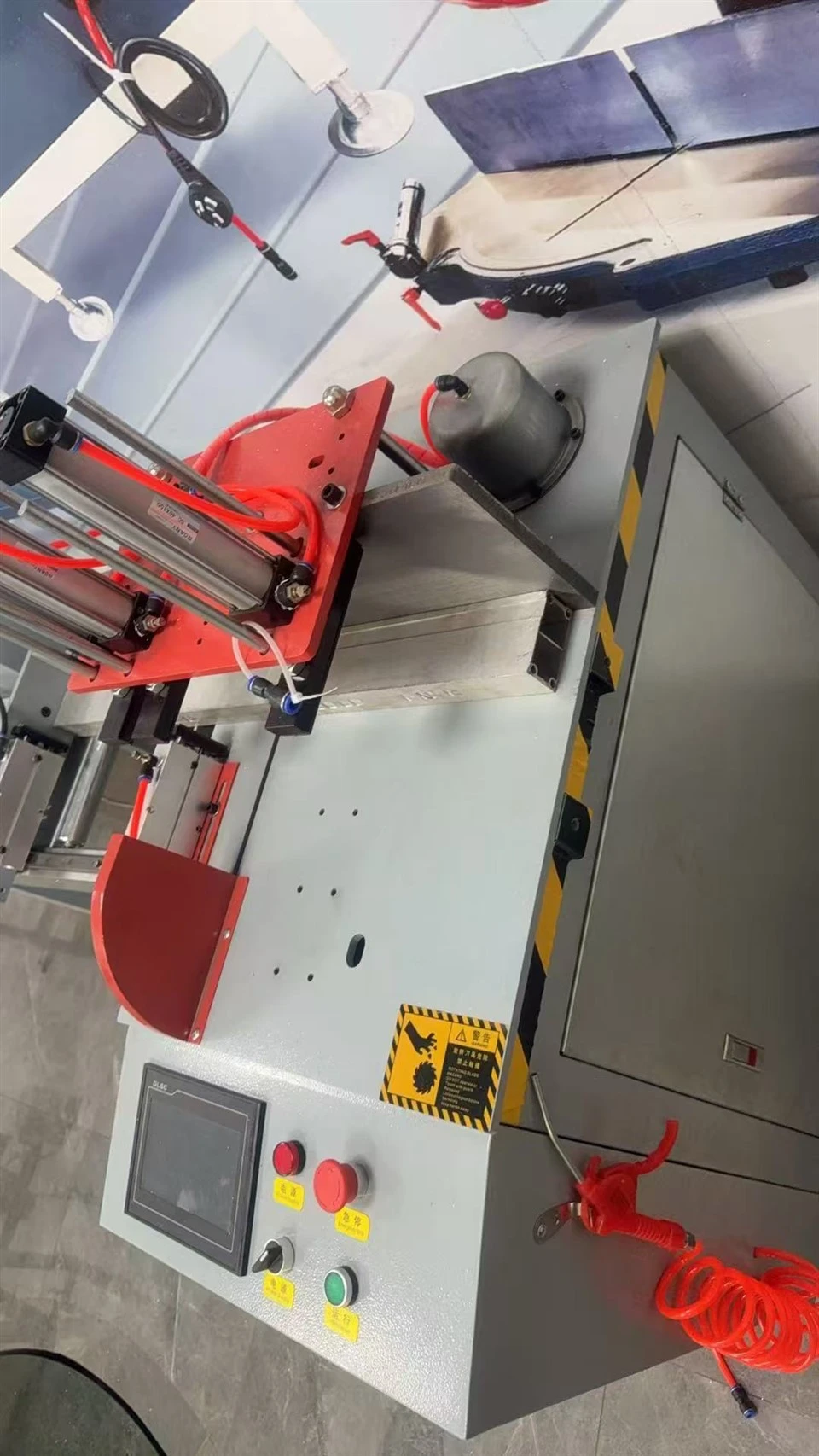

The 90°Auto Feed Cutting Machine is an industrial automation system designed for the high-efficiency, batch 90-degree cutting of aluminum profiles; it is suitable for the standardized, continuous production of profiles for doors, windows, curtain walls, and industrial applications.
Core Features
Servo-Driven Automatic Feeding System
Utilizes a servo-motor-driven feeding mechanism to ensure precise, automatic length-based material transport.
Servo-Driven Automatic Feeding System
Utilizes a servo-motor-driven feeding mechanism to ensure precise, automatic length-based material transport.
PLC Control System
Features an industrial-grade PLC control system with a touchscreen interface, supporting parameter-based settings (length, quantity, and speed).
Heavy-Duty Machine Frame
Constructed from a welded steel frame that has undergone stress-relief treatment; this enhances structural stability during long-term, high-frequency operation and minimizes the impact of vibration on cutting quality.
High-Speed Sawing Unit
Equipped with a high-speed sawing unit specifically designed for aluminum, boosting cutting efficiency and improving cut quality.
Safety Protection System
Includes safety guards and an emergency stop system, complying with general safety standards for export equipment.
Technical Specifications
|
Item |
Specification |
|
Machine Type |
90° Auto Feed Cutting Machine |
|
Cutting Angle |
90° |
|
Saw Blade Diameter |
450 mm (optional 500 mm) |
|
Motor Power |
3.0 – 4.0 kW |
|
Spindle Speed |
2800 – 3200 rpm |
|
Feeding System |
Servo Motor Driven |
|
Feeding Accuracy |
±0.1 – 0.2 mm (depends on profile) |
|
Cutting Accuracy |
±0.1 – 0.2 mm (standard condition) |
|
Max Cutting Width |
260 mm (customizable) |
|
Max Cutting Height |
120 mm (customizable) |
|
Feeding Length |
600 – 3000 mm (customizable) |
|
Air Pressure |
0.6 – 0.8 MPa |
|
Control System |
PLC + Touch Screen HMI |
|
Voltage |
380V / 3 Phase / 50Hz (customizable 220V / 415V / 60Hz) |
|
Machine Weight |
1200 – 1600 kg |
|
Operation Mode |
Automatic / Semi-Automatic |
Workflow
Step 1 Material Loading
Aluminum profiles are placed onto the feeding platform-either manually or via an automated loading system-ready for processing.
Step 2 Parameter Setting
Cutting length and quantity are entered via the HMI, and the system automatically generates the processing task.
Step 3 Servo Feeding
The servo system feeds the material precisely according to the set dimensions, ensuring batch consistency.
Step 4 Clamping & Positioning
A pneumatic clamping system secures the material to prevent displacement during cutting.
Step 5 90° Cutting
The high-speed sawing system performs a standard 90° cut.
Step 6 Output & Cycle
Finished parts are automatically discharged, and the system proceeds to the next production cycle.
Applicable Materials
Aluminum Door & Window Profiles
Thermal Break Aluminum Sections
Curtain Wall Profiles
Industrial Aluminum Extrusions
Solar Frame Aluminum Profiles
Furniture Aluminum Frames
Decorative Aluminum Profiles
PVC Profiles(optional)
Applications
- Aluminum Window & Door Factories
- Curtain Wall Processing Plants
- Industrial Aluminum Fabrication Workshops
- Solar Frame Manufacturing Lines
- Building Material Production Companies
- OEM / ODM Manufacturing Facilities
- Export-oriented Processing Centers

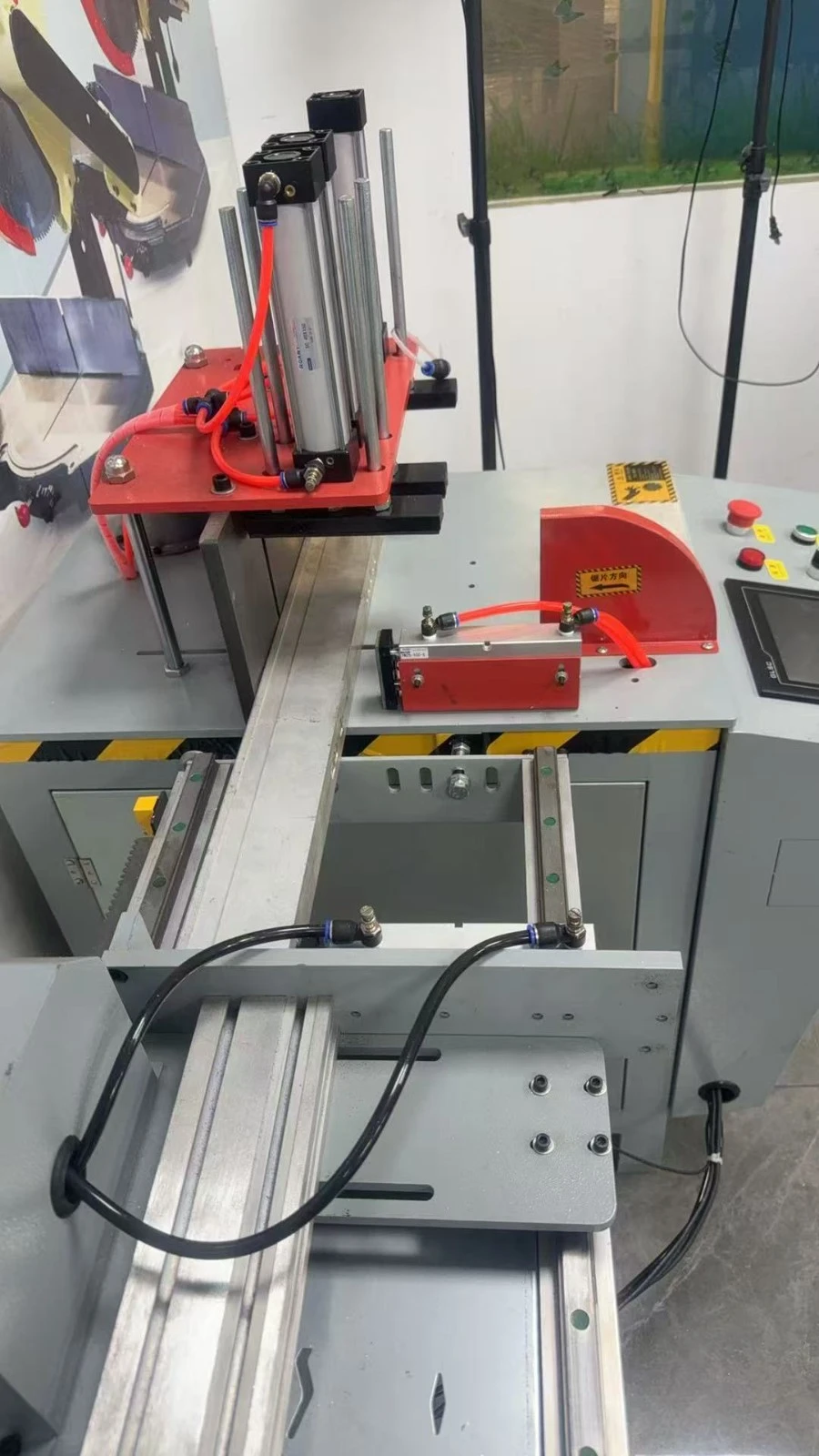

Machine Details
Sawing Unit
Performs 90° cutting operations, ensuring cutting efficiency and stability.
Servo Feeding System
Provides stable, fixed-length feeding capabilities and enhances processing consistency.
Pneumatic Clamping
Ensures the material remains securely held during the cutting process.
PLC Control System
Enables parameter-based operation and automated control.
Linear Guide System
Ensures smooth feeding and high repeat positioning accuracy.
Machine Frame
Provides rigid structural support and minimizes the impact of vibration.
Optional Configurations
Automatic Loading System
Automatic Unloading System
Mist Lubrication System (MQL)
Industrial Dust Collector
Barcode Scanning System
Extended Feeding Length System
Customized Voltage System
Smart Control Upgrade System
Customization Capability
OEM Branding Support
ODM Machine Design
Voltage & Frequency Customization
Feeding Length Adjustment
Cutting Capacity Modification
Control System Upgrade
Color & Appearance Customization
Integration with Production Line
Quality Control System
Incoming Inspection
Basic quality checks on steel materials, electrical components, and critical parts.
01
Assembly Control
Structural and system assembly performed according to standard procedures.
02
Accuracy Testing
Operational testing of the feeding and cutting systems.
03
Trial Cutting
Continuous trial cutting using standard aluminum profiles to verify operational status.
04
Final Inspection
Inspection of the machine's overall operation, safety systems, and appearance.
05
Packaging & Shipping
Anti-rust treatment before shipment
Protective film wrapping
Reinforced wooden export crate
Shock-resistant internal securing
Container loading reinforcement
Ready for sea freight / international logistics
Company Strengths
Extensive Industry Experience
Kanghong Building Materials Technology Co., Ltd. specializes in R&D, manufacturing, and sales of aluminum door, window, and curtain wall equipment. With years of industry focus, the company has built mature production experience and technical know-how.
Strong R&D Capability
Supported by a professional R&D team, the company continuously develops and integrates advanced technologies to improve machining accuracy, production efficiency, and machine stability.
Modern Manufacturing System
Equipped with advanced production facilities and CIMS management systems, we integrate design, manufacturing, and quality control to ensure consistent product quality and efficient delivery.
Strict Quality Control
A full-process quality inspection system is implemented from raw materials to final shipment, ensuring stable performance and reliable machine operation.
Customized Solutions
We provide tailored equipment and production line solutions based on customer profiles, production capacity, and process requirements.
Professional Technical Support
We offer layout design, installation guidance, operator training, and after-sales support, with a 12-month warranty (excluding wear parts) to ensure smooth production startup.
Global Market Experience
With stable quality and professional service, our equipment is exported worldwide and trusted by distributors, manufacturers, and engineering contractors.
FAQ
Q: What materials can this 90° Auto Feed Cutting Machine process?
A: The machine is mainly designed for aluminum profiles, including window & door profiles, curtain wall profiles, industrial aluminum, and solar frame sections. PVC profiles can also be processed with optional configuration.
Q: What is the cutting accuracy of the machine?
A: Standard repeat cutting accuracy is around ±0.1–0.2 mm, depending on profile size, material hardness, and working conditions.
Q: Can the machine be customized for different profile sizes?
A: Yes. Feeding length, cutting width/height, and clamping structure can all be customized according to your profile drawings and production requirements.
Q: What is the production capacity of this machine?
A: Capacity depends on profile length and operator setup, but the automatic feeding system significantly improves cycle time compared to manual cutting systems.
Q: Is OEM or private label service available?
A: Yes. We support OEM branding, machine color customization, and private label production for distributors and local agents.
Q: What power supply options are available?
A: Standard configuration is 380V / 3-phase / 50Hz. We also provide customized options such as 220V, 415V, and 60Hz for different countries.
Q: How long is the delivery time?
A: Standard machines typically require 20–30 days. Customized configurations usually take 30–60 days depending on technical requirements.
Q: Do you provide installation and training support?
A: Yes. We provide detailed installation manuals, operation videos, and remote technical support to ensure smooth commissioning.
Q: What is the warranty period?
A: The standard warranty is 12 months (excluding wear parts). Long-term spare parts and technical support are also available.
Q: How do you ensure machine quality before shipment?
A: Each machine undergoes full assembly inspection, trial cutting tests, and 24–72 hour running tests before delivery to ensure stable performance.
