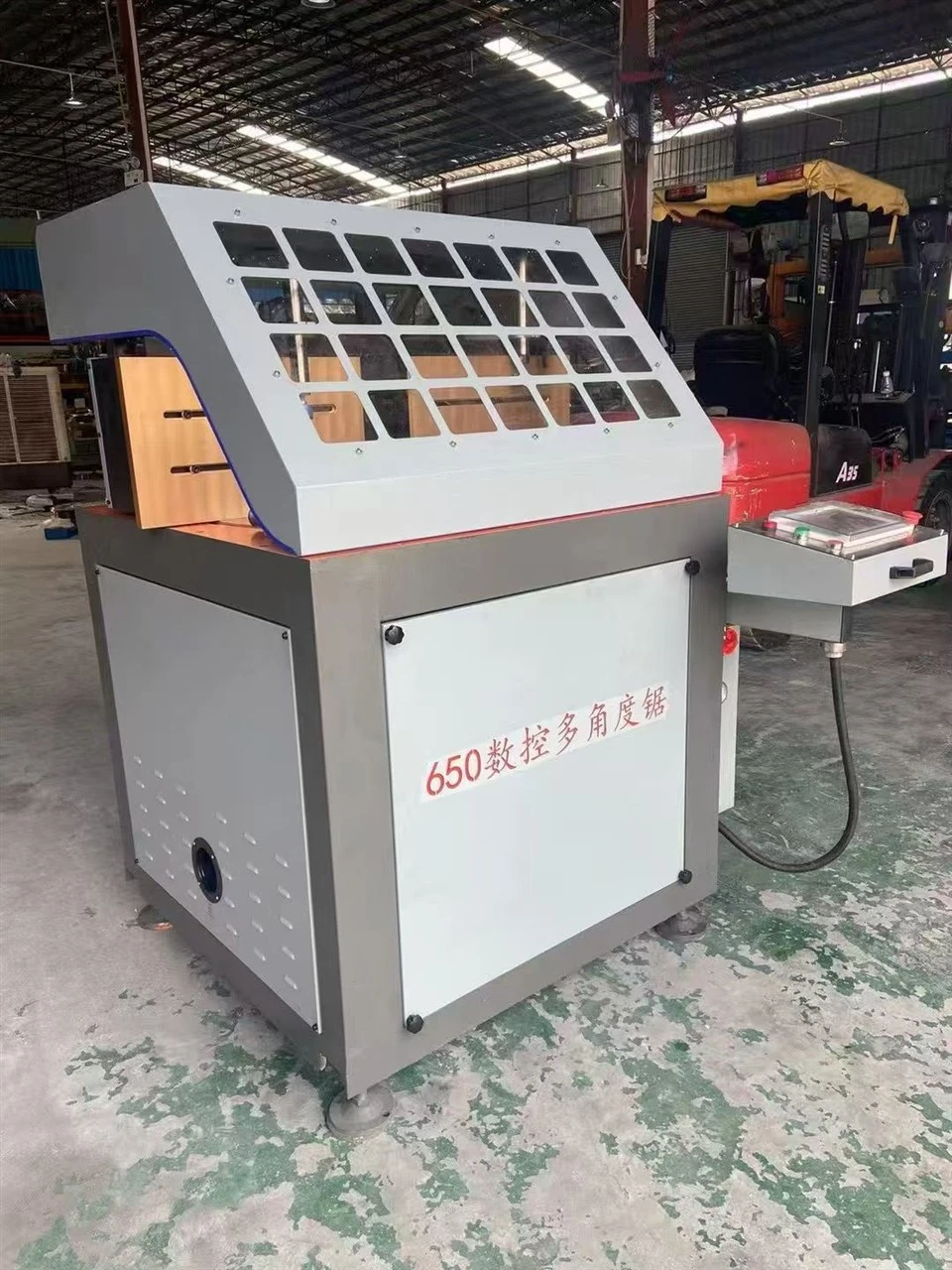

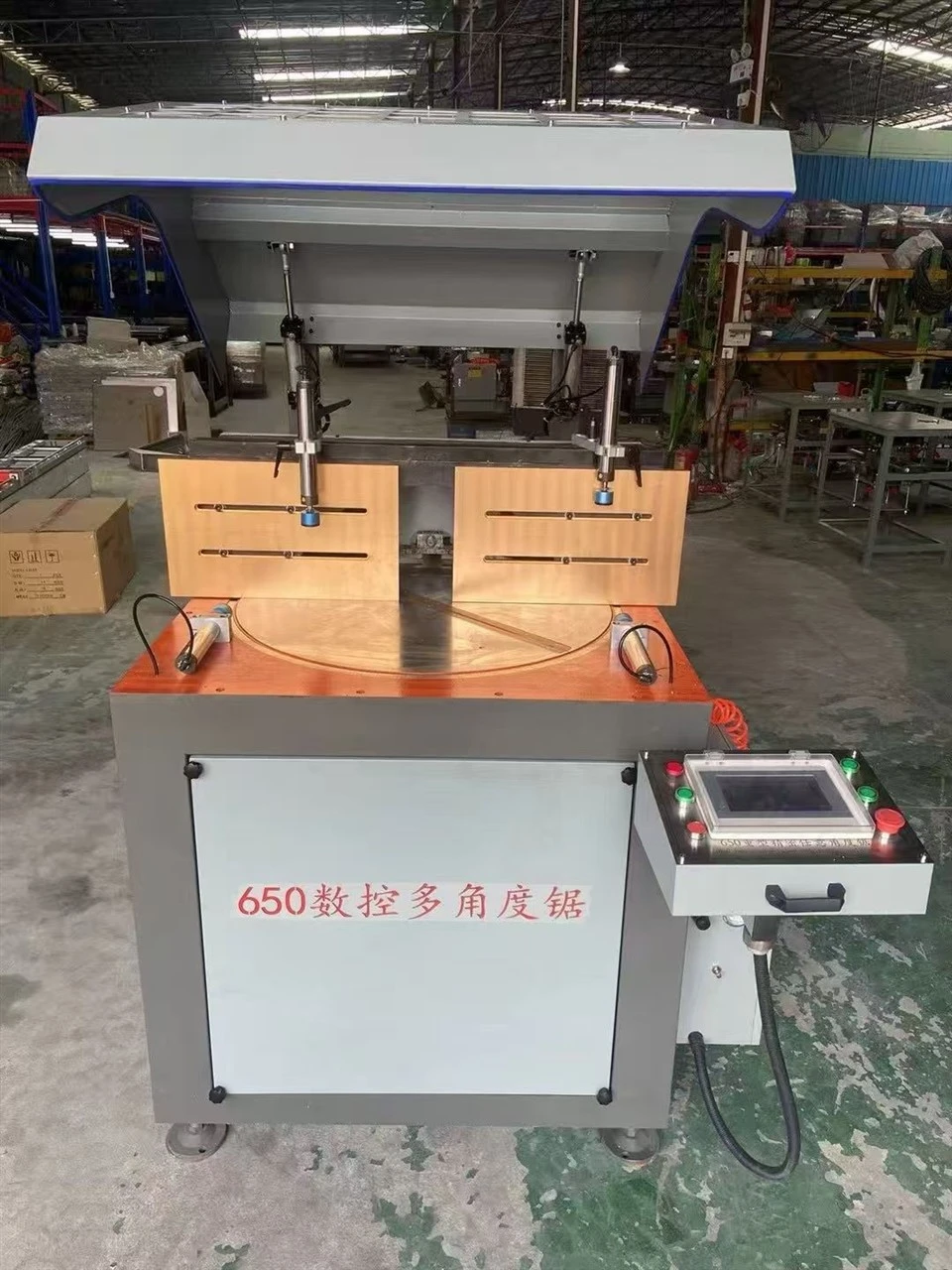

Product Overview
The 650 CNC OX Sunroom Saw is engineered for high-precision, high-volume cutting of heavy-duty, large-section aluminum profiles. Designed specifically for sunrooms, conservatories, pergolas, curtain walls, and architectural aluminum systems, this machine combines a 650 mm carbide blade with an advanced CNC OX-axis positioning system to ensure burr-free cuts, accurate angles, and reliable continuous operation in industrial fabrication environments.
Technical Parameters
|
Power Supply |
3‑Phase 380V 50Hz |
|
Motor Power |
4KW |
|
Speed |
2840r/min |
|
Working Air Pressure |
0.5–0.8Mpa |
|
Max. 90° Cutting Width |
525mm |
|
Max. 90° Cutting Height |
243mm |
|
Saw Blade Rotation Angle |
5°–175° |
|
Saw Blade Specification |
650mm × 30mm × 120T |
|
Overall Dimensions |
1250mm × 1450mm × 1650mm |
|
Weight |
940Kg |
Performance & Technical Highlights
Large Section Cutting Capacity: Equipped with a 650 mm industrial-grade carbide saw blade, capable of processing oversized and thick-walled aluminum extrusions without deformation.
High-Precision CNC Positioning: Eliminates manual layout errors. The integrated OX-axis control system automatically executes multi-angle, multi-length positioning with a repeatability tolerance of ≤ ±0.1 mm.
Structural Stability: Built on a normalized, heavy-duty welded steel machine frame to minimize harmonic vibration, preserving spindle alignment and extending blade service life.
Clean Cut Finish: Powered by a high-speed, dynamically balanced spindle motor (up to 2,800–3,200 RPM), delivering a mirror-like finish that cuts down post-processing and deburring time.
Industrial Automation Ready: Standard pneumatic clamping securely fixes complex profiles, while the optional digital control interface integrates seamlessly with mainstream ERP and optimization software via barcode scanning.
Global Customization Services
We provide comprehensive bespoke engineering solutions to match your specific factory workflow and national grid requirements:
Electrical Grid Adaptability
Tailored power configurations including 380V/415V/480V at 50Hz or 60Hz (3-Phase).
Automation Upgrades
Optional servo-driven automatic material feeding conveyor networks, automatic waste discharge chutes, and mist lubrication cooling systems for extended blade life.
Software Integration
CNC controllers can be pre-configured to accept .dxf or .csv cutting lists from external design software, featuring local language interfaces (English, German, Spanish, French, Arabic, etc.).
Component Specification
Option to upgrade critical electrical components to Siemens, Schneider, or Omron brands based on your spare-parts inventory preferences.
Quality Control & Verification Process
Every machine goes through a rigorous 72-hour factory testing protocol before dispatch:
Ultrasonic Weld Inspection
Verifies the structural integrity of the heavy-duty steel base.
Laser Interferometer Calibration
Tests the linear guide alignment and positioning accuracy over the maximum travel length.
Spindle Runout Testing
Ensures radial and axial runout is within 0.01 mm to eliminate cutting burrs.
Full-Load Trial Runs
Cuts diverse heavy-aluminum profiles at maximum speed to verify power consistency and pneumatic stability.
Factory Strength & Services
4 Lines & 1,000+ Units Output: Equipped with 4 automated production lines delivering over 1,000 machines annually to reliably fulfill large-volume B2B orders.
10+ Years R&D Expertise: Over a decade of specialization in high-grade aluminum alloy and curtain wall processing machinery, backed by an advanced Computer Integrated Manufacturing System (CIMS) for cost-efficient production.
Precision Factory Layouts: Complimentary, custom workshop floor-plan designs and equipment configurations tailored exactly to your profile specifications to maximize floor space and prevent machinery waste.
1-Year Warranty & Logistics: Full 12-month factory guarantee (excluding wear parts) with rapid parts dispatch, complete technical documentation, and flexible global shipping terms (FOB, CIF, DDP).
Upstream Supply Chain Support: Free industry matching with verified raw-material and accessory suppliers to help seamlessly set up or scale your window and door manufacturing plant.
Packaging, Logistics & International Shipping
Protective Packing
The machine body is coated with anti-rust oil, wrapped in heavy-duty moisture-proof VCI film, and enclosed in an IPPC-certified seaworthy wooden crate reinforced with steel channel frames.
Flexible Incoterms
We support global shipping under FOB, CIF, CFR, and DDP terms, coordinating with leading maritime freight lines to optimize transit safety.
Technical Documentation
Shipped complete with a comprehensive English instruction manual, electrical schematics, pneumatic layout diagrams, and a localized toolpack.
FAQ
Q: What are the specific maximum cutting dimensions (width and height) that the 650 mm blade can accommodate?
A: The 650 mm blade allows for an expanded cutting cross-section, easily handling profiles up to 200 mm in height and 350 mm in width at a 90-degree angle. Precise cutting charts for specific architectural profiles can be provided upon request.
Q: How does the OX-axis control system handle non-standard angle cuts for complex conservatory structures?
A: The OX-axis controller features a multi-angle algorithm. For standard units, it locks automatically at 45° and 90°. For non-standard geometric designs required in customized sunrooms, the angle can be inputted directly into the CNC interface, and the blade adjusts automatically via servo motors.
Q: Is the CNC software compatible with our existing window and door design software?
A: Yes. The upgraded CNC system supports open-data protocol interfaces. It can read generated cutting files directly via USB or local network connection, eliminating manual data entry and preventing operator transcription errors.
Q: What specific maintenance is required to ensure the ±0.1 mm cutting accuracy over long-term operations?
A: Daily tasks are minimal: cleaning aluminum chips off the linear rails and checking the pneumatic pressure. The machine features centralized lubrication points for the guide rails. We recommend checking blade sharpness every 5,000 cuts depending on the wall thickness of the aluminum profiles being processed.
Q: Can you accommodate specific electrical standards for the North American or European markets?
A: Absolutely. We construct the electrical cabinets to meet local safety regulations, using components rated for 220V, 380V, 415V, or 480V tri-phase configurations, ensuring trouble-free local compliance inspections at your production facility.
Q: What type of after-sales support do you offer to overseas buyers if a component failure occurs?
A: We offer 24/7 remote technical diagnostics via video linkage. All standard wear parts are universally sourced, and proprietary CNC or mechanical components are stocked in our warehouse for priority international express dispatch (DHL/FedEx/TNT) within 48 hours.
Q: How do you protect the high-precision alignment of the saw during long-distance ocean freight transit?
A: The saw head assembly and the linear guide carriage are mechanically locked to the heavy-duty chassis using high-tensile transit bolts. This eliminates any kinetic movement or vibration shifts during sea transport. The entire machine is anchored inside the wooden crate to prevent shifting.
