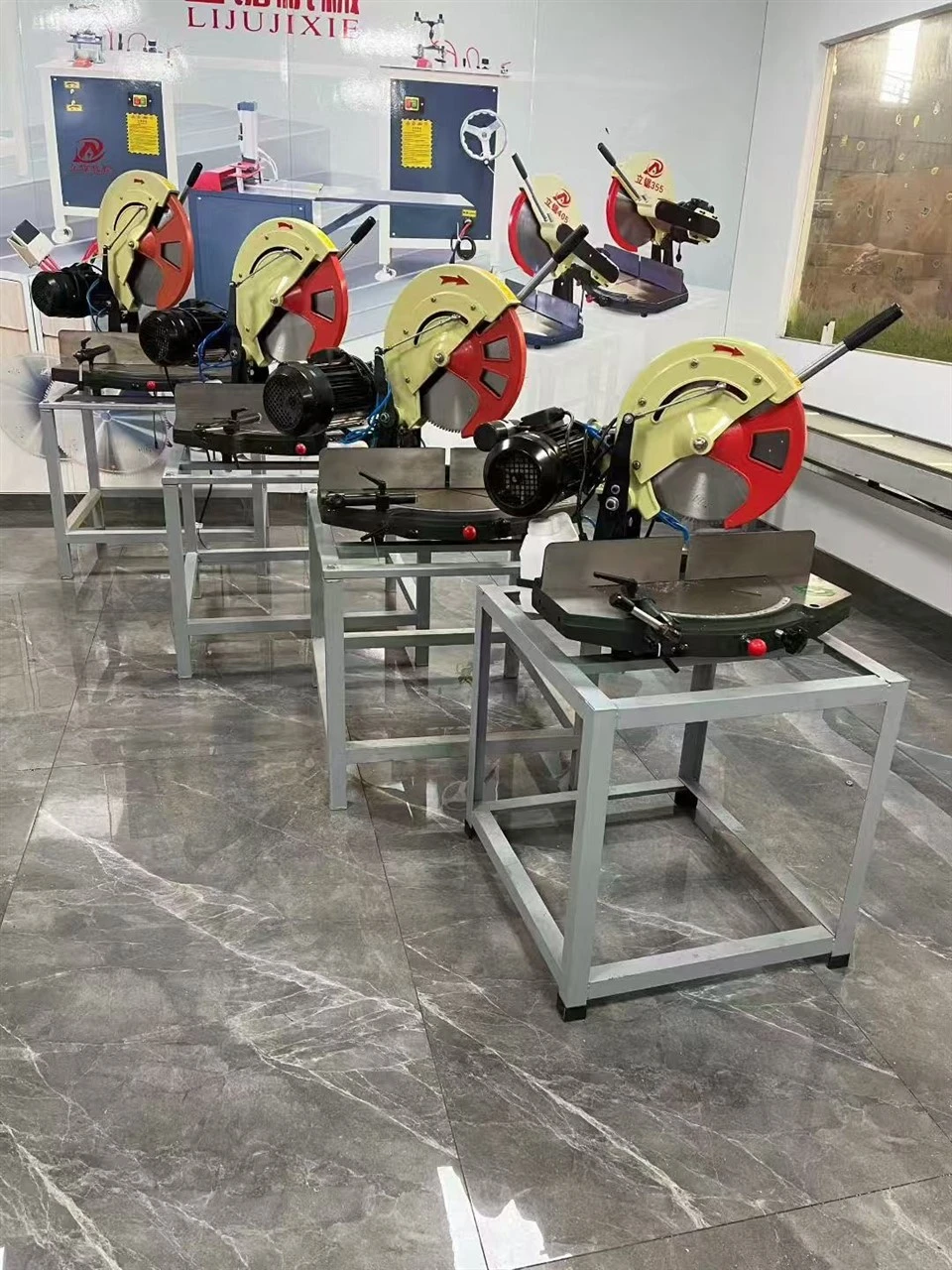

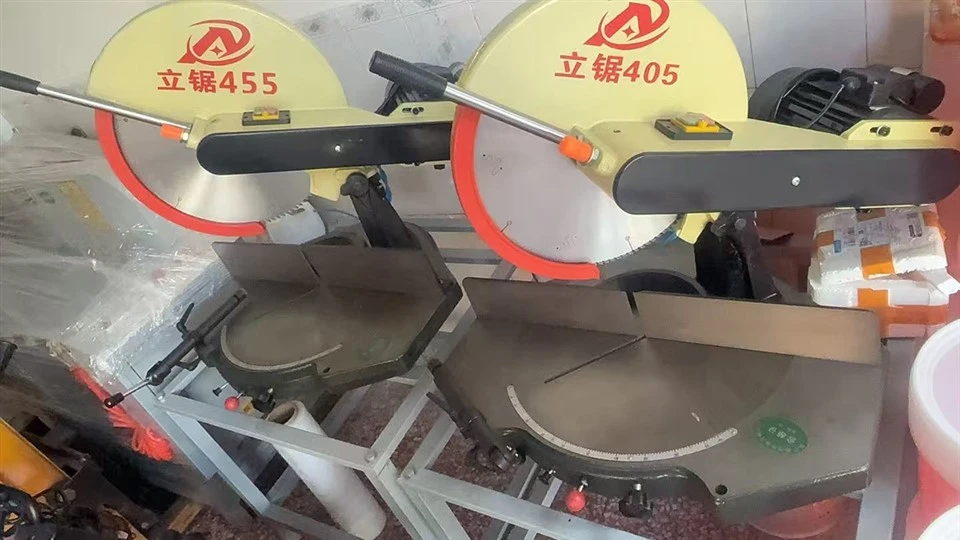

Product Overview
The 16 Inch Turntable Miter Saw is a heavy-duty, high-precision cutting system engineered for processing aluminum extrusions used in windows, doors, curtain walls, and architectural aluminum systems. Featuring an industrial 16-inch (405 mm) carbide saw blade and a calibrated, heavy-cast turntable mechanism, this machine delivers stable, burr-free miter cuts and repeatable angular accuracy for high-throughput fabrication facilities.
16" Performance Parameters
|
Product Name |
Precision Rotary Table Aluminum Cutting Machine |
|
Model |
405B / 16" |
|
Working Voltage |
220V / 380V |
|
Motor Power |
2.2KW |
|
Spindle Speed |
2800RPM |
|
Saw Blade Specification |
405 × 3.2 × 120T |
|
45° Cutting Capacity |
H120 × W180 mm |
|
90° Cutting Capacity |
H140 × W140 mm |
|
Overall Dimensions |
780 × 780 × 1300 mm |
Performance & Technical Highlights
Precision Indexing Turntable: The heavy-duty cast iron turntable rotates smoothly to deliver precise miter angles, featuring mechanical indexing stops at standard angles and a high-resolution scale for custom cuts.
Burr-Free Micro-Finish: Driven by a high-speed, dynamically balanced spindle motor executing 2,800–3,600 RPM, ensuring mirror-like cut surfaces on aluminum profiles, minimizing secondary deburring cycles.
Pneumatic Clamping & Safety: Equipped with dual-axis (horizontal and vertical) pneumatic clamps that lock the profile automatically before the blade engages, preventing material slippage and ensuring operator safety.
Vibration-Damped Frame: The normalized, heavy-gauge steel welded chassis absorbs operational harmonics, preventing blade deflection and protecting linear alignment during continuous multi-shift production.
Extensible Automation: Designed with modular electrical and mechanical interfaces to seamlessly integrate with digital angle displays, mist cooling systems, or automatic feeding tables.
Global Customization Services
We tailor our machine configurations to align with your regional industrial regulations and specific manufacturing workflows:
Electrical Grid Compatibility
Electrical cabinets can be wired for 220V, 380V, 415V, or 480V (3-Phase, 50Hz or 60Hz) to match your factory's local power infrastructure.
Digital Upgrades
Optional integration of a High-Resolution Digital Angle Display or a programmable touchscreen CNC controller for automated angle positioning.
Advanced Lubrication
Optional venturi-principle mist lubrication systems that spray atomized cooling fluid onto the blade teeth, extending blade lifespan by up to 35% when cutting thick industrial profiles.

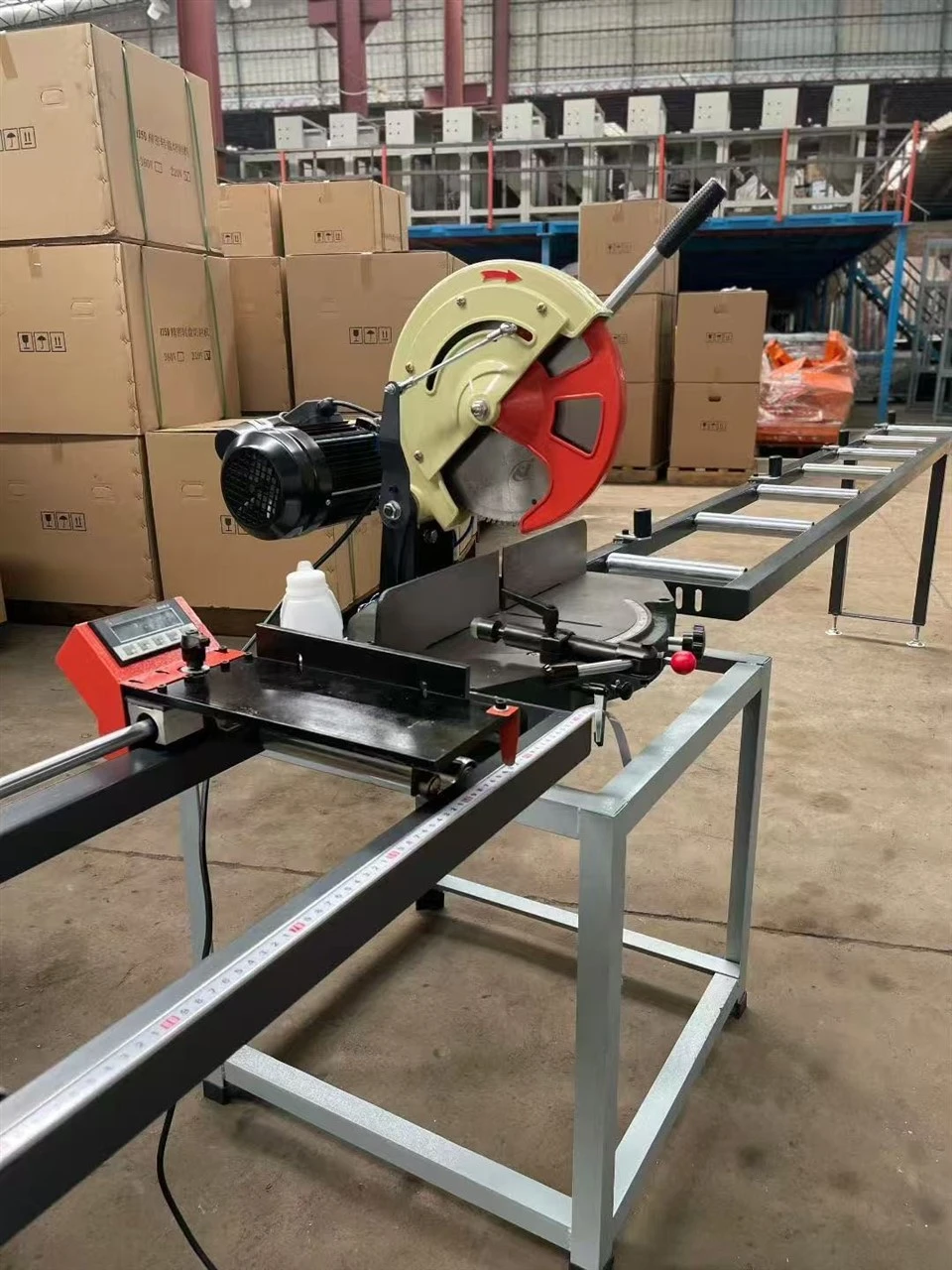

Material Handling Extensions
Customized roller conveyor support tables (available in 3m, 4m, or 6m lengths) equipped with manual flip-stops or digital length display positioning.
Quality Control & Verification Process
Before factory clearance, each machine must pass a documented 48-hour continuous testing protocol:
Turntable Angle Calibration
Verified via high-precision digital angle meters to ensure angular accuracy across all indexing stops.
Spindle Runout Testing
Dial indicator testing to guarantee radial and axial spindle runout is ≤ 0.02 mm.
Pneumatic Pressure Leakage Test
12-hour pressure retention check on all pneumatic cylinders and valves.
Trial Cut Assessment
Test cutting of typical architectural aluminum profiles to inspect dimensional accuracy, surface roughness, and burr formation under full-load operation.
Factory Strength & Services
4 Lines & 1,000+ Units Output: Equipped with 4 automated production lines delivering over 1,000 machines annually to reliably fulfill large-volume B2B orders.
10+ Years R&D Expertise: Over a decade of specialization in high-grade aluminum alloy and curtain wall processing machinery, backed by an advanced Computer Integrated Manufacturing System (CIMS) for cost-efficient production.
Precision Factory Layouts: Complimentary, custom workshop floor-plan designs and equipment configurations tailored exactly to your profile specifications to maximize floor space and prevent machinery waste.
1-Year Warranty & Logistics: Full 12-month factory guarantee (excluding wear parts) with rapid parts dispatch, complete technical documentation, and flexible global shipping terms (FOB, CIF, DDP).
Upstream Supply Chain Support: Free industry matching with verified raw-material and accessory suppliers to help seamlessly set up or scale your window and door manufacturing plant.
Packaging, Logistics & International Shipping
Sea-Worthy Export Packing
The machine undergoes anti-corrosion oil application, vacuum-sealed barrier film wrapping, and is packed into a heavy-duty, IPPC fumigation-free wooden crate bolted firmly to a steel pallet base.
Flexible Commercial Terms
We accept global logistical arrangements under FOB, CIF, CFR, and DDP terms, streamlining customs clearance for overseas buyers.
Technical Asset Package
Shipped complete with comprehensive English operational manuals, electrical circuit diagrams, pneumatic system schematics, a final factory quality inspection certificate, and a maintenance toolkit.
FAQ
Q: What is a Single Head Aluminium Cutter?
A:A Single Head Aluminium Cutter is a precision cutting machine designed to process aluminum profiles one cutting position at a time. It is widely used for manufacturing aluminum windows, doors, curtain walls, and customized aluminum products where flexibility and accuracy are essential.
Q: Who is a Single Head Aluminium Cutter best suited for?
A:Single Head Aluminium Cutters are ideal for small and medium-sized fabrication workshops, custom manufacturers, engineering contractors, repair companies, and businesses producing small batches or made-to-order products. They provide excellent flexibility while requiring a relatively low initial investment.
Q: What materials can the machine cut?
A:The machine is designed primarily for aluminum profiles, including standard architectural profiles, thermal break aluminum, curtain wall sections, decorative profiles, and industrial aluminum extrusions. Depending on the saw blade configuration, certain non-ferrous metal profiles may also be processed.
Q: Can the machine process thermal break aluminum profiles?
A:Yes. Our machines are designed to process thermal break aluminum profiles with stable clamping and precise cutting. Proper blade selection and cutting parameters help maintain clean cutting surfaces while protecting the thermal insulation section.
Q: What level of cutting accuracy can I expect?
A:Under normal operating conditions, the machine provides high cutting precision suitable for architectural aluminum fabrication. Stable mechanical construction and careful factory calibration help ensure accurate and repeatable cutting results.
Q: Is the machine easy to operate?
A:Yes. The operating controls are straightforward and designed for daily workshop use. After basic training, operators can quickly become familiar with machine operation, angle adjustment, and routine maintenance.
Q: Does the machine require a large installation area?
A:No. Single Head Aluminium Cutters feature a compact design that requires relatively little floor space. This makes them an excellent choice for workshops with limited production areas or businesses planning efficient space utilization.
Q: How often should the saw blade be replaced?
A:Saw blade replacement depends on production volume, profile material, and blade quality. Regular inspection and timely replacement or sharpening help maintain cutting quality, improve efficiency, and extend machine performance.
Q: What maintenance is recommended for daily operation?
A:Routine maintenance includes cleaning aluminum chips after use, checking lubrication points, inspecting pneumatic connections, verifying blade condition, and ensuring that moving parts remain properly adjusted. Preventive maintenance helps maximize machine lifespan and maintain consistent cutting accuracy.
Q: How long is the production and delivery time?
A:Production time depends on the selected model and customization requirements. After confirming your technical specifications, our sales team will provide an estimated manufacturing schedule and delivery plan to help you arrange your purchasing timeline.
