Product Introduction

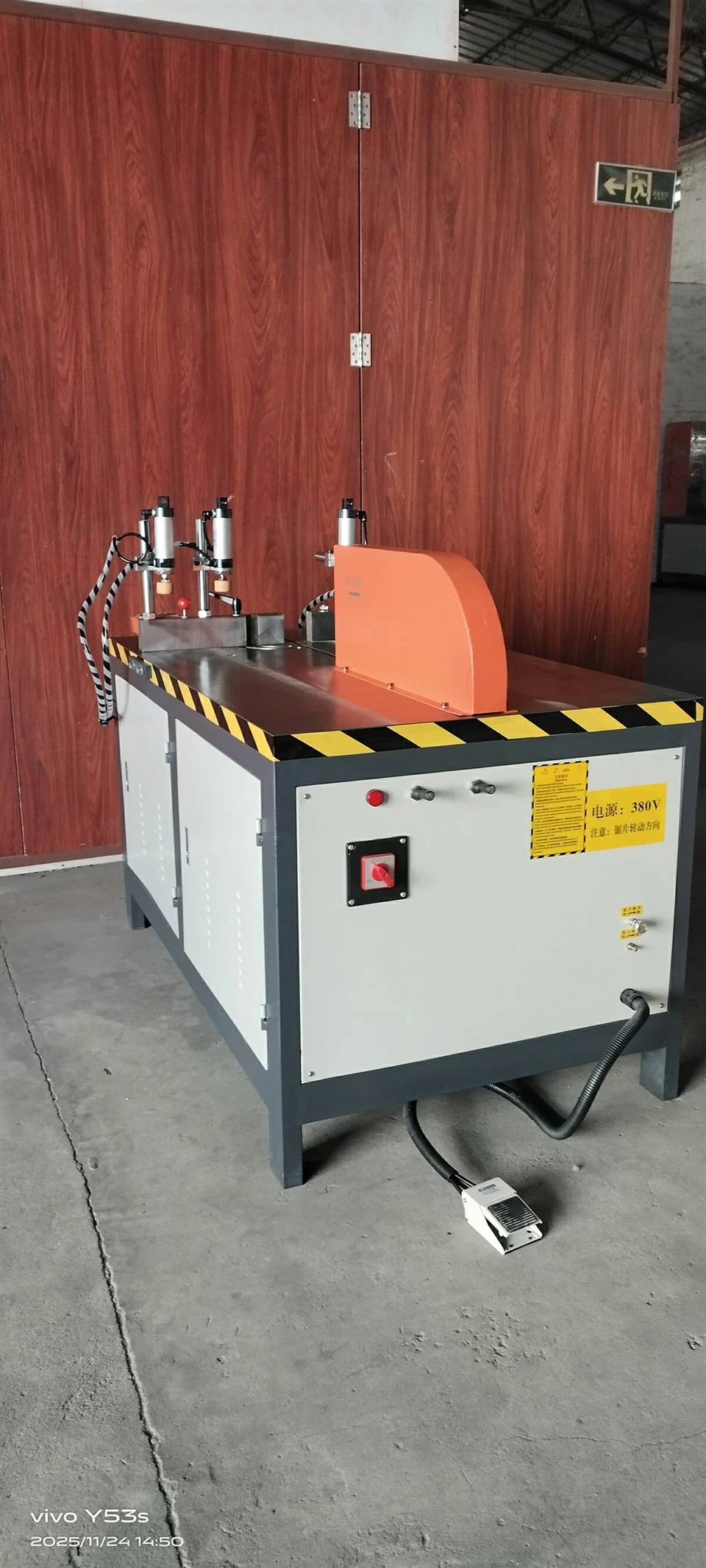

The Horizontal Linear Rail Sunroom Saw is a heavy-duty horizontal cutting center designed to eliminate profile sagging and deflection when processing large-section aluminum beams for sunrooms, pergolas, and architectural structures.
|
Input Voltage |
380V/50Hz |
|
Motor Power |
3.0kW |
|
Working Air Pressure |
0.5–0.8MPa |
|
Motor Speed |
3500r/min |
|
Cutting Capacity (H×W) |
210×430mm |
|
Saw Blade Specification |
600×30mm |
|
Machine Dimensions |
1480×870×1200mm |
|
Machine Weight |
450kg |
Product Features
Zero Material Deflection
The continuous horizontal machine bed fully supports extra-long structural profiles, completely eliminating the sagging and twisting common in vertical setups.
01
Ultra-Low Friction Feeding
Dual-track industrial linear guides provide smooth, effortless carriage movement with zero tracking play under heavy load capacities.
02
Single-Pass Deep Cutting
Over-sized 600mm premium carbide saw blades cut large box sections in a single stroke, leaving a smooth surface finish ready for immediate splicing.
03
Absolute Workpiece Lockdown
Independent vertical and horizontal pneumatic cylinders secure both sides of the cutting line, preventing material rotation and slippage.
04
Rapid Multi-Angle Transition
The adjustable angle positioning mechanism locks into targeted roof angles instantly, accelerating batch manufacturing for complex sunroom assemblies.
05
Customization Services
We modify each machine's structural bed to fit seamlessly into specialized architectural manufacturing lines:
Extended Cutting Bed Extensions: Scaling the horizontal linear guide frame up to 6,000mm, 7,000mm, or 8,000mm to accommodate seamless one-piece commercial sunroom beams.
Customized Compound Angle Fixtures: Engineering specialized pneumatic clamping jigs and backing fences to hold complex, multi-hollow asymmetrical extrusion profiles securely at sharp compound miter angles.
Upgraded Digital/CNC Packages: Upgrading standard manual adjustments to digital display readouts or full-axis closed-loop CNC positioning touchscreens with memory presets for rapid batch production.
All-Weather Dust and Chip Collection: Integration of high-vacuum, high-volume localized industrial chip extraction ports tailored to continuous, heavy-shaving manufacturing environments.
Factory Strength & Services
4 Lines & 1,000+ Units Output: Equipped with 4 automated production lines delivering over 1,000 machines annually to reliably fulfill large-volume B2B orders.
10+ Years R&D Expertise: Over a decade of specialization in high-grade aluminum alloy and curtain wall processing machinery, backed by an advanced Computer Integrated Manufacturing System (CIMS) for cost-efficient production.
Precision Factory Layouts: Complimentary, custom workshop floor-plan designs and equipment configurations tailored exactly to your profile specifications to maximize floor space and prevent machinery waste.
1-Year Warranty & Logistics: Full 12-month factory guarantee (excluding wear parts) with rapid parts dispatch, complete technical documentation, and flexible global shipping terms (FOB, CIF, DDP).
Upstream Supply Chain Support: Free industry matching with verified raw-material and accessory suppliers to help seamlessly set up or scale your window and door manufacturing plant.
Logistics, Packaging & Overseas Shipment Standards
To ensure your industrial cutting machinery arrives in pristine factory-calibrated condition without salt-spray corrosion or rail misalignment, we enforce strict heavy-freight export packaging:
Linear Rail Shielding & Anti-Rust Coating
All precision linear guide tracks, bearings, and exposed machined steel tables are coated in high-viscosity anti-corrosion grease and vacuum-sealed in VCI vapor-barrier film.
Reinforced Rigid Wooden Crating
The entire machine base is bolted down to a thick, fumigated ISPM-15 compliant timber skid or engineered steel framework to absorb heavy maritime handling vibration.
Safe Containerized Loading
Machine footprints are engineered to maximize space within standard 20GP or 40HQ ocean containers while ensuring accessible lifting points for overhead cranes or large forklifts.
FAQ
Q: Why is a horizontal saw configuration superior to a vertical saw for sunroom and pergola manufacturing?
A: Sunroom structures use heavy, thick-walled aluminum beams up to 6 or 8 meters long. In a vertical saw, these profiles stand at an angle, placing their weight on a small base area which causes the center of the profile to sag or twist under gravity. A horizontal bed supports the entire weight of the extrusion uniformly, ensuring the blade passes through a perfectly flat workpiece for a completely true, perpendicular cut.
Q: Can this machine handle the thick, multi-layer profiles used in insulated thermal break structures?
A: Yes. The 4.0 kW high-torque spindle motor combined with a 4.6mm thick, heavy-duty carbide saw blade provides clean cutting through both dense aluminum walls and interior polyamide thermal break strips without tearing the synthetic insulation barrier or binding during the cut cycle.
Q: What is the benefit of the 600mm blade upgrade option on this horizontal model?
A: Standard 450mm or 500mm blades do not have enough reach to cut through large sunroom box profiles or structural pergola pillars in a single pass. The 600mm blade delivers a deep cutting envelope, allowing you to slice through profiles up to 200mm high and 400mm wide smoothly without needing to flip or manually reposition the material.
Q: How are asymmetric or non-standard architectural extrusions kept stable on the cutting table?
A: The machine features a modular, adjustable pneumatic clamping system. Both the vertical and horizontal clamps can be adjusted along the T-slot frame to line up precisely with the structural webs of your specific profile. For highly complex custom extrusions, we can design custom vulcanized rubber jaw inserts based on your CAD files.
Q: What global brands are utilized for the machine's critical movement and electrical systems?
A: To ensure easy local maintenance and eliminate spare parts sourcing delays, our standard configuration uses global industrial brands: Precision Linear Rails (Taiwan HIWIN), Pneumatic Valves and Cylinders (SMC / Airtac), and Low-Voltage Electrical Controls (Schneider). Full components parts lists are supplied with your technical quotation.
Q: How is the machine set up after arrival, and do we need to perform complex on-site calibration?
A: Every saw undergoes a strict 48-hour continuous testing routine and laser alignment check before being packed. The machine ships as a single integrated unit. Once at your facility, you simply fork it into position, level the adjustable steel foot pads, connect your factory compressed air line, and hook up the electrical power supply. We provide a full video setup library and online video engineering support to assist your team.
